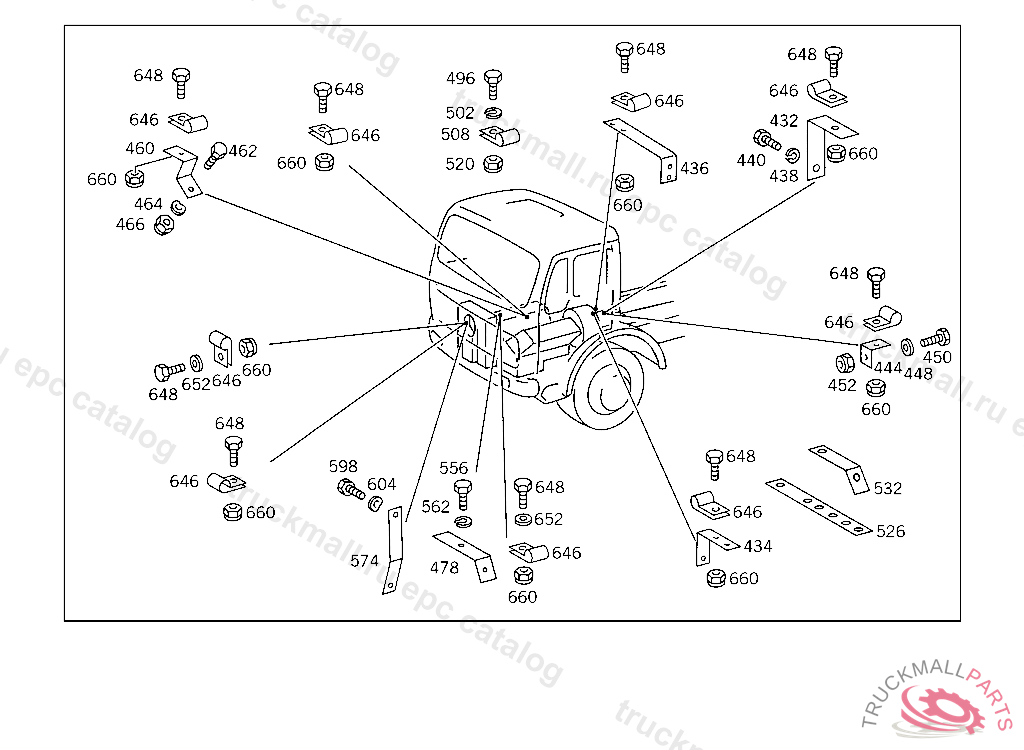

Поз.
Артикул
Описание
432
BRACKET COMPRESSED AIR LINE TO LEFT SIDE MEMBER
434
BRACKET OIL LINE TO TRANSMISSION CASE
436
BRACKET OIL LINE TO TRANSMISSION,5 360279
438
LOCK WASHER FITTING TO BRACKET
440
SCREW BRACKET TO TRANSMISSION,5 360279
440
SCREW BRACKET TO TRANSMISSION
444
ANGLE LINE MOUNTING
448
WASHER COMPRESSED AIR LINE TO BRACKET
448
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
450
SCREW , Replaced By: N304017008027
450
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
452
NUT , Replaced By: N913004008001
452
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
460
BRACKET LINE TO TRANSMISSION
462
SCREW LICENSE PLATE TO BRACKET
462
SCREW SHIFTING ROD TO JOINT
462
SCREW , Replaced By: N304017008021
462
SCREW , Replaced By: N304017006020
462
SCREW PIPE CLAMP
464
SPRING WASHER STEERING COLUMN BRACKET TO CAB
466
NUT PUMP TO BRACKET
466
NUT STRAP TO BRACKET
466
NUT , Replaced By: N910113010000
466
NUT , Replaced By: N913004006001
478
BRACKET OIL LINES TO ENGINE
496
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
496
SCREW , Replaced By: N304017008016
496
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
496
SCREW , Replaced By: N304017006016
496
SCREW COVER PLATE TO BRACKET
502
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
502
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
508
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
508
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
520
NUT , Replaced By: N913004006001
520
NUT PUMP TO BRACKET
526
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
532
BRACKET OIL LINES TO ENGINE
556
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
556
SCREW , Replaced By: N304017010028
562
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
574
BRACKET DELIVERY AND SUCTION LINES
598
SCREW PUMP TO BRACKET
598
SCREW , Replaced By: N304017006020
598
SCREW LICENSE PLATE TO BRACKET
604
SPRING WASHER LICENSE PLATE TO BRACKET
646
CLAMP , Replaced By: N916016018202
646
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
646
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
646
CLAMP LINE MOUNTING
646
CLAMP FEED LINE TO THERMOSTAT
648
SCREW CAB FLOOR COVERING M 6X25
648
SCREW PUMP TO BRACKET
648
SCREW , Replaced By: N304017006020
648
SCREW COVER PLATE TO BRACKET
648
SCREW LICENSE PLATE TO BRACKET
652
WASHER COMPRESSED AIR LINE TO BRACKET
652
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
652
WASHER ANTE-FREEZE DEVICE TO STRAP
660
NUT , Replaced By: N913004006001
660
NUT PUMP TO BRACKET
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
999
NUT
999
SECURING CLIP. CIRCLIP
999
BALL SOCKET ROD TO BALL PIVOT
999
CONNECTION FITTING , Replaced By: A0049971772
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
HOSE , Replaced By: A6175014982
999
HOSE , Replaced By: A6175014982
999
PIPE ELBOW , Replaced By: A6555010756
999
PIPE ELBOW , Replaced By: A6205010556
999
HOSE HEATING PIPE TO RADIATOR
999
AIR BAFFLE RADIATOR, NOT USED
999
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
999
HOSE FROM RADIATOR TO WATER PUMP
999
LINE HEATING AND BREATHING
999
LINE , Replaced By: A0005516156
999
PIPE , Replaced By: A6172704996
999
BRACKET OIL LINES TO ENGINE,5 501369
999
BRACKET OIL LINES TO ENGINE,5 501369
999
CONNECTOR AT WATER PUMP
999
BRACKET OIL LINES TO ENGINE
999
SHIM OIL COOLER TO BRACKET
999
SHIM OIL COOLER TO BRACKET
999
RADIATOR
999
BRACKET OIL COOLER TO RADIATOR
999
PIPE FROM OIL FILTER TO TRANSMISSION
999
PIPE RETURN, FROM OIL TEMPERATURE REGULATOR TO OIL FILTER
999
PIPE , Replaced By: A6152701496
999
PIPE , Replaced By: A6152701396
999
LINE RETURN, OIL COOLER
999
LINE FEED, OIL COOLER
999
BALL SOCKET ROD TO BALL PIVOT
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 5 141771, Replaced By: A4010100940
999
FITTING OIL FILTER
999
PANELLING CIRCULATING AIR
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO TRANSMISSION
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL LINE TO OIL COOLER
999
PIPE , Replaced By: A0004291601
999
BRACKET GOVERNOR
999
PIPE , Replaced By: A0004291601
999
BRACKET OIL FILTER
999
BRACKET CABLE HARNESS TO LEAK LINE
999
CONNECTOR , Replaced By: A6205010223
999
SUPPORT RADIATOR MOUNTING,4 428845
999
SUPPORT RADIATOR
999
SHIM RUBBER MOUNTING TO BRACKET
999
BRACKET OIL LINE TO CRANKCASE
999
BRACKET OIL LINES TO ENGINE
999
BRACKET , Replaced By: A3832710140
999
HOSE , Replaced By: A3819970682
999
FAN SHROUD , 0-199 FROM CHASSIS 4 428845, 200-599 FROM CHASSIS 4 424216
999
LINE , Replaced By: A3815001472
999
BRACKET , Replaced By: A3604293140
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET , Replaced By: A3812700241
999
FILTER OIL FILTER
999
CLAMP FAN SHROUD TO FAN RING
999
BOOT FAN SHROUD TO FAN RING
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
FITTING , Replaced By: A0029906171
999
SCREW PLUG , Replaced By: N007604014101
999
RADIATOR OIL, NOT USED
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
CLAMP , Replaced By: N916017011000
999
RADIATOR ,4 706542
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
LINE , Replaced By: A0005516456
