Поз.
Артикул
Описание
1

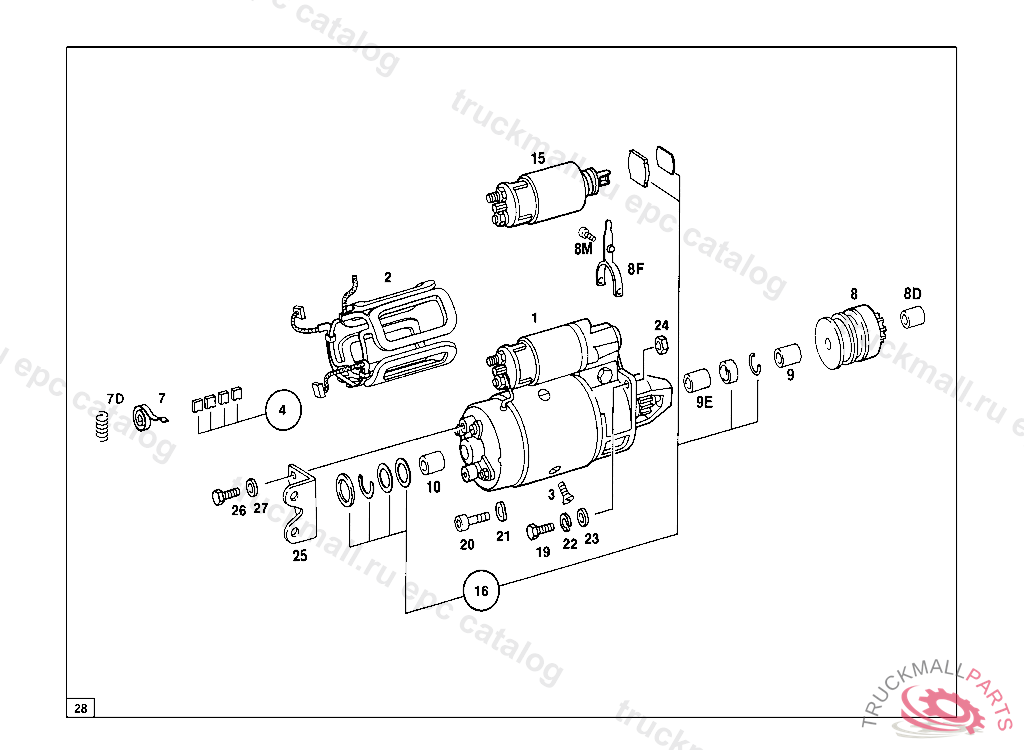

STARTING MOTOR12 V, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
2
EXCITER COIL , Replaced By: A0001516555
2
EXCITER COIL , Replaced By: A0001514755
2
EXCITER COILTO 002 151 64 01,002 151 69 01, 940 10/50,20/60 211713 940 12/52,22/62 008163
3
SCREWTO 343 151 71 01
4
CARBON BRUSH SETTO 002 151 64 01,002 151 69 01
4
CARBON BRUSH SETTO 002 151 30 01/002 151 26 01
7
SPRINGTO 002 151 30 01/002 151 26 01
8
PINION *** TO 002 151 64 01.002 151 69 01
8
PINION , Replaced By: A0001519613
8
PINIONTO 001 151 64 01,002 151 26 01
9
BUSHING DRIVE END BEARING TO 003 151 07 01,001 151 64 01
10
BUSHINGTO 004 151 58 01/003 151 87 01
10
BUSHING COMMUTATOR END TO 002 151 26 01/001 151 64 01
15
SOLENOID SWITCHTO 001 151 64 01
16
REPAIR KIT ARMATURE MOUNTING
25
ANGLE
26
SCREW PUMP TO BRACKET
26
SCREW , Replaced By: N304017006016
27
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
27
WASHER COMPRESSED AIR LINE TO BRACKET
28
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SPACER ARMATURE MOUNTING TO 001 151 64 01
999
CONTROL LEVERTO 001 151 96 01
999
SPRINGTO 002 151 64 01/002 151 65 01
999
BUSHINGTO 004 151 58 01
999
CARBON BRUSH SET , Replaced By: A0001515314
999
BUSHING , Replaced By: A0001518150
999
BUSHING INTERMEDIATE BEARING TO 002 151 64 01,002 151 69 01, 940 10/50,20/60 211713 940 12/52,22/62 008163
999
PINION , Replaced By: A0001518313
999
BUSHING STARTER PINION
999
SOLENOID SWITCH , Replaced By: A0001523710
999
CARBON BRUSH SET , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0001546314
999
PULLEY
999
FAN. PULLEY , Replaced By: A0001552815
999
FAN , Replaced By: A0001556618
999
PULLEY , Replaced By: A0001557115
999
FAN
999
PULLEY
999
CONNECTING INSULATOR. INSULATOR , Replaced By: A0001590606
999
GLOW PLUG , Replaced By: A0001596101
999
GLOW PLUG , Replaced By: A0001596001
999
GLOW PLUG , Replaced By: A0001596101
999
GLOW PLUG , Replaced By: A0001596001
999
SCREW , Replaced By: A0009909130
999
SCREWTO 004 151 58 01
999
STARTING MOTOR , Replaced By: A0021516401
999
PULLEY
999
STARTING MOTOR , Replaced By: A0021516401
999
ALTERNATOR , Replaced By: A0031546702
999
NUT , Replaced By: N913017005000
999
GROUND CABLE , Replaced By: A6151500232
999
GROUND CABLE , Replaced By: A6151500232
999
GROUND CABLE , Replaced By: A6151500232
999
GROUND CABLE , Replaced By: A6211500332
999
CONTACT RAIL , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 912 10/50,20/60 381859 912 12/52,22/62 041435 913 10/50,20/60 318135 913 12/52,22/62 008829 917 088976 919 002012 936 000214 937 016179 938 005938 939 005169 942 000051, Replaced By: A6151590120
999
SCREW , Replaced By: A0069909101
999
NUT
