Поз.
Артикул
Описание
1

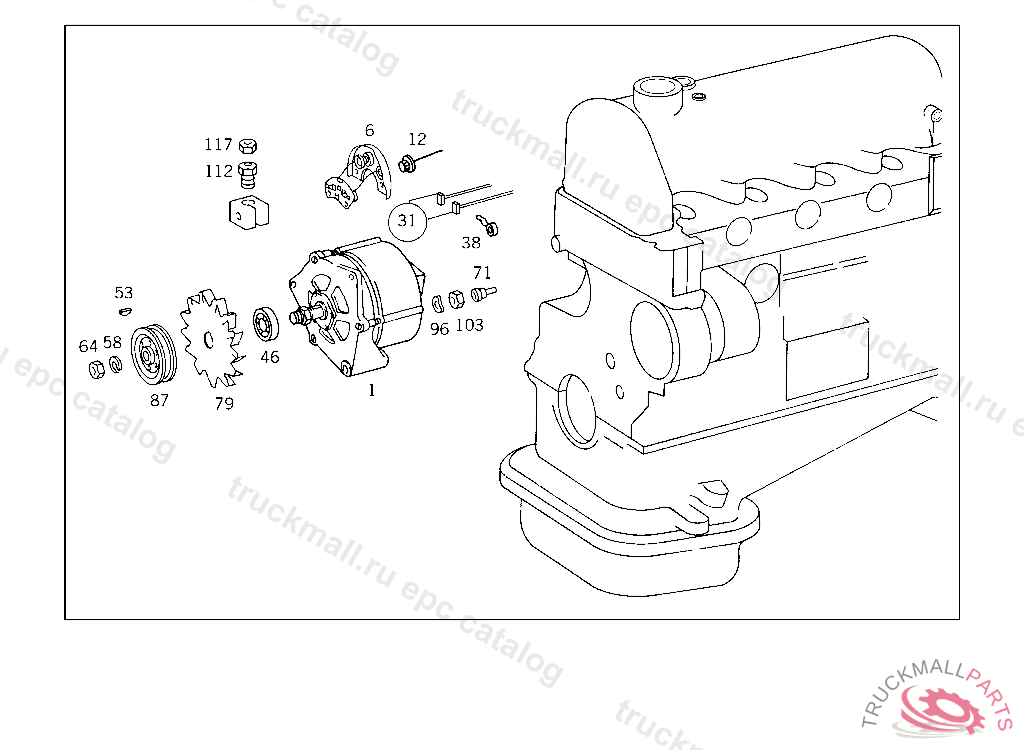

ALTERNATOR
6
RECTIFIER
6
RECTIFIER
12
DIODE , Replaced By: A0015481518
12
DIODE , Replaced By: A0005485018
12
DIODE , Replaced By: A0015480018
12
DIODE
12
DIODE
12
DIODE POS.
31
CARBON BRUSH SET
38
SPRING
38
SPRING , Replaced By: A0001541393
46
GROOVED BALL BEARING , TO 003 154 67 02 TO 004 154 18 02
53
WOODRUFF KEY
58
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
64
NUT FITTING TO CAB FLOOR, NOT USED
71
BOOTTO 003 154 39 02
79
FANTO 007 154 60 02
79
FAN , Replaced By: A0001556318
79
FAN , Replaced By: A0001555618
87
PULLEY , Replaced By: A0001557315
87
PULLEY , Replaced By: A0001554415
87
PULLEY , Replaced By: A0001557315
87
PULLEY
96
SPRING WASHER ALTERNATOR CONNECTION D+
103
NUT , Replaced By: N304032005005
103
NUT IN CASE OF SUBSEQUENT INSTALLATION
112
NUT
117
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREWM 8X40
999
REPAIR KIT
999
FAN , Replaced By: A0001556618
999
FAN. PULLEY , Replaced By: A0001552815
