Поз.
Артикул
Описание

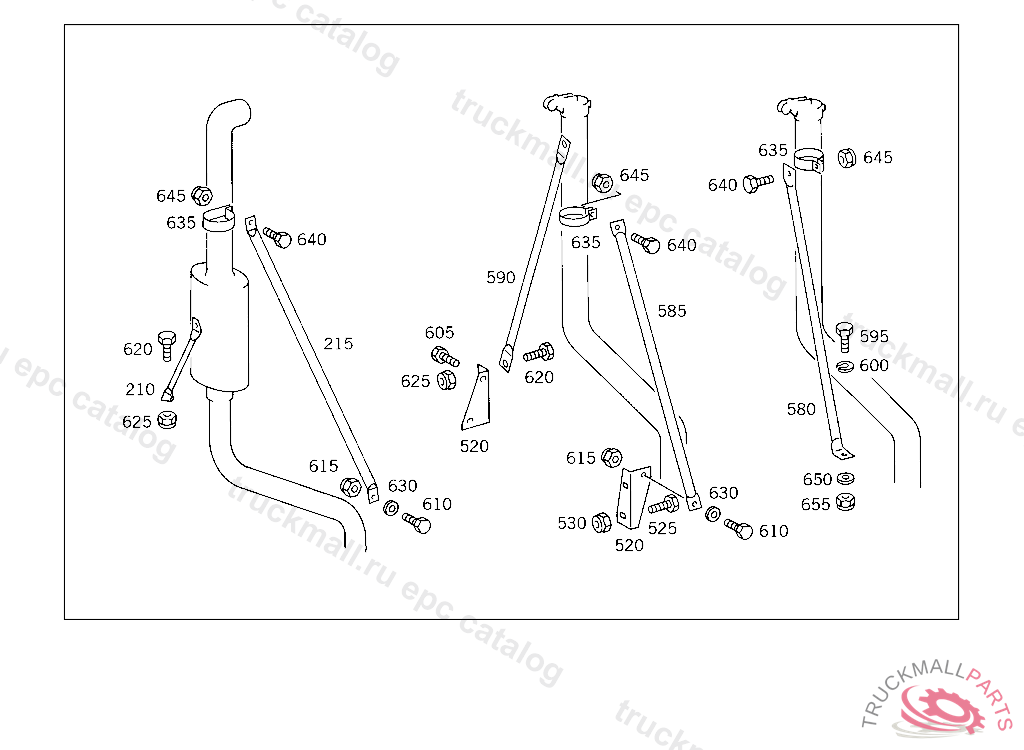

210
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
210
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
215
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
520
BRACKET BOTTOM
520
BRACKET EXHAUST PIPE TO FENDER
525
SCREW END PIECE TO EXHAUST PIPE M 10X25
530
NUT STRAP TO BRACKET
530
NUT , Replaced By: N910113010000
580
BRACKET STRUT
580
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
585
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
590
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
595
SCREW , Replaced By: N304017008018
595
SCREW SUPPORT TO CROSS MEMBER M 10X28
595
SCREW SUPPORT TO FENDER
600
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
600
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
605
SCREW , Replaced By: N304017008018
605
SCREW SUPPORT TO FENDER
610
SCREW , Replaced By: N304017010002
610
SCREW BRACKET TO SIDE MEMBER
615
NUT , Replaced By: N910113010000
615
NUT STRAP TO BRACKET
620
SCREW , Replaced By: N304017008021
620
SCREW PIPE CLAMP
625
NUT , Replaced By: N913004008001
625
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
630
WASHER , Replaced By: N000125010532
630
WASHER RADIATOR TO RUBBER MOUNTING
635
CLAMP , Replaced By: A6454921140
635
CLAMP , Replaced By: N071555090502
635
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
635
CLAMP EXHAUST PIPE TO BRACKET
635
CLAMP EXHAUST PIPE TO BRACKET
640
SCREW END PIECE TO EXHAUST PIPE M 10X25
640
SCREW , Replaced By: N304017010002
640
SCREW BRACKET TO SIDE MEMBER
645
NUT , Replaced By: N910113010000
645
NUT STRAP TO BRACKET
650
WASHER BRACKET TO FENDER BRACKET
655
NUT , Replaced By: N913004008001
655
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
PROTECTIVE PLATE FUEL TANK
999
REAR EXHAUST PIPE
999
END PIECE
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE ,5 193595
999
END PIECE
999
END PIECE REAR EXHAUST PIPE,5 298310
999
EXHAUST MUFFLER
999
BRACKET FRONT EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE SHORT,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE , Replaced By: A6524926914
999
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE
999
BRACKET TAIL PIPE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
BRACKET , Replaced By: A6524920741
999
REAR EXHAUST PIPE (TAIL PIPE)
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
EXHAUST PIPE FRONT,REAR PART,K 035522
999
END PIECE LEFT
999
END PIECE (TAIL PIPE)
999
END PIECE RIGHT
999
END PIECE TAIL PIPE,FRONT,K 027551
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),K 035523
999
PROTECTIVE PLATE , NOT USED
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE ,5 765949
999
END PIECE
999
END PIECE
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE)
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
END PIECE (TAIL PIPE)
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
END PIECE
999
BRACKET TAIL PIPE
999
BRACKET PROTECTIVE PLATE TO SUPPORT
999
SCREW , Replaced By: N304017010002
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
NUT , Replaced By: N910113010000
