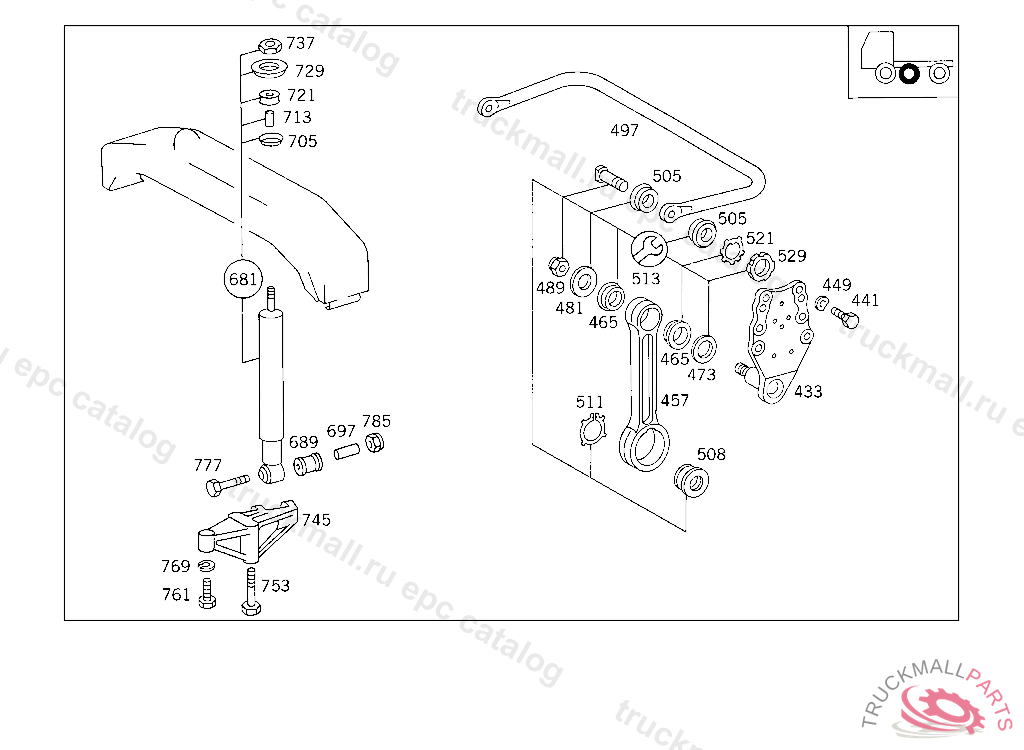

Поз.
Артикул
Описание
433
CONSOLE , Replaced By: A3933261163, +001N000961016081
441
SCREW , Replaced By: N308676016020
441
SCREW CONSOLE TO FRAME
449
SPRING WASHER BRACKET TO TIMING CASE
457
SHACKLE STABILIZER,5 904660
465
BUSHING SHACKLE TO BEARING BRACKET,5 904660
473
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
481
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
489
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
489
NUT COMBINATION CYLINDER TO BEARING BRACKET
497
TORSION BAR ,5 904660
505
BUSHING TORSION BAR TO BEARING BRACKET,5 904660
508
RUBBER MOUNTING SHACKLE TO TORSION BAR,5 904660
511
LOCK RING SHACKLE TO TORSION BAR,5 904660
513
REPAIR KIT TORSION BAR MOUNTING,5 904660
521
LOCK PLATE TORSION BAR TO BEARING BRACKET,5 904660
529
NUT TORSION BAR TO BEARING BRACKET,5 904660
681
SHOCK ABSORBER (PARTS KIT)
681
SHOCK ABSORBER , Replaced By: A3853260400
689
RUBBER MOUNTING004 326 01 00
697
SPACER TUBE
705
RETAINER SHOCK ABSORBER,BOTTOM
713
SPACER TUBE
721
RUBBER BUFFER SHOCK ABSORBER,BOTTOM
729
RETAINER SHOCK ABSORBER,BOTTOM
737
NUT COMBINATION CYLINDER TO BEARING BRACKET
737
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
745
BRACKET SHOCK ABSORBER AND STABILIZER,RIGHT
745
BRACKET SHOCK ABSORBER AND STABILIZER,LEFT
753
SCREW APPARATUS SUPPORT TO FRAME,REAR
761
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
769
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
777
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
785
NUT , Replaced By: N913004020003
785
NUT CROSS MEMBER TO REINFORCEMENT
