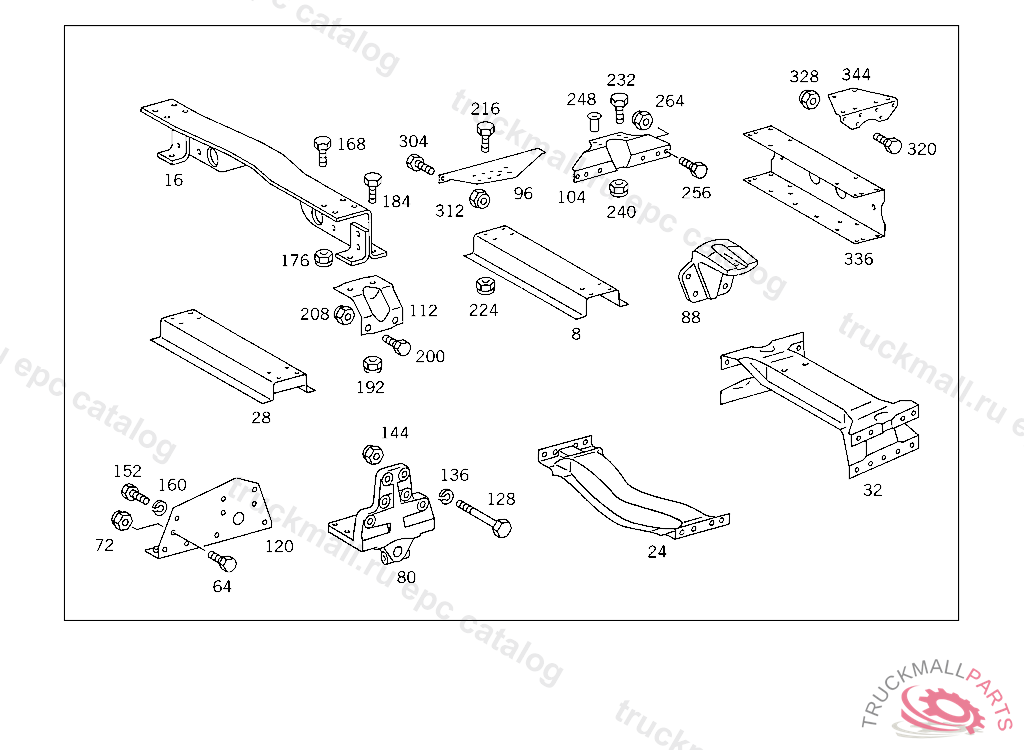

Поз.
Артикул
Описание
8
CROSS MEMBER BATTERY/APPARATUS SUPPORT NO.3
16
CROSS MEMBER TRANSFER CASE NO.3A
24
CROSS MEMBER TRANSMISSION MOUNTING
28
CROSS MEMBER FRONT SPRING REAR BRACKET
32
CROSS MEMBER IN FRAME BEND
64
SCREW , Replaced By: N308676012012
64
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
72
NUT SUPPORT TO SIDE MEMBER
80
FRONT SPRING BRACKET REAR
88
HELPER SPRING BRACKET FRONT
96
ANGLE TOP LEFT
96
ANGLE TOP RIGHT
104
ANGLE BOTTOM LEFT
104
ANGLE BOTTOM RIGHT,5 297102
104
ANGLE BOTTOM LEFT,5 297102
104
ANGLE BOTTOM RIGHT
112
ANGLE TRANSFER CASE TO FRAME
120
CONSOLE LEFT AND RIGHT
120
CONSOLE RIGHT
120
CONSOLE LEFT
128
SCREW STEERING SUPPORT TO FRAME M 14X50
128
SCREW LEFT AND RIGHT CONSOLES TO FRAME M 14X60
128
SCREW BRACKET TO CAB CONSOLE,K 035197
128
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
128
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
128
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
136
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
144
NUT , Replaced By: N910113014001
144
NUT , Replaced By: N910113014000
144
NUT STEERING SUPPORT TO FRAME
144
NUT BRACKET TO SIDE MEMBER
152
SCREW BRACKET TO CAB CONSOLE,K 035197
160
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
168
SCREW STRUT TO CROSS MEMBER
176
HEXAGON NUT
176
NUT , Replaced By: N910113010002
184
SCREW , Replaced By: N308676012012
184
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
192
NUT SUPPORT TO SIDE MEMBER
200
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
200
SCREW , Replaced By: N308676014020
208
NUT , Replaced By: N910113014001
208
NUT BRACKET TO SIDE MEMBER
216
SCREW , Replaced By: N304017010043
216
SCREW BRACKET TO CONSOLE
224
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
232
SCREW , Replaced By: N308676012012
232
SCREW , Replaced By: N308676012012
232
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
240
NUT , Replaced By: N910113012003
240
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
240
NUT SUPPORT TO SIDE MEMBER
248
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
256
SCREW , Replaced By: N308676012012
256
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
264
NUT , Replaced By: N910113012003
264
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
304
SCREW , Replaced By: A9429901304
304
SCREW APPARATUS SUPPORT TO FRAME
312
NUT , Replaced By: N910113014000
312
NUT STEERING SUPPORT TO FRAME
320
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
320
SCREW BEARING BRACKET TO SIDE MEMBER
328
NUT BRACKET TO SIDE MEMBER
328
NUT COMBINATION CYLINDER TO BEARING BRACKET
328
NUT , Replaced By: N910113014001
328
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
336
CROSS MEMBER
344
GUSSET PLATE (REAR CROSS MEMBER)
999
CROSS MEMBER
999
HELPER SPRING BRACKET , Replaced By: A6843250017
999
CROSS MEMBER , Replaced By: A6253100127
999
FRONT SPRING BRACKET REAR
999
FRONT SPRING BRACKET REAR
