Поз.
Артикул
Описание

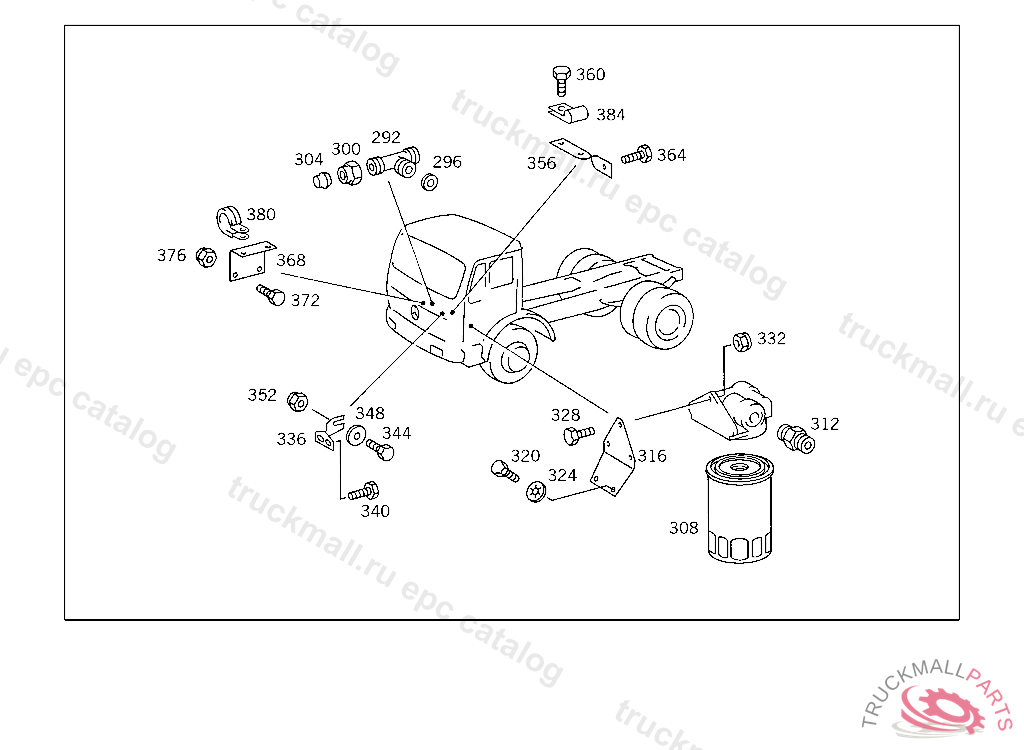

292
FITTING BETWEEN THE LINES
296
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
300
NUT LINE CONNECTION
300
UNION NUT LINE CONNECTION, Replaced By: N000000006243
304
GLAND , Replaced By: A0019901267
304
SEAL CONE LINE CONNECTION
308
GEAR OIL FILTER (OIL FILTER)
308
FILTER , Replaced By: A3762700498
308
FILTER (OIL FILTER), Replaced By: A0002773295
312
FITTING OIL FILTER
316
BRACKET OIL FILTER
320
SCREW , Replaced By: A0039904101
320
SCREW BRACKET TO TRANSMISSION, TO BE ADAPTED DURING ASSEMBLY
324
CONICAL SPRING WASHER BATTERY SUPPORT TO FRAME
328
SCREW OIL FILTER TO BRACKET
332
NUT , Replaced By: N913004008001
332
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
336
BRACKET PIPE ELBOW
340
SCREW PIPE ELBOW TO BRACKET M8X12
340
SCREW , Replaced By: N910105008013
340
SCREW SPEED SENSOR TO REAR AXLE
344
SCREW PIPE BEND TO BRACKET
348
WASHER BRACKET TO LEFT SIDE MEMBER
348
WASHER , Replaced By: N009021008213
352
NUT , Replaced By: N913004008001
352
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
356
BRACKET OIL LINES
360
SCREW SUPPORT TO FENDER
360
SCREW , Replaced By: N304017008018
364
SCREW , Replaced By: N304017008021
364
SCREW PIPE CLAMP
368
BRACKET OIL LINES
372
SCREW COVER PLATE TO BRACKET
372
SCREW BRACKET ON LOAD SENSOR
376
NUT PUMP TO BRACKET
376
NUT , Replaced By: N913004006001
380
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
380
CLAMP DELIVERY AND SUCTION LINES TO FRAME
384
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
384
CLAMP , Replaced By: N916016018202
999
THERMOSTAT OIL COOLER
999
RADIATORBEHR,5 127465
999
RADIATOR
