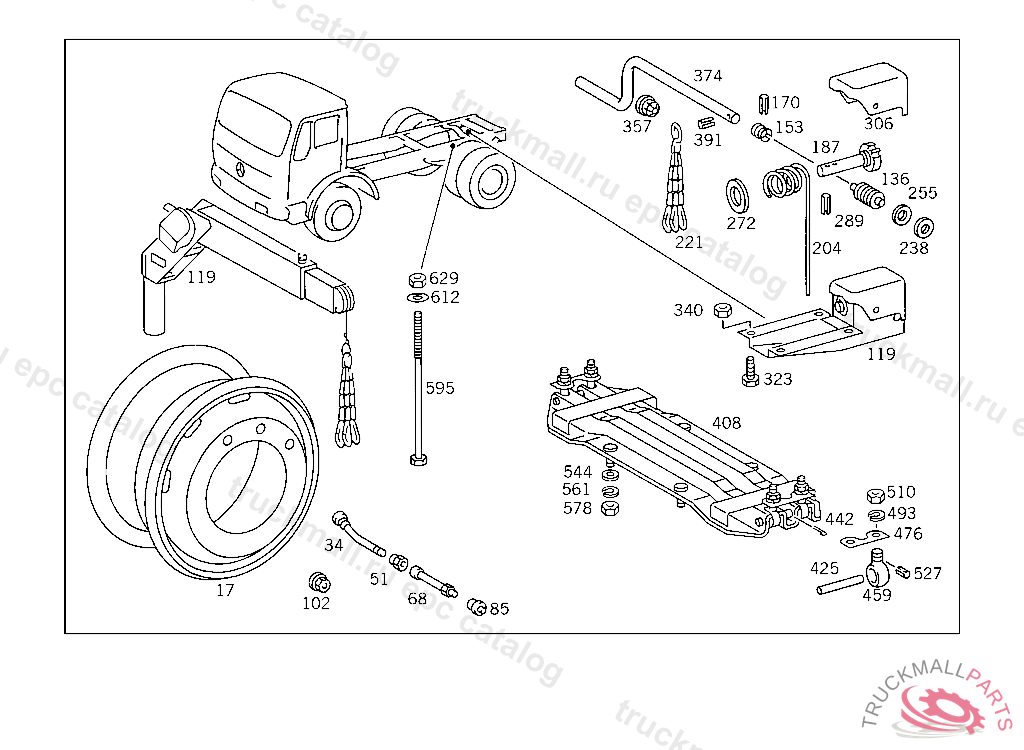

Поз.
Артикул
Описание
17
RIM6.75-22.5
17
RIM7.50X22.50
17
DISC WHEEL6.75-22.5
17
RIM6.75-22.5
17
DISC WHEEL7.50X22.50
17
RIM7.50X22.50
17
DISC WHEEL , Replaced By: A0004017305
17
DISC WHEEL , Replaced By: A0004017205
17
RIM , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 5 921387, Replaced By: A0004014602
17
RIM , Replaced By: A0004002802
34
VALVE , Replaced By: A0004017113
34
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0004013213
51
NUT VALVE TO DISC WHEEL
68
VALVE EXTENSION
68
VALVE EXTENSION
85
VALVE CAP
102
NUT. WHEEL NUT DISC WHEELS TO FRONT AND REAR AXLES
102
WHEEL NUT , Replaced By: A0004010672
102
WHEEL NUT , Replaced By: A0004010672
119
SPARE WHEEL HOIST
136
WORM
136
WORM ,5 127459, Replaced By: A6204030085, +001A6204030683
153
BUSHING
170
CLAMPING SLEEVE CRANK TO BUSHING
187
STOP GEAR SPARE WHEEL HOIST
187
STOP GEAR ,5 127459, Replaced By: A6204030483, +001A6204030085, +001A6179900540
204
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
204
WIRE CABLE
238
WASHER WORM AND SHAFT TO BRACKET,5 127459
238
WASHER WORM AND RATCHET WHEEL TO BRACKET
255
DISC SPRING WORM AND SHAFT TO BRACKET
272
WASHER WORM AND SHAFT TO BRACKET
289
CLAMPING PIN BRACKET TO SUPPORT
289
CLAMPING SLEEVE , Replaced By: N308752008000
306
COVER PLATE SPARE WHEEL HOIST
323
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
340
NUT STRAP TO BRACKET
340
NUT , Replaced By: N910113010000
357
BUSHING CRANK
374
CRANK SPARE WHEEL HOIST
391
CLAMPING SLEEVE CRANK TO BUSHING
408
BRACKET SPARE WHEEL MOUNTING,K 058473
425
PIN AT BRACKET
442
COTTER PINROCKINGER TYP 260 G140
459
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
459
SCREW , Replaced By: A6519900023
476
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
493
LOCK WASHERROCKINGER TYP 59 G140,59 G150
510
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
510
NUT , Replaced By: N308673016001
527
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
544
WASHER SPARE WHEEL TO BRACKET
561
LOCK WASHER SPARE WHEEL TO BRACKET
578
NUT REAR SPRING TO REAR AXLE
578
NUT , Replaced By: N308674020000
578
NUT , Replaced By: N308673020002
595
SCREW , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3529900802
595
SCREW SPARE WHEEL TO CROSS MEMBER
612
SHIM SPARE WHEEL TO CROSS MEMBER
629
NUT STRAP TO SUPPORT
