Mercedes N000931008136 - БОЛТ М8

1422 F,1425 F,1428 F 1429 F 616.065

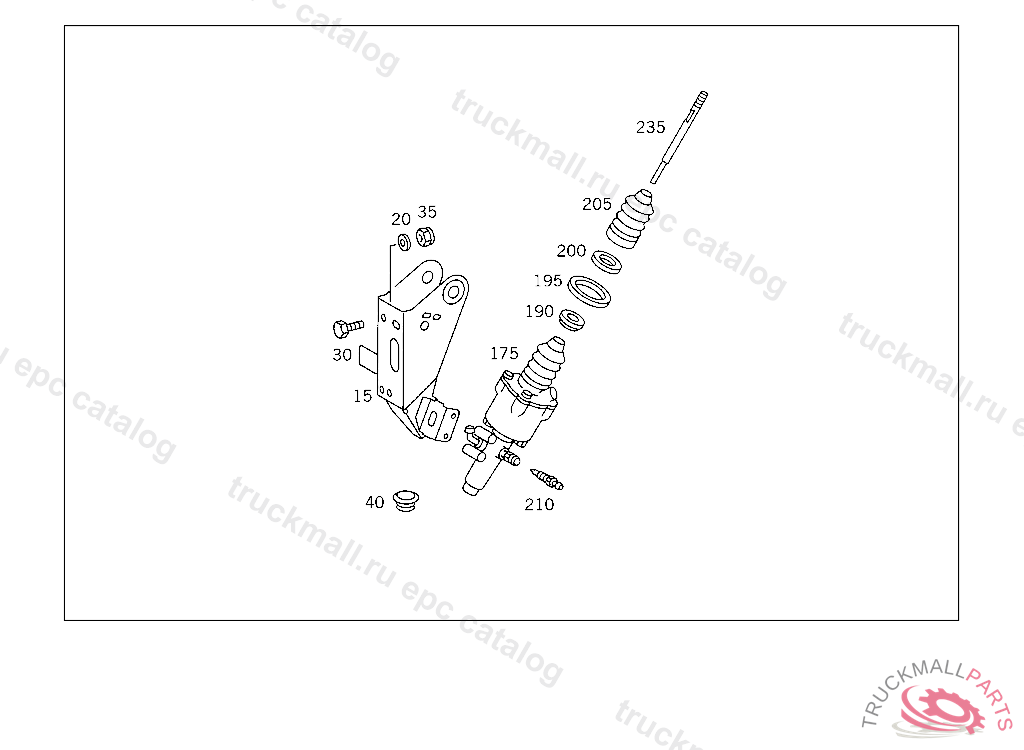

42 BRAKES - 001 PEDAL ASSEMBLY IL.2

Поз.
Артикул
Описание
15
A3812901819
BEARING BRACKET PEDAL BEARING, TO BE ADAPTED DURING ASSEMBLY
20
N000125008418
WASHER , Replaced By: N000125008443
20
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
30
N000931008136
SCREW BEARING BRACKET TO CAB M 8X30
35
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
N913004008004
NUT , Replaced By: N913004008001
40
A6179970081
GROMMET FIRE WALL,LEFT,IN FRONT LEGROOM,5 2380255 301948
175
A0002959506
MASTER CYLINDER CLUTCH
190
A0039979840
SEAL RING
195
A0039979940
SEAL RING
200
A0049970040
SEAL RING
205
A0002953983
BOOT
210
A3075530107
VALVE CLUTCH SLAVE CYLINDER
235
A3812950333
ROD MASTER CYLINDER TO PEDAL ASSEMBLY
999
A3852920073
LOCK , Replaced By: A6732920073
