Поз.
Артикул
Описание

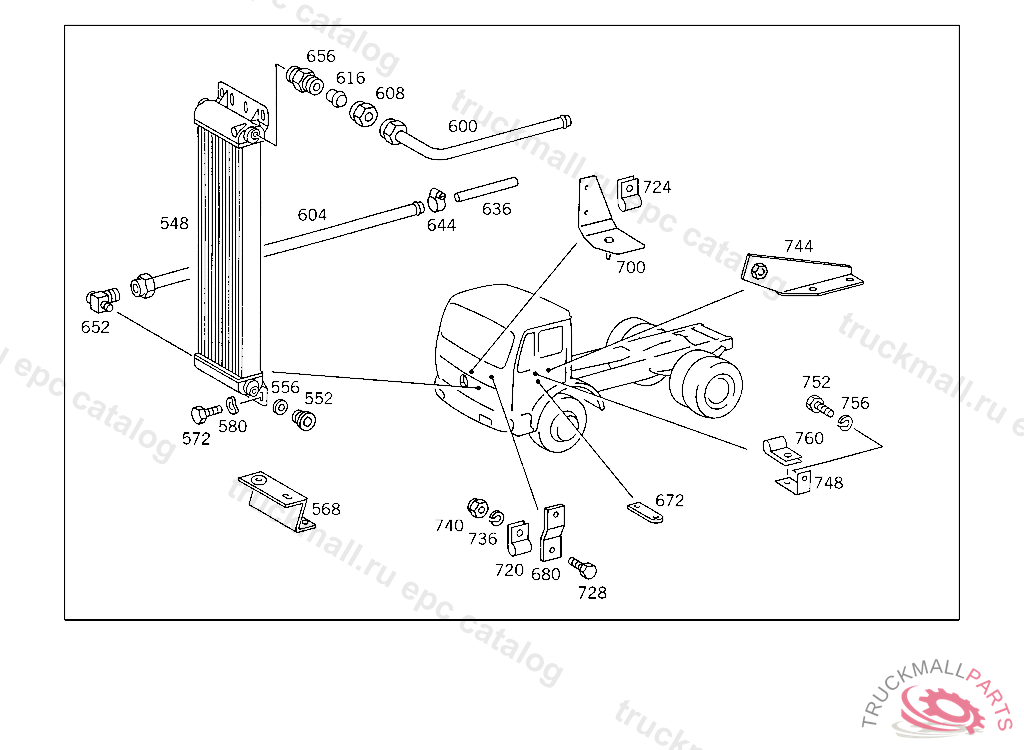

548
RADIATOR OIL COOLER
552
SCREW PLUGTO 000 553 03 05,000 553 18 05,
552
SCREW PLUG , Replaced By: N000908014009
556
SEAL RING
568
BRACKET OIL COOLER TO RADIATOR
572
SCREW PUMP TO BRACKET
572
SCREW , Replaced By: N304017006016
580
SPRING WASHER LICENSE PLATE TO BRACKET
600
PIPE FROM HOSE LINE TO OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
600
OIL PIPE , Replaced By: A3952571466
604
OIL PIPE , Replaced By: A3952571466
604
PIPE FROM HOSE LINE TO OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
608
NUT. UNION NUT LINE CONNECTION
616
CUTTING RING. GLAND LINE CONNECTION
636
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
636
HOSE FROM OIL COOLER TO TRANSMISSION
644
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
644
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
644
CLAMP , Replaced By: N000000000667
652
ELBOW FITTING SUCTION LINE TO OIL PUMP
656
FITTING OIL LINE TO RADIATOR
672
CLAMP OIL LINE TO CRANKCASE
672
BRACKET , Replaced By: A4064920143
680
BRACKET LINE TO TRANSMISSION
700
BRACKET BRACKET TO RADIATOR
720
CLAMP , Replaced By: N000000001045
720
CLAMP , Replaced By: N916016010211
720
CLAMP LINE MOUNTING
720
CLAMP CABLE HARNESS MOUNTING
724
CLAMP LINE MOUNTING
728
SCREW COVER PLATE TO BRACKET
728
SCREW LICENSE PLATE TO BRACKET
728
SCREW PIPE CLAMP
728
SCREW BRACKET TO TRANSMISSION,5 360279
728
SCREW PUMP TO BRACKET
728
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
728
SCREW COVER PLATE TO COVER PLATE M 6 X 12
728
SCREW , Replaced By: N304017006020
728
SCREW , Replaced By: N304017008021
728
SCREW , Replaced By: N304017006016
728
SCREW , Replaced By: N304017006018
736
LOCK WASHER FITTING TO BRACKET
736
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
736
WASHER RADIATOR TO RUBBER MOUNTING
740
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
740
NUT PUMP TO BRACKET
740
NUT STRAP TO BRACKET
740
NUT , Replaced By: N913004008001
740
NUT , Replaced By: N913004006001
740
NUT , Replaced By: N910113010000
744
BRACKET DELIVERY AND RETURN LINES,5 529813
744
BRACKET OIL LINES
748
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
748
BRACKET LINE MOUNTING
752
SCREW , Replaced By: N000933016082
752
SCREW PIPE CLAMP
752
SCREW BRACKET TO ENGINE
752
SCREW , Replaced By: N304017008021
756
LOCK WASHERROCKINGER TYP 59 G140,59 G150
760
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
THERMOSTAT OIL COOLER
999
DRAIN PIPE EXPANSION TANK
999
GASKET O.D., 37 MM
999
RADIATOR CAP
999
CLAMP , UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
999
SCREW BRACKET TO TRANSMISSION,5 360280
999
HOSE OVERFLOW
999
PIPE SUCTION LINE 1360 MM
999
BRACKET GOVERNOR,5 360280
999
BRACKET EXPANSION TANK
999
BRACKET EXPANSION TANK
999
TANK (EXPANSION TANK)
999
BRACKET OIL COOLER TO RADIATOR
999
FITTING OIL LINE TO OIL COOLER
999
THREADED CONNECTION SUCTION LINE TO OIL PUMP
999
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
999
FITTING SUCTION LINE TO OIL PUMP
999
FITTING OIL TEMPERATURE REGULATOR
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SEAL RING OIL LINE TO OIL COOLER
999
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
999
SCREW PLUGROCKINGER,TYP 59 U150
999
UNION NUT OIL LINE
999
SCREW CONNECTION SUCTION LINE TO OIL PUMP, Replaced By: N000000006460
