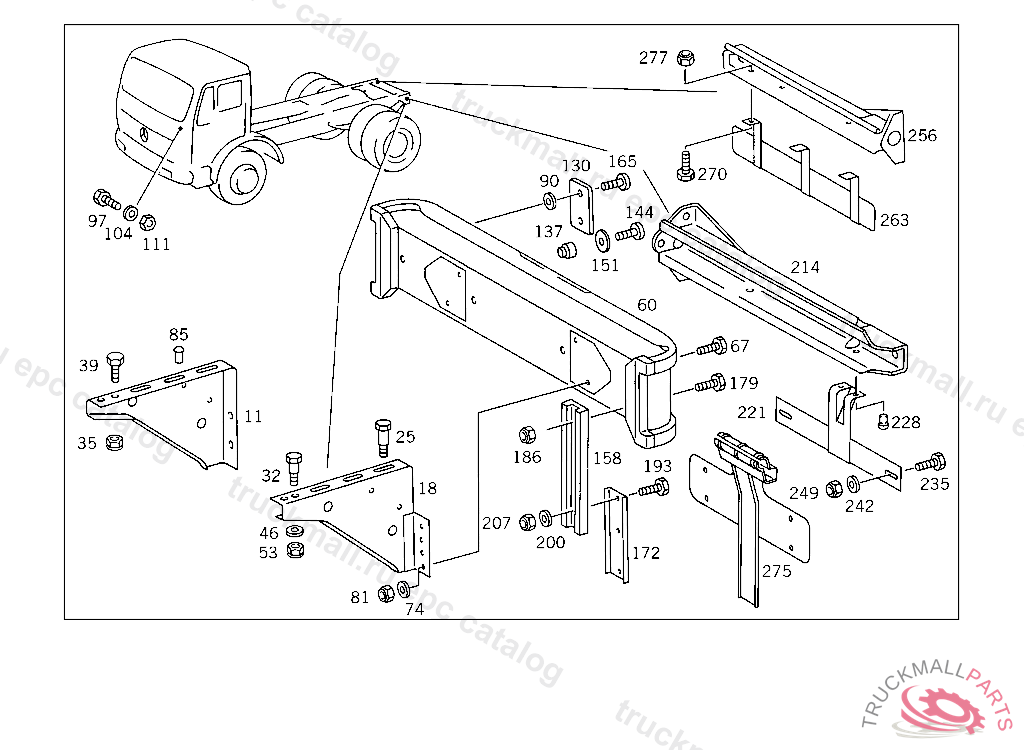

Поз.
Артикул
Описание
11
BRACKET RIGHT
11
BRACKET RIGHT
18
BRACKET LEFT
18
BRACKET LEFT
25
SCREWM 12X13X21X38
32
SCREWM 12X13X15X32
32
SCREWM 14X14X18X32
32
SCREW , Replaced By: A3859900814, +001N913004014005
32
SCREW , Replaced By: A3229903101
35
NUT , Replaced By: N910113014000
35
NUT STEERING SUPPORT TO FRAME
39
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
39
SCREW BRACKET TO LEFT SIDE MEMBER
39
SCREW , Replaced By: N308676012026
46
DISK , Replaced By: A1232420366
46
WASHER BRACKET TO PROPELLER SHAFT BEARING HOUSING
53
NUT SUPPORT TO SIDE MEMBER
60
CROSS MEMBER UNDERRUN PROTECTION,4 300861
67
SCREW END PIECE TO EXHAUST PIPE M 10X25
74
WASHER STRUT TO CROSS MEMBER
74
WASHER , Replaced By: N007349010007
81
NUT , Replaced By: N910113010000
81
NUT STRAP TO BRACKET
85
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
90
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
90
WASHER , Replaced By: N009021005205
97
SCREW BRACKET TO SIDE MEMBER
97
SCREW SUPPORT TO CROSS MEMBER M 10X28
104
WASHER RADIATOR TO RUBBER MOUNTING
104
WASHER , Replaced By: N000125010532
111
NUT , Replaced By: N910113010000
111
NUT STRAP TO BRACKET
130
REFLECTOR
137
BRACKET
144
SCREWM 5X20
151
WASHER REFLECTOR,4 300928
158
BRACKET REFLECTOR
165
SCREW JUNCTION BOX TO BRACKET
172
BRACKET REFLECTOR
179
SCREW BRACKET TO TAIL LAMP BRACKET
186
NUT TWO-WAY VALVE TO BRACKET
193
SCREW COVER PLATE TO BRACKET
193
SCREW BRACKET TO BRACKET M 5X18
193
SCREW , Replaced By: N304017005011
200
WASHER , Replaced By: N009021005205
200
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
207
NUT TWO-WAY VALVE TO BRACKET
214
BRACKET TAIL LAMP
221
BRACKET LICENSE PLATE
228
RIVET ,5 453766
235
SCREW LICENSE PLATE TO BRACKET,4 300861
242
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
242
WASHER COMPRESSED AIR LINE TO BRACKET
249
NUT , Replaced By: N913004006001
249
NUT PUMP TO BRACKET
256
BRACKET RIGHT TAIL LAMP
263
PLATE
270
SCREW CLAMP TO BRACKET AND TO PIPE
270
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
270
SCREW , Replaced By: N304017008016
275
BRACKET TAIL LAMP
277
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
277
NUT , Replaced By: N913004008001
999
REFLECTOR
999
BRACKET TAIL LAMP,5 453766
999
BRACKET TAIL LAMP,5 453766
999
SHIM REFLECTOR BRACKET
999
BRACKET
999
BRACKET
999
BRACKET LEFT TAIL LAMP
999
BRACKET RIGHT TAIL LAMP,4 398418
999
CROSS MEMBER , Replaced By: A3815200248
999
CROSS MEMBER ,4 300860, Replaced By: A3815200248
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 307443, Replaced By: A3815201541, +001A3815201641
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 307443, Replaced By: A3815201641, +001A3815201541
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 307443, Replaced By: A3815201341
999
BRACKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 307443, Replaced By: A3815201441
999
STRUT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 307443, Replaced By: A3815201541, +001A3815201641
999
STRUT ,4 307443 EXHAUST STOCK OF OLD PART NUMBER FIRST, Replaced By: A3815201441
999
STRUT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 307443, Replaced By: A3815201641, +001A3815201541
999
STRUT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO.:4 307443, Replaced By: A3815201541, +001A3815201641
999
BRACKET MUD APRON
999
BRACKET TAIL LAMP
999
BRACKET TAIL LAMP
999
BRACKET RIGHT TAIL LAMP
999
BRACKET LEFT TAIL LAMP
999
BRACKET LEFT TAIL LAMP,4 897761
999
BRACKET RIGHT TAIL LAMP,4 897761
999
BRACKET RIGHT TAIL LAMP,4 897761
999
BRACKET LEFT TAIL LAMP,4 897761
999
BRACKET TAIL LAMP
999
COVERING AT TAIL LAMP BRACKET
