Поз.
Артикул
Описание
5

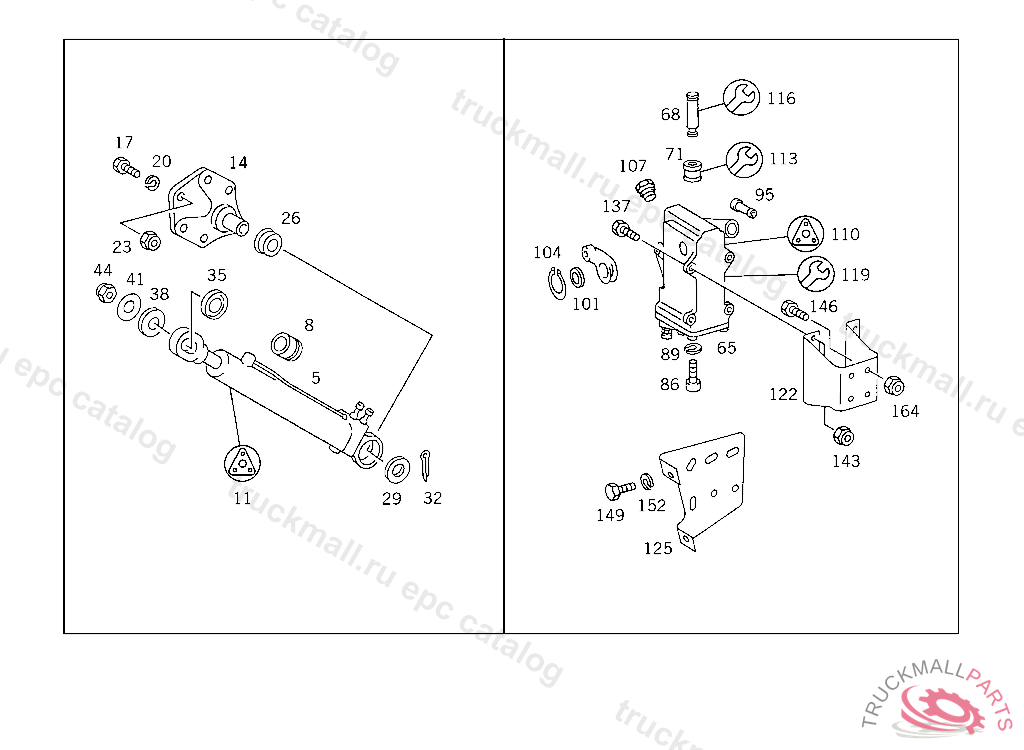

CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER,4 733732
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
5
CYLINDER , Replaced By: A0015533605
5
CYLINDER , Replaced By: A0015533505
5
CYLINDER , Replaced By: A0015539505
5
CYLINDER , Replaced By: A0015533605
5
CYLINDER , Replaced By: A0015533505
8
GUIDETO 001 553 49 05
8
GUIDEWEBER
11
GASKET KIT HYDRAULIC CYLINDER TO 000 553 03 05,000 553 18 05,
11
GUIDE , Replaced By: A0015534905
11
REPAIR KIT , Replaced By: A0005501535
11
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
11
GASKET KIT HYDRAULIC CYLINDER WEBER
14
BEARING BRACKET HYDRAULIC CYLINDER
17
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
17
SCREW , Replaced By: N000961012051
17
SCREW BEARING BRACKET TO FRAME
20
LOCK WASHER FITTING TO BRACKET
20
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
23
NUT STEERING SUPPORT TO FRAME
23
NUT END PIECE TO EXHAUST PIPE
23
NUT , Replaced By: N910113014000
26
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
29
WASHER HYDRAULIC CYLINDER TO CAB
32
COTTER PIN6,3X36 MM
35
WASHER HYDRAULIC CYLINDER TO CAB
38
WASHER HYDRAULIC CYLINDER TO CAB
41
WASHER HYDRAULIC CYLINDER TO CAB
44
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
44
NUT COMBINATION CYLINDER TO BEARING BRACKET
65
PUMP (HAND PUMP) POWER PACKER,4 733732
65
PUMP (HAND PUMP) WEBER
65
PUMP , Replaced By: A0005537901
65
PUMP , Replaced By: A0005536501
68
PISTONTO 000 553 79 01,WEBER
68
PISTONTO 000 553 39 01,WEBER
71
VALVETO 000 553 79 01,WEBER
71
VALVETO 000 553 39 01,WEBER
71
VALVETO 000 553 23 01,000 553 37 01,
86
SCREW , Replaced By: N000000000190
86
SCREW
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
95
FILTER
101
FITTED WASHER
104
LOCK RING
107
SCREW
107
SCREWTO 000 553 65 01,000 553 69 01,
110
GASKET KIT HAND PUMP TO 000 553 37 01,000 553 39 01,WEBER
110
GASKET KIT HAND PUMP
113
REPAIR KIT VALVE TO 000 553 54 01,POWER-PACKER,4 733732
116
REPAIR KIT PISTON TO 000 553 54 01,POWER-PACKER,4 733732
119
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
125
BRACKET HAND PUMP
137
SCREW BRACKET TO SIDE MEMBER
137
SCREW , Replaced By: N304017010002
143
NUT , Replaced By: N910113010000
143
NUT STRAP TO BRACKET
149
SCREW BRACKET TO SIDE MEMBER
149
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
149
SCREW , Replaced By: N304017008040
149
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
152
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
FITTINGWEBER,TO 001 553 35 05
999
SCREW OIL FILLING TO 000 553 89 01
999
GASKET KIT , Replaced By: A0005502583
