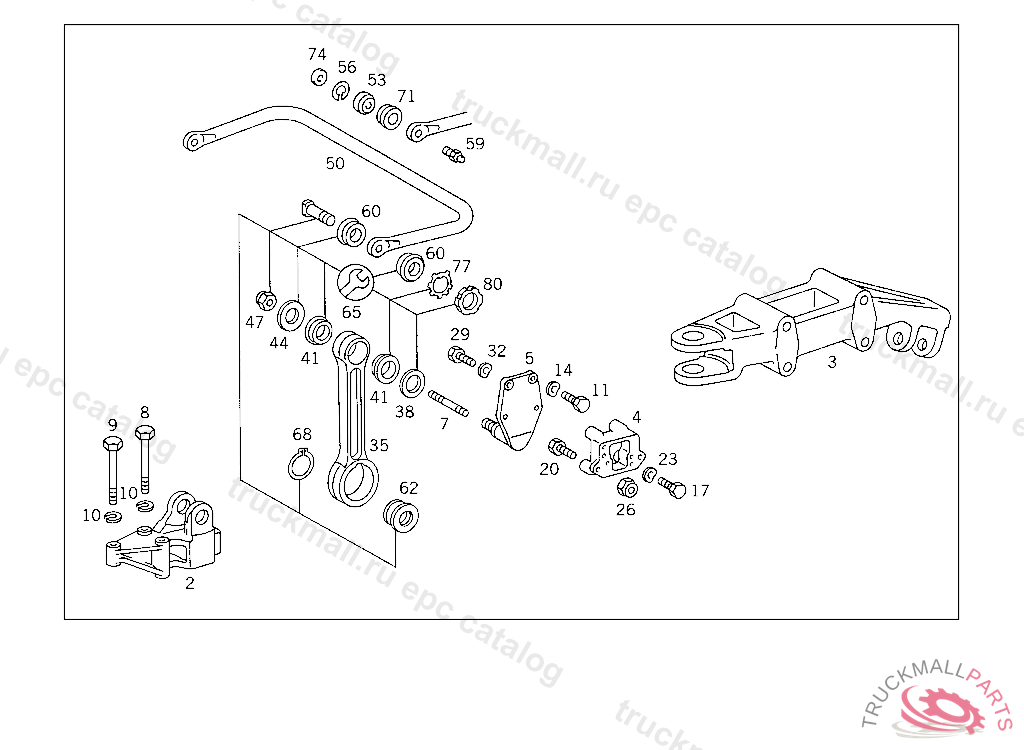

Поз.
Артикул
Описание
2
BRACKET SHOCK ABSORBER AND STABILIZER,RIGHT
2
BRACKET SHOCK ABSORBER AND STABILIZER,LEFT
3
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 297102, Replaced By: A6173260340
3
BRACKET SHOCK ABSORBER AND STABILIZER
4
INTERMEDIATE PIECE SHOCK ABSORBER
4
INTERMEDIATE PIECE SHOCK ABSORBER
5
BEARING BRACKET SHACKLE TO FRAME,5 904660
5
BEARING BRACKET SHACKLE TO FRAME,5 904660
5
CONSOLE ,5 910760, Replaced By: A6153260063, +001N000961016081
5
CONSOLE , Replaced By: A3933261163, +001N000961016081
7
STUD BOLT
8
SCREW APPARATUS SUPPORT TO FRAME,REAR
9
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
10
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
11
SCREW CONSOLE TO FRAME
11
SCREW , Replaced By: N308676016020
11
SCREW REAR EXHAUST PIPE TO MUFFLER
11
SCREW BRACKET TO SUPPORT
14
SPRING WASHER BRACKET TO TIMING CASE
14
SPRING WASHER STEERING COLUMN BRACKET TO CAB
17
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
20
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
20
SCREW , Replaced By: N308676016006
23
SPRING WASHER CAB FLOOR
26
NUT , Replaced By: N910113016001
26
NUT CONSOLE TO SUPPORT
29
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
29
SCREW , Replaced By: N308676016006
32
SPRING WASHER BRACKET TO TIMING CASE
35
SHACKLE STABILIZER,5 904660
35
SHACKLE STABILIZER,5 904660
35
SHACKLE STABILIZER,5 904660
35
SHACKLE STABILIZER,5 904660
38
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
41
BUSHING SHACKLE TO BEARING BRACKET,5 904660
44
SPACER WASHER SHACKLE TO BEARING BRACKET,5 904660
44
SPACER WASHER , Replaced By: A3933260152
47
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
47
NUT COMBINATION CYLINDER TO BEARING BRACKET
50
TORSION BAR ,5 904660
53
JOINT BEARING TORSION BAR TO LINK,5 903513
53
JOINT BEARING TORSION BAR TO LINK,5 903513
56
LOCK RING TORSION BAR TO LINK,5 903513
59
GREASE NIPPLE CAB SUSPENSION,FRONT,4 493779
60
BUSHING TORSION BAR TO BEARING BRACKET,5 904660
62
RUBBER MOUNTING SHACKLE TO TORSION BAR,5 904660
65
REPAIR KIT TORSION BAR MOUNTING,5 904660
65
REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 170415, Replaced By: A6173200228
68
LOCK RING SHACKLE TO TORSION BAR,5 904660
71
SEAL RING TORSION BAR TO BEARING BRACKET,5 170415
71
SEAL RING LINK TO BEARING BRACKET,5 903513
74
SPACER TUBE LINK TO BEARING BRACKET,5 903513
77
LOCK PLATE TORSION BAR TO BEARING BRACKET,5 904660
80
NUT TORSION BAR TO BEARING BRACKET,5 904660
999
STIFFENING HELPER SPRING BRACKET
999
STIFFENING HELPER SPRING BRACKET TO SIDE MEMBER
999
BRACKET LEFT SHOCK ABSORBER, UP TO CHASSIS 4 434076,FROM CHASSIS 4 434077 SEE SERIE
999
BRACKET RIGHT SHOCK ABSORBER, UP TO CHASSIS 4 434076,FROM CHASSIS 4 434077 SEE SERIE
999
PIN SHACKLE TO TORSION BAR
999
SCREW SHACKLE TO CONSOLE
