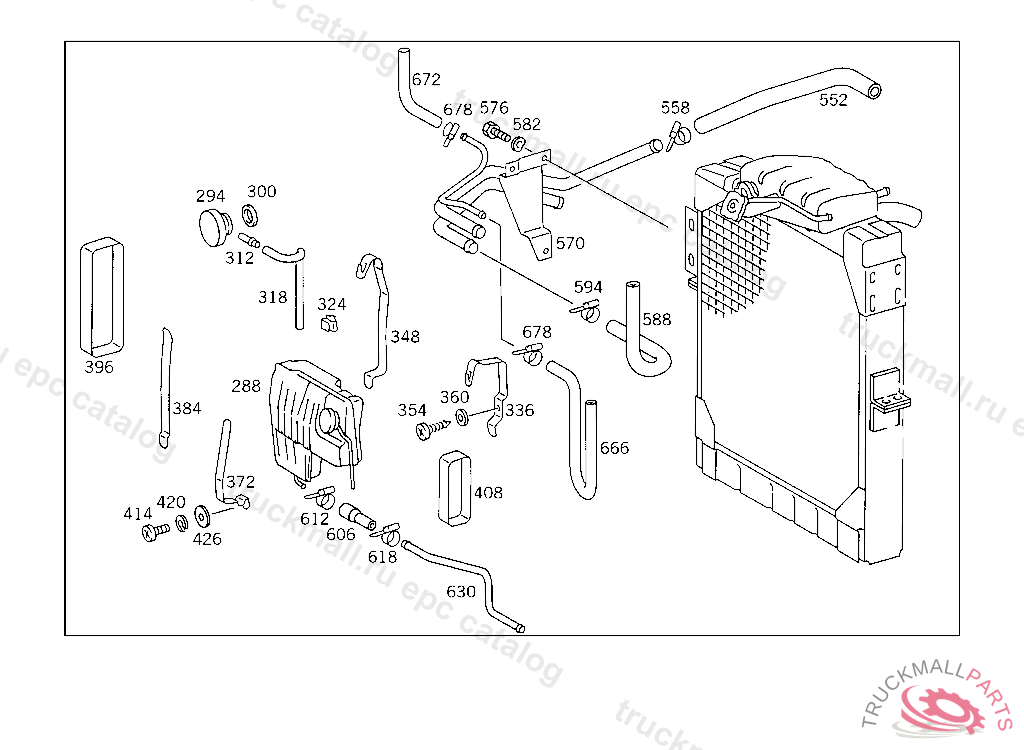

Поз.
Артикул
Описание
288
TANK CAB,FRONT,5 129373
294
RADIATOR CAP
300
GASKET O.D., 37 MM
312
DRAIN PIPE
318
HOSE OVERFLOW
324
CLIP CABLE HARNESS TO ROOF RAIL
336
BRACKET EXPANSION TANK,LEFT
348
BRACKET EXPANSION TANK,RIGHT
354
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
360
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
360
WASHER COMPRESSED AIR LINE TO BRACKET
372
STRAP EXPANSION TANK,LEFT
384
STRAP EXPANSION TANK,RIGHT
396
SHIM EXPANSION TANK,LEFT
408
SHIM EXPANSION TANK,RIGHT
414
SCREW CLAMP MOUNTING M 6X16
414
SCREW , Replaced By: N000000001146
420
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
426
WASHER COMPRESSED AIR LINE TO BRACKET
426
WASHER , Replaced By: N009021006208
588
HOSE FROM HEATING PIPE AT RADIATOR TO CAB HEATING PIPE
594
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
594
CLAMP , Replaced By: N000000000667
606
HOSE , Replaced By: A6205012882
606
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
612
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
612
CLAMP , Replaced By: N000000000667
618
CLAMP , Replaced By: N916017011001
618
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
630
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
666
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK, NOT USED
672
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
678
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
678
CLAMP , Replaced By: N916017011001
999
CLAMP OIL DIPSTICK TO RADIATOR
999
BRACKET OIL DIPSTICK TO RADIATOR
999
BRACKET OI DIPSTICK GUIDE TUBE
999
HOSE
999
HOSE , Replaced By: A0219977682
999
SCREW PLUG , Replaced By: N007604014101
