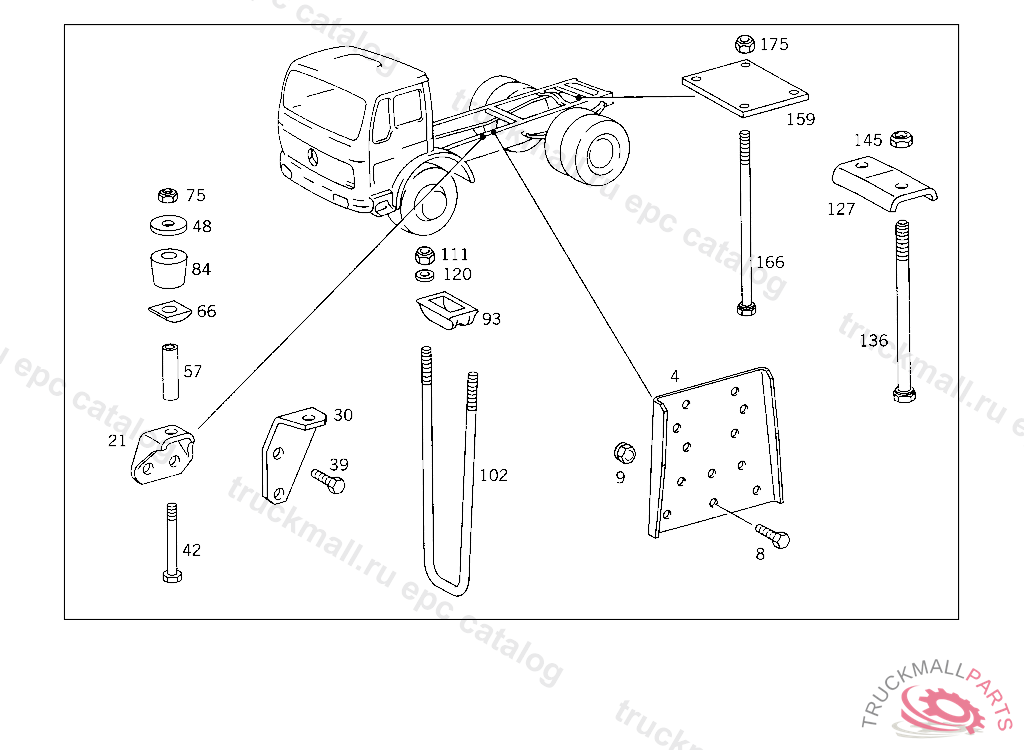

Поз.
Артикул
Описание
4
PLATE
8
SCREW BRACKET TO LEFT SIDE MEMBER
9
NUT SUPPORT TO SIDE MEMBER
21
MOUNTING PLATE DUMPER AUXILIARY FRAME TO CHASSIS, FROM DUMPER SUPORT TO PRESS SUPPORT
30
MOUNTING PLATE DUMPER AUXILIARY FRAME TO CHASSIS, FRONT,4 923680
30
MOUNTING PLATE DUMPER AUXILIARY FRAME TO CHASSIS, FRONT,4 923680
39
SCREW MOUNTING TO CONSOLE M 14X35
39
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
39
SCREW , Replaced By: N308676014008
39
SCREW , Replaced By: N308676012026
39
SCREW CONSOLE TO SIDE MEMBER
42
SCREW , Replaced By: A0079900601
42
SCREW , Replaced By: N000960012443
42
SCREW LEAF SPRING TO STRUT
42
SCREW STRUT TO BUMPER
42
SCREW DUMPER AUXILIARY FRAME TO CHASSIS, FRONT,4 923680
48
WASHER DUMPER AUXILIARY FRAME TO CHASSIS, FROM DUMPER SUPORT TO PRESS SUPPORT
57
SPACER TUBE , Replaced By: A3833160053
57
SPACER TUBE , Replaced By: A3833160053
66
WASHER DUMPER AUXILIARY FRAME TO CHASSIS, FROM DUMPER SUPORT TO PRESS SUPPORT
75
NUT STEERING SUPPORT TO FRAME
75
NUT SUPPORT TO SIDE MEMBER
75
NUT , Replaced By: N910113014000
84
RUBBER BUFFER DUMPER AUXILIARY FRAME TO CHASSIS, FROM DUMPER SUPORT TO PRESS SUPPORT
93
BASE CLAMP TO FRAME,5 506056
102
CLAMP DUMPER AUXILIARY FRAME TO CHASSIS,NEAR DUMPER SUPPORT
102
CLAMP DUMPER AUXILIARY FRAME TO CHASSIS, BEHIND REAR AXLE, TO BE ADAPTED DURING ASSEMBLY
102
CLAMP DUMPER AUXILIARY FRAME TO CHASSIS, FROM DUMPER SUPORT TO PRESS SUPPORT
102
CLAMP DUMPER AUXILIARY FRAME TO CHASSIS, FROM DUMPER SUPORT TO PRESS SUPPORT
102
CLAMP DUMPER AUXILIARY FRAME TO CHASSIS,NEAR PRESS SUPPORT
102
CLAMP , Replaced By: A3818910730
102
CLAMP , Replaced By: A3818910130
111
NUT SUPPORT TO SIDE MEMBER
120
WASHER
127
PLATE AUXILIARY FRAME TO FRAME
136
SCREW DUMPER AUXILIARY FRAME TO CHASSIS
145
NUT BRACKET TO SIDE MEMBER
145
NUT , Replaced By: N910113014001
159
PLATE MOUNTING PLATE TO AUXILIARY FRAME
166
SCREW BRACKET TO LEFT SIDE MEMBER
166
SCREW , Replaced By: N308676012015
166
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
166
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
166
SCREW , Replaced By: N308676012026
175
NUT SUPPORT TO SIDE MEMBER
999
CONSOLE FRAME,4 404477
999
SPACER TUBE , Replaced By: A3833160053
999
SPACER TUBE AUXILIARY FRAME TO CHASSIS, WITH COMPLETE VEHICLES
