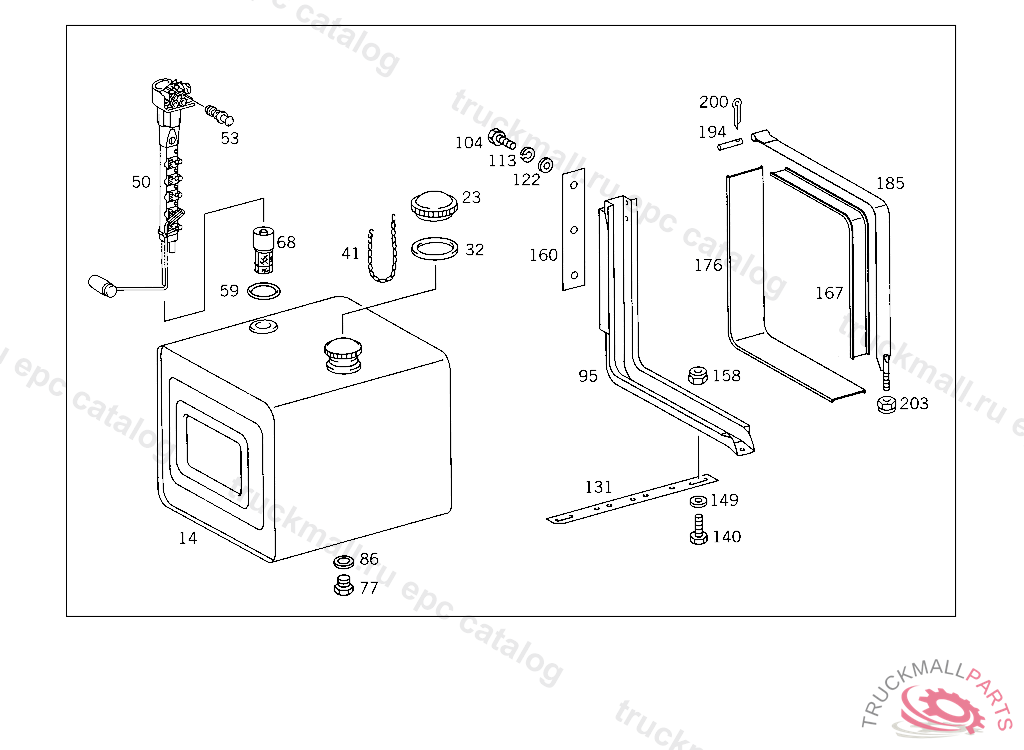

Поз.
Артикул
Описание
14
FUEL TANK200 L
23
FILLER CAP , Replaced By: A0004700305
23
FILLER CAP , Replaced By: A0004717930
23
FILLER CAP , Replaced By: A0004700305
23
FILLER CAP , Replaced By: A0004700305
23
FILLER CAP
32
SEAL RING
41
CHAIN FILLER CAP
50
SENDER UNIT FUEL GAUGE
50
SENDER UNIT , Replaced By: A0085428117
50
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426517, +001A0005409917
53
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
59
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
68
FUEL STRAINER FUEL TANK,K 169122
68
FUEL STRAINER FUEL TANK,K 169123
77
SCREW PLUG FUEL TANK
77
SCREW PLUG , Replaced By: N007604014110
86
SEAL RING FUEL LINE TO FEED PUMP
95
SUPPORT FUEL TANK TO FRAME
95
SUPPORT REAR FUEL TANK
95
SUPPORT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6174703742
95
SUPPORT FRONT FUEL TANK
104
SCREW , Replaced By: N308765014006
104
SCREW , Replaced By: N910105014010
104
SCREW , Replaced By: N308676014020
104
SCREW , Replaced By: N000961014064
104
SCREW BRACKET TO SIDE MEMBER
104
SCREW SUPPORT TO SIDE MEMBER M14X40
104
SCREW TRAILER COUPLING TO REAR CROSS MEMBER,5 734466
104
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
104
SCREW SUPPORT TO SIDE MEMBER M 14X90
104
SCREW BEARING BRACKET TO CROSS MEMBER M 14X95
104
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
104
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
104
SCREW SHOCK ABSORBER TO TOP BRACKET
104
SCREW VERTICAL TAIL PIPE BEHIND CAB
113
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
113
LOCK WASHERROCKINGER TYP 59 G140,59 G150
122
WASHER BRACKET TO SIDE MEMBER,5 703114
122
SPACER TUBE BRACKET TO CONSOLE
131
REINFORCEMENT REINFORCEMENT RAIL TO CONSOLE
140
SCREW CONSOLE TO SIDE MEMBER
140
SCREW EXHAUST PIPE TO BRACKET
149
WASHER
158
NUT STRAP TO SUPPORT
158
NUT SUPPORT TO SIDE MEMBER
160
SHIM SUPPORT TO SIDE MEMBER
167
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
176
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
185
STRAP FUEL TANK TO SUPPORT
194
PIN STRAP TO SUPPORT
200
COTTER PIN STRAP TO SUPPORT
203
NUT SUPPORT TO SIDE MEMBER
203
NUT STRAP TO SUPPORT
999
GROMMET LINE PASSAGE AT SIDE MEMBER
999
GROMMET SENSOR CABLE PROTECTION
999
LOOM TIE LINE MOUNTING
