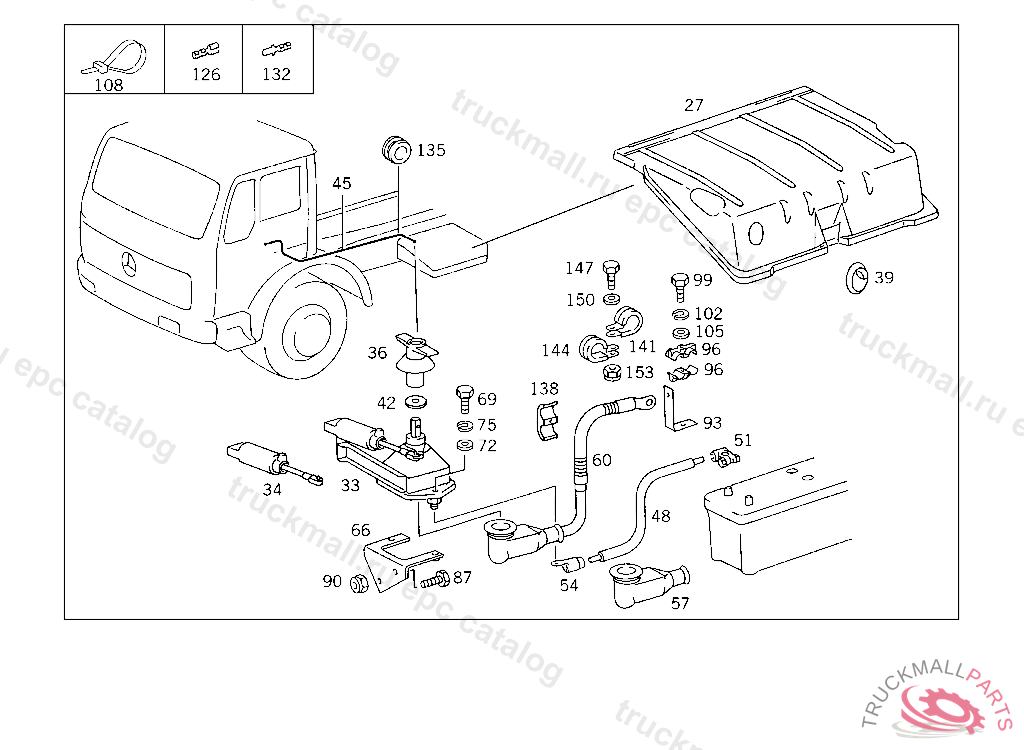

Поз.
Артикул
Описание
27
COVER BATTERY/APPARATUS SUPPORT
27
COVER BATTERY/APPARATUS SUPPORT
33
SWITCH (BATTERY MASTER SWITCH)
34
CYLINDER
36
KNOB BATTERY MASTER SWITCH ACTUATION
39
GROMMET BATTERY CASE
42
SEAL RING BATTERY MASTER SWITCH
45
POSITIVE CABLE FROM BATTERY I TO STARTING MOTOR
48
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
51
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
54
CABLE SHOE BATTERY CABLE 10-70 MM
57
BOOT NEG. CABLE
60
NEG. CABLE FROM BATTERY MASTER SWITCH NEG.POLE TO STARTING MOTOR NEG.POLE,5 193594
66
BRACKET BATTERY MASTER SWITCH
66
BRACKET BATTERY MASTER SWITCH
69
SCREW , Replaced By: N304017008034
72
WASHER EXHAUST MUFFLER TO STRAP
72
WASHER , Replaced By: N000125008443
75
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
87
SCREW REAR EXHAUST PIPE TO MUFFLER
87
SCREW END PIECE TO EXHAUST PIPE M 10X25
90
NUT , Replaced By: N910113010000
90
NUT STRAP TO BRACKET
93
BRACKET BATTERY CABLE TO BATTERY CASE
93
BRACKET , Replaced By: A6205244040
93
BRACKET BATTERY CABLE TO BATTERY CASE
93
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
96
CLAMPING PIECE BATTERY CABLE MOUNTING
99
SCREW DISTRIBUTOR TO CAB
102
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
105
WASHER COMPRESSED AIR LINE TO BRACKET
105
WASHER , Replaced By: N009021006208
108
LOOM TIE LINE MOUNTING 280 MM
126
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
126
PIN BUSHING , Replaced By: A0075458226
132
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
135
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
138
CLAMPING PIECE BATTERY CABLE MOUNTING
141
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
144
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
144
CLAMP DELIVERY AND SUCTION LINES TO FRAME
147
SCREW DISTRIBUTOR TO CAB
150
WASHER COMPRESSED AIR LINE TO BRACKET
150
WASHER , Replaced By: N009021006208
153
NUT , Replaced By: N913004006001
153
NUT PUMP TO BRACKET
999
CLAMPING PIECE BATTERY CABLE MOUNTING
999
NEG. CABLE , Replaced By: N072551070880, +001N046234010007, +001N072332013100
999
ELECTRIC CABLE FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH
999
ANGLE , Replaced By: A3604280243
999
NEG. CABLE , Replaced By: N072551070880
999
BRACKET BATTERY CABLE TO ENGINE MOUNTING
999
ELECTRIC CABLE , Replaced By: A6205401831, +001A0005468730
999
ELECTRIC CABLE
999
COVER , Replaced By: A6205410403
999
ELECTRIC CABLE
999
ELECTRIC CABLE
999
COVER BATTERY/APPARATUS SUPPORT
999
ELECTRIC CABLE , Replaced By: N922002070000
999
ELECTRIC CABLE , Replaced By: A6735460013
