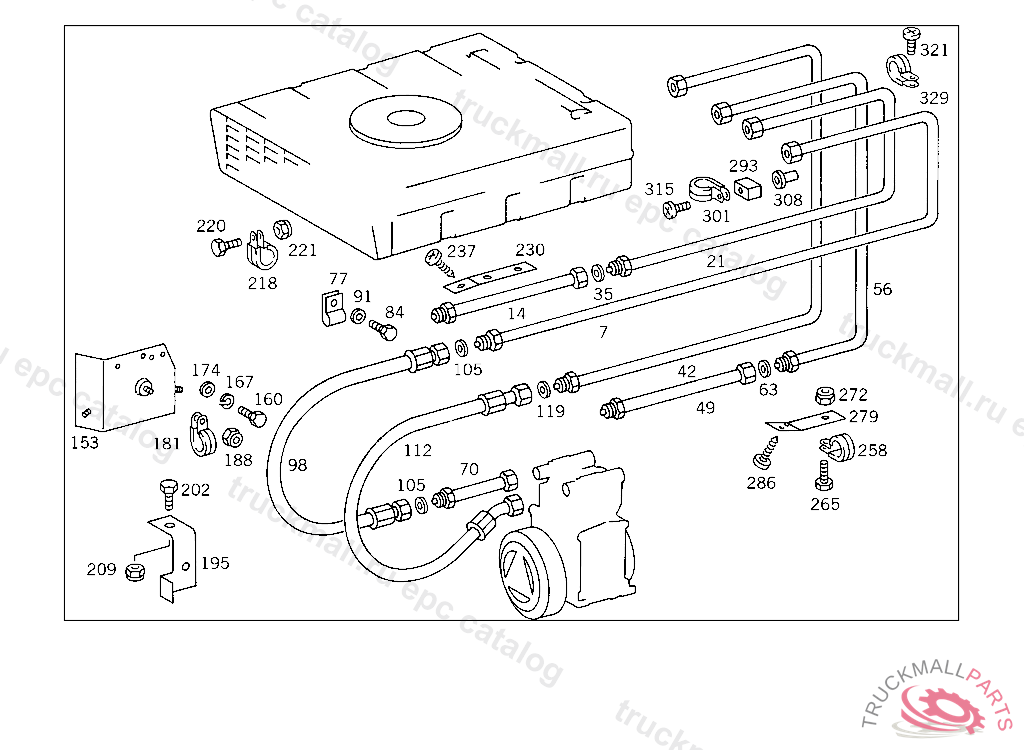

Поз.
Артикул
Описание
7
PIPE LINE HIGH PRESSURE, FROM CONNECTION HOSE TO AIR CONDITIONER
14
PIPE LINE HIGH PRESSURE, FROM CONNECTION HOSE TO SEPARTION POINT
14
PIPE LINE , Replaced By: A6208303015
14
PIPE LINE HIGH PRESSURE, FROM CONNECTION HOSE TO SEPARTION POINT
14
PIPE LINE HIGH PRESSURE, FROM CONNECTION HOSE TO SEPARTION POINT
14
PIPE LINE HIGH PRESSURE, FROM CONNECTION HOSE TO SEPARTION POINT
21
PIPE LINE HIGH PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
21
PIPE LINE HIGH PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
21
PIPE LINE HIGH PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
21
PIPE LINE HIGH PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
21
PIPE LINE HIGH PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
21
PIPE LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6458300515
35
SEAL RING , Replaced By: A1249970545
35
SEAL RING , Replaced By: A1409970845
35
SEAL RING HOSE TO CONDENSER 14 MM
35
SEAL RING HOSE TO RESERVOIR 10.6 MM
42
PIPE LINE LOW PRESSURE, FROM CONNECTION HOSE TO AIR CONDITIONER
49
PIPE LINE LOW PRESSURE, FROM CONNECTION HOSE TO SEPARATION POINT
49
PIPE LINE LOW PRESSURE, FROM CONNECTION HOSE TO SEPARATION POINT
49
PIPE LINE LOW PRESSURE, FROM CONNECTION HOSE TO SEPARATION POINT
49
PIPE LINE , Replaced By: A6208303115
49
PIPE LINE LOW PRESSURE, FROM CONNECTION HOSE TO SEPARATION POINT
56
PIPE LINE , FIRST EXHAUST STOCK OF OLD PARTS, BUT NOT ON VEHICLES OF DANGER CATEGORY 3A, Replaced By: A6458300415
56
PIPE LINE LOW PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
56
PIPE LINE LOW PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
56
PIPE LINE LOW PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
56
PIPE LINE LOW PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
56
PIPE LINE LOW PRESSURE, FROM SEPARATION POINT TO AIR CONDITIONER
63
SEAL RING , Replaced By: A1249970345
63
SEAL RING , Replaced By: A1409970945
63
O-RING HOSE TO EXPANSION VALVE 17X2
63
SEAL RING , Replaced By: A1249970545
63
SEAL RING , Replaced By: A1409970845
63
SEAL RING HOSE TO CONDENSER 14 MM
70
PIPE LINE REFRIGERANT,5 017486
77
CLAMP , Replaced By: A3609951201
77
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
84
SCREW REFRIGERANT LINE TO COMPRESSOR,5 017486
91
WASHER , Replaced By: A4239900040
98
HOSE HIGH PRESSURE,FROM COMPRESSOR TO CAB
98
HOSE HIGH PRESSURE,FROM COMPRESSOR TO CAB
105
SEAL RING HOSE TO RESERVOIR 10.6 MM
112
HOSE LOW PRESSURE,FROM COMPRESSOR TO CAB
112
HOSE LOW PRESSURE,FROM COMPRESSOR TO CAB
119
SEAL RING HOSE TO CONDENSER 14 MM
119
SEAL RING , Replaced By: A1409970845
119
SEAL RING , Replaced By: A1249970545
153
BRACKET COOLING WATER HOSE TO RADIATOR
160
SCREW PUMP TO BRACKET
160
SCREW , Replaced By: N304017006016
167
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
174
WASHER BRACKET TO APPARATUS SUPPORT
181
CLAMP DELIVERY AND SUCTION LINES TO FRAME
181
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
181
CLAMP HOSE TO FLANGE AND TO VALVE
181
CLAMP HOSE TO BRACKET 25/20,5 206397
181
CLAMP PIPE ON FAN SHROUD
181
CLAMP DELIVERY AND SUCTION LINES TO FRAME
181
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
181
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
188
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
188
NUT , Replaced By: N913004008001
195
BRACKET CONNECTION OF COOLING WATER LINES
195
BRACKET CONNECTION OF COOLING WATER LINES
202
SCREW BRACKET TO CROSS CONNECTION STRUT
202
SCREW BRACKET TO CROSS CONNECTION STRUT
202
SCREW , Replaced By: N304017008034
202
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
209
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
209
NUT , Replaced By: N913004008001
209
NUT STRAP TO BRACKET
209
NUT , Replaced By: N910113010000
218
CLAMP HOSE TO FLANGE AND TO VALVE
218
CLAMP CONNECTING CABLE
220
SCREW LICENSE PLATE TO BRACKET
220
SCREW LICENSE PLATE TO BRACKET
220
SCREW , Replaced By: N304017006020
221
NUT PUMP TO BRACKET
221
NUT PUMP TO BRACKET
221
NUT , Replaced By: N913004006001
230
BRACKET CONNECTING CABLE
237
SHEET METAL SCREW BOOT TO CAB FLOOR
258
CLAMP BRAKE HOSE BRACKET
258
CLAMP LINE MOUNTING
258
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
265
SCREW LICENSE PLATE TO BRACKET
265
SCREW , Replaced By: N304017006020
265
SCREW PUMP TO BRACKET
265
SCREW , Replaced By: N304017006016
272
NUT PUMP TO BRACKET
272
NUT , Replaced By: N913004006001
279
BRACKET PIPE LINE TO CAB FLOOR
286
SHEET METAL SCREW BRACKET TO FLOOR
293
SPACER REFRIGERANT LINE TO CAB REAR PANEL
301
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
301
CLAMP LINE MOUNTING
301
CLAMP BRAKE HOSE BRACKET
308
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
308
RIVETED NUT REFRIGERANT LINE TO CAB REAR PANEL
315
SCREW PLATE TO BRACKET, Replaced By: N007985006590
315
SCREW PLATE TO BRACKET, Replaced By: N000000001481
315
SCREW PLATE TO BRACKET
315
SCREW PLATE TO BRACKET
321
SCREW , Replaced By: N000000001146
321
SCREW CLAMP MOUNTING M 6X16
329
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
329
CLAMP LINE MOUNTING
999
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 411349, Replaced By: A6458321223
999
BRACKET HOSE TO RADIATOR
999
BRACKET REFRIGERANT LINE TO CAB FLOOR
999
BRACKET PIPE LINE TO CAB FLOOR
