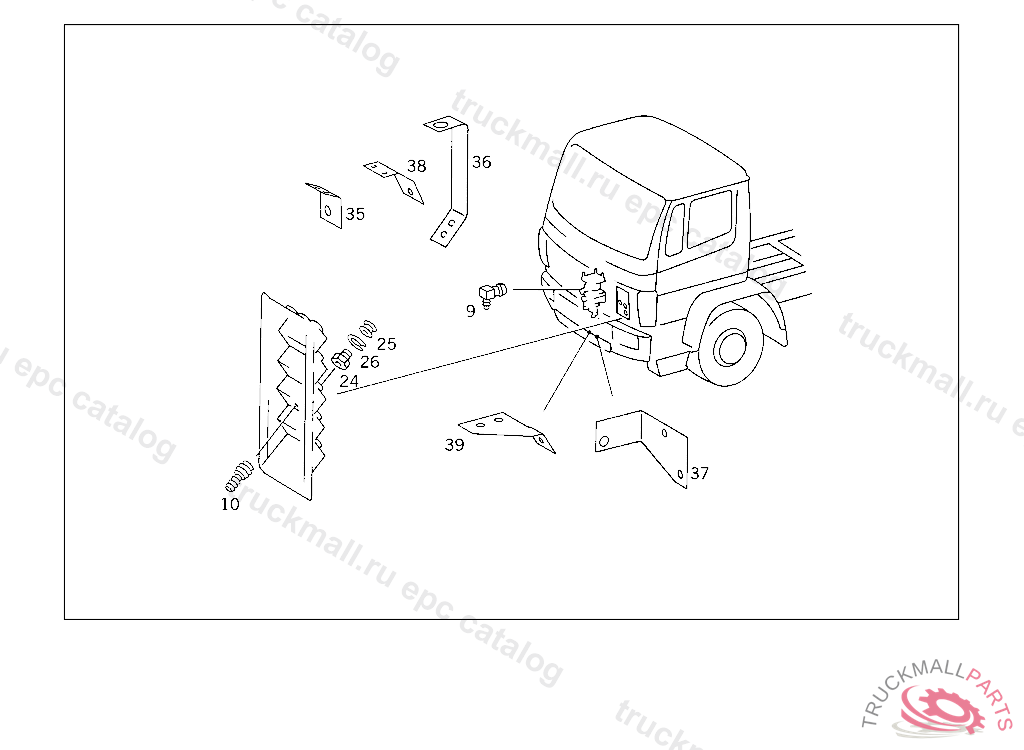

Поз.
Артикул
Описание
9
ELBOW FITTING , Replaced By: A0049905371
9
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
10
CONNECTOR HOSE WIDTH, 6 MM,TO M16
10
CONNECTOR , Replaced By: A0029905478
24
SCREW. UNION SCREW LINE CONNECTION
24
SCREW. UNION SCREW , Replaced By: A0009973734
25
SEAL RING , Replaced By: A0009940747
25
LOCK RING LINE CONNECTION
26
LOCK LINE CONNECTION
26
LOCK , Replaced By: A0009945448
35
BRACKET BRAKE LINE COUPLING
36
BRACKET BRAKE LINE COUPLING
37
BRACKET BRAKE LINE COUPLING,5 218722
38
BRACKET BRAKE LINE COUPLING
39
BRACKET , Replaced By: A3964310840
39
BRACKET BRAKE LINE COUPLING, TO BE ADAPTED DURING ASSEMBLY
