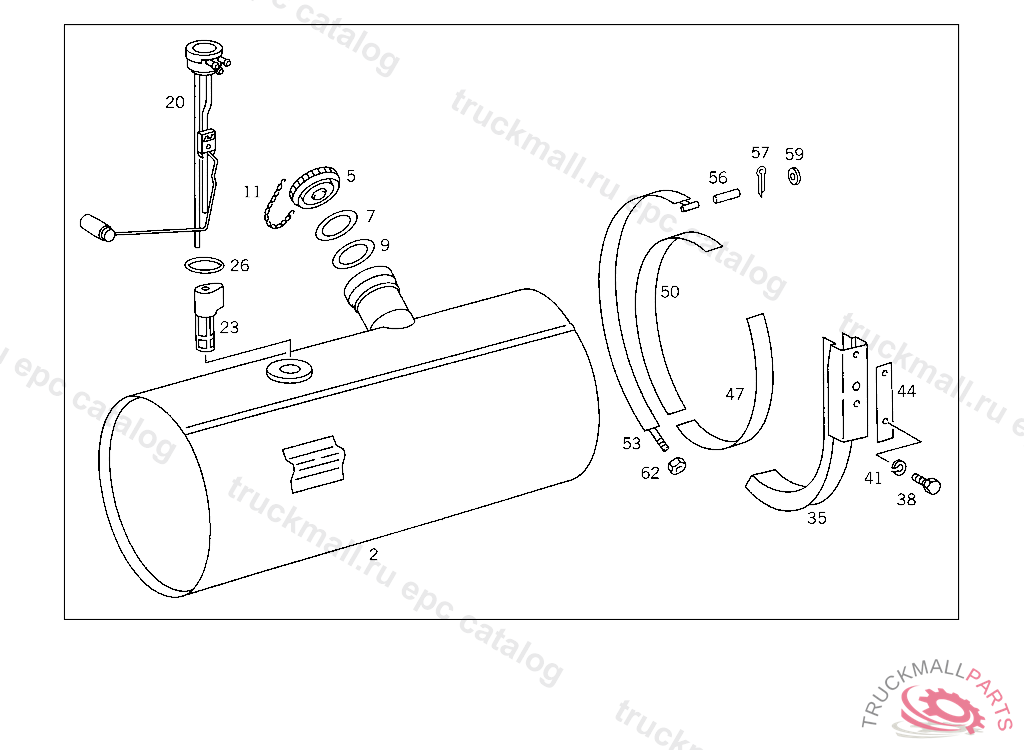

Поз.
Артикул
Описание
2
FUEL TANK , Replaced By: A3874701601
2
FUEL TANK LESS SENDER UNIT AND LESS SCREW CONNECTION PARTS
5
FILLER CAP
5
FILLER CAP , Replaced By: A0004700305
5
FILLER CAP , Replaced By: A0004700305
5
FILLER CAP , Replaced By: A0004717930
5
FILLER CAP , Replaced By: A0004700305
7
SEAL RING
7
WASHER , Replaced By: A3049970340
9
SEAL RING
11
CHAIN FILLER CAP
20
SENDER UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A0115426317, +001A0005409917
20
SENDER UNIT FUEL GAUGE,K 169123
20
SENDER UNIT , Replaced By: A0085428317
23
FUEL STRAINER FUEL TANK,K 169122
23
FUEL STRAINER FUEL TANK,K 169123
26
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
35
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 931459, Replaced By: A6524701542
35
SUPPORT FUEL TANK
35
SUPPORT , Replaced By: A6174704042
38
SCREW , Replaced By: N308676014020
38
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
38
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
41
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
44
SHIM SUPPORT TO SIDE MEMBER
47
PAD FUEL TANK TO CONSOLE
47
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
50
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
50
PAD , Replaced By: A3634750220
53
STRAP FUEL TANK
56
PIN STRAP TO SUPPORT
57
COTTER PIN STRAP TO SUPPORT
59
WASHER
62
NUT SUPPORT TO SIDE MEMBER
999
PLUG TO SEAL AUXILIARY HEATER CONNECTION 8 MM,K 169123
999
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
999
WASHER , Replaced By: A3379900440
999
FUEL TANK
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SCREW PLUG , Replaced By: N007604014110
999
SCREW PLUG FUEL TANK
999
SCREW PLUG
