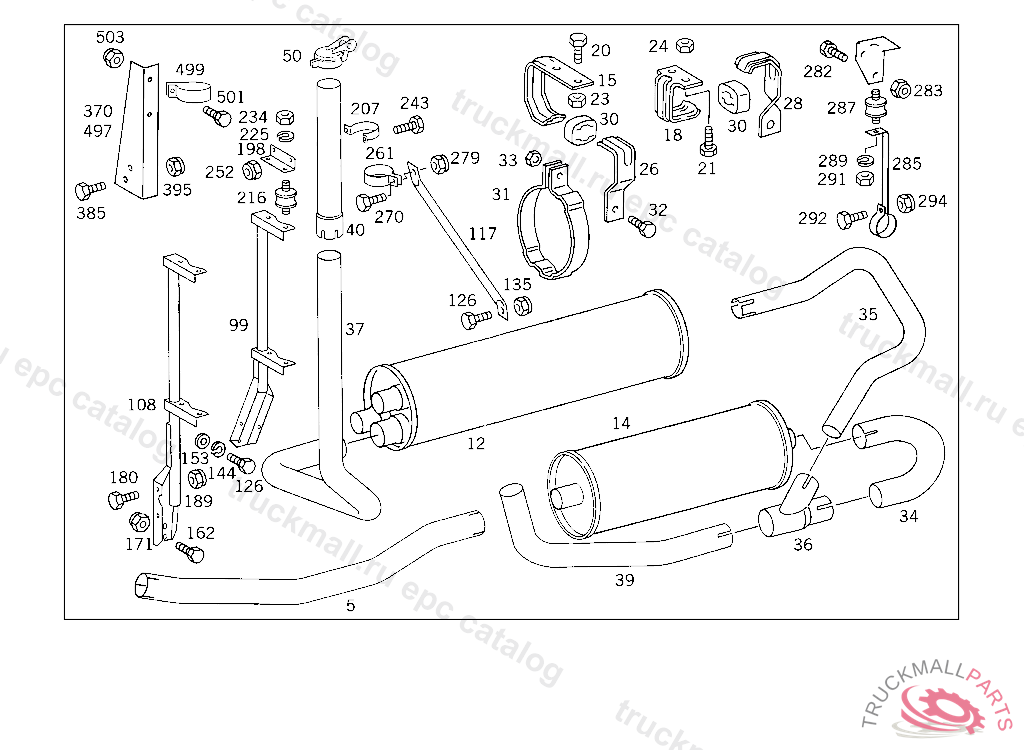

Поз.
Артикул
Описание
5
EXHAUST PIPE FRONT
5
EXHAUST PIPE FRONT
12
EXHAUST MUFFLER
12
EXHAUST MUFFLER
14
EXHAUST MUFFLER CENTRAL
14
EXHAUST MUFFLER CENTRAL,5 191852
14
EXHAUST MUFFLER
15
SUPPORT FRONT EXHAUST MUFFLER
18
SUPPORT REAR EXHAUST MUFFLER
20
SCREW END PIECE TO EXHAUST PIPE M 12X30
20
SCREW , Replaced By: N304017012020
21
SCREW SUPPORT TO CROSS MEMBER M 10X28
23
NUT END PIECE TO EXHAUST PIPE
24
NUT , Replaced By: N910113010000
24
NUT STRAP TO BRACKET
26
BRACKET EXHAUST MUFFLER TO SUPPORT,FRONT
28
BRACKET REAR EXHAUST MUFFLER TO SUPPORT
30
DAMPING PAD PARTICLE FILTER
31
CLAMP EXHAUST MUFFLER TO SUPPORT
32
SCREW EXHAUST PIPE TO BRACKET
33
NUT , Replaced By: N910113010000
33
NUT STRAP TO BRACKET
34
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
34
REAR EXHAUST PIPE SHORT,EXHAUST MUFFLER,LEFT
34
REAR EXHAUST PIPE BOTTOM CENTRAL,5 234718
34
REAR EXHAUST PIPE BOTTOM CENTRAL
34
REAR EXHAUST PIPE BOTTOM CENTRAL
35
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
35
REAR EXHAUST PIPE BOTTOM CENTRAL
36
FITTING REAR EXHAUST PIPE TO MUFFLER
37
CONNECTOR BOTTOM CENTRAL,5 028161
37
CONNECTOR BOTTOM CENTRAL
37
CONNECTOR BOTTOM CENTRAL,5 028161
37
CONNECTOR BOTTOM CENTRAL,5 028161
37
CONNECTOR BOTTOM CENTRAL,5 028161
37
CONNECTOR BOTTOM CENTRAL,5 028161
37
CONNECTOR BOTTOM CENTRAL
37
CONNECTOR BOTTOM CENTRAL,5 028161
37
REAR EXHAUST PIPE BEHIND CAB,UPWARD,5 438116
37
REAR EXHAUST PIPE BEHIND CAB,UPWARD
39
CONNECTOR BOTTOM CENTRAL
39
CONNECTOR BOTTOM CENTRAL
39
CONNECTOR REAR BOTTOM,5 234718
39
CONNECTOR FROM EXHAUST MUFFLER TO CAB REAR PANEL
39
CONNECTOR BOTTOM CENTRAL,5 234718
39
REAR EXHAUST PIPE BOTTOM CENTRAL,5 234719
39
CONNECTOR REAR BOTTOM,5 234718
39
CONNECTOR FROM EXHAUST MUFFLER TO CAB REAR PANEL
39
CONNECTOR BOTTOM CENTRAL
39
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
39
CONNECTOR REAR
40
END PIECE BEHIND CAB,UPWARD,5 028161
40
END PIECE BEHIND CAB,UPWARD,5 028161
40
END PIECE BEHIND CAB,UPWARD
40
END PIECE BEHIND CAB,UPWARD
40
END PIECE BEHIND CAB,UPWARD
50
FLAP (RAIN DEFLECTOR)
99
BRACKET EXHAUST PIPE SUSPENSION
108
BRACKET
108
BRACKET
117
BRACKET STRUT
126
SCREW SUPPORT TO CROSS MEMBER M 10X28
135
NUT STRAP TO BRACKET
135
NUT , Replaced By: N910113010000
144
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
153
WASHER RADIATOR TO RUBBER MOUNTING
153
WASHER , Replaced By: N000125010532
162
SCREW BRACKET TO SIDE MEMBER
162
SCREW BRACKET TO SIDE MEMBER
171
NUT BRACKET TO SIDE MEMBER
171
NUT BRACKET TO SIDE MEMBER
171
NUT , Replaced By: N910113014001
180
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
180
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
180
SCREW , Replaced By: N308676012012
189
NUT SUPPORT TO SIDE MEMBER
189
NUT SUPPORT TO SIDE MEMBER
198
BRACKET UPPER EXHAUST PIPE TO BRACKET,4 726044
198
BRACKET UPPER EXHAUST PIPE TO BRACKET,4 726045
198
BRACKET UPPER EXHAUST PIPE TO BRACKET,4 726044
207
CLAMP , Replaced By: A4374920440
207
CLAMP HEAT SHIELD TO TAILPIPE
207
CLAMP HEAT SHIELD TO TAILPIPE
216
RUBBER BUFFER BRACKET TO SUPPORT
216
RUBBER BUFFER BRACKET TO SUPPORT
225
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
225
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
234
NUT BRACKET TO SUPPORT AND TO END PIECE
234
NUT BRACKET TO SUPPORT AND TO END PIECE
243
SCREW , Replaced By: N304017008034
243
SCREW , Replaced By: N304017008034
252
NUT , Replaced By: N913004008001
252
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
252
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
252
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
261
CLAMP , Replaced By: N071555094502
261
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
261
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
270
SCREW END PIECE TO EXHAUST PIPE M 10X25
270
SCREW END PIECE TO EXHAUST PIPE M 10X25
279
NUT , Replaced By: N910113010000
279
NUT STRAP TO BRACKET
279
NUT STRAP TO BRACKET
282
SCREW , Replaced By: N304017008034
283
NUT , Replaced By: N913004008001
283
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
283
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
283
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
285
BRACKET , Replaced By: A3834927941
285
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
287
RUBBER BUFFER BRACKET TO SUPPORT
289
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
291
NUT BRACKET TO SUPPORT AND TO END PIECE
292
SCREW , Replaced By: N304017010002
292
SCREW BRACKET TO SIDE MEMBER
292
SCREW BRACKET TO SIDE MEMBER
294
NUT , Replaced By: N910113010000
294
NUT STRAP TO BRACKET
370
BRACKET BOTTOM,5 193595
385
SCREW END PIECE TO EXHAUST PIPE M 10X25
385
SCREW END PIECE TO EXHAUST PIPE M 10X25
395
NUT , Replaced By: N910113010000
395
NUT STRAP TO BRACKET
395
NUT STRAP TO BRACKET
497
BRACKET BOTTOM,5 193595
499
CLAMP EXHAUST PIPE TO BRACKET
501
SCREW , Replaced By: N304017010002
501
SCREW BRACKET TO SIDE MEMBER
503
NUT , Replaced By: N910113010000
503
NUT STRAP TO BRACKET
999
BRACKET VERTICAL TAIL PIPE BEHIND CAB
999
BRACKET TAIL PIPE
999
EXHAUST PIPE FRONT LEFT, NOT USED
999
SUPPORT EXHAUST MUFFLER CONNECTING PIPE,5 234718
