Поз.
Артикул
Описание

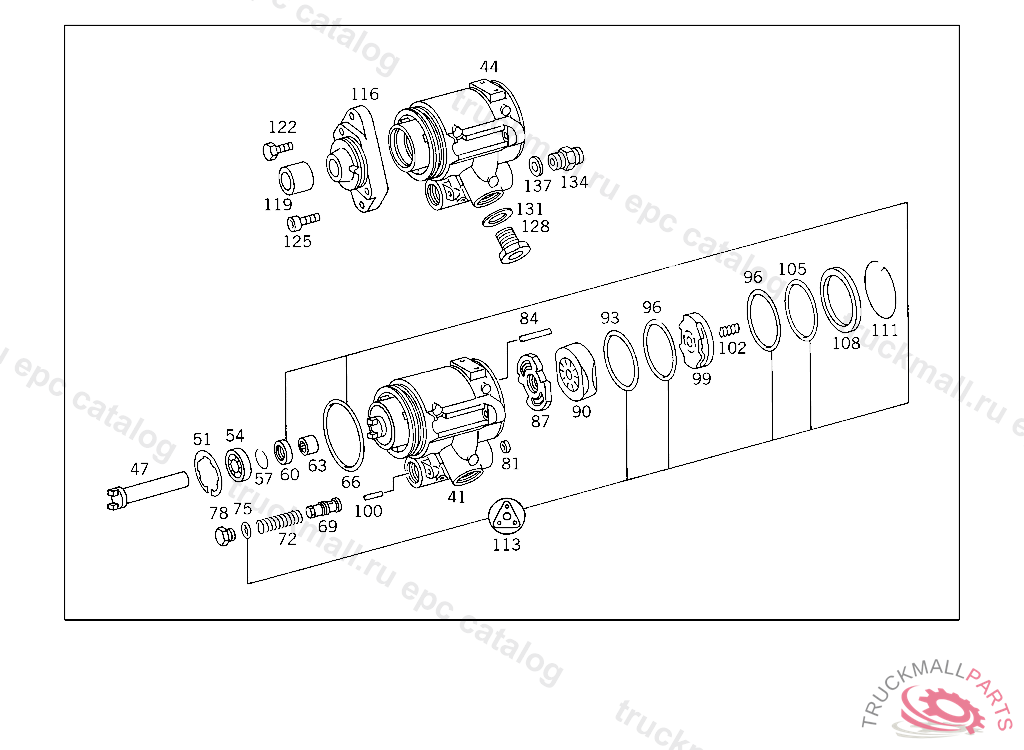

41
HYDRAULIC PUMP (POWER STEERING PUMP),AT ENGINE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
41
HYDRAULIC PUMP , Replaced By: A0014667701
44
HOUSING , NOT USED
47
DRIVE SHAFT
51
LOCK RING
54
GROOVED BALL BEARING
57
SNAP RINGWEBER,TO 000 553 40 01, UP TO IDENT NO. 5 070891,FROM IDENT NO. SEE SA 31 460
60
SEAL RING ALSO INCLUDED IN GASKET KIT: 000 460 00 61
63
NEEDLE BEARING
63
NEEDLE BEARING , Replaced By: A0209818510
66
SEALING CORD ALSO INCLUDED IN GASKET KIT: 000 460 00 61
69
PISTON
69
PISTON , Replaced By: A0004665283
72
SPRING
75
SEAL RING ALSO INCLUDED IN GASKET KIT: 000 460 00 61
78
SCREW PLUG
81
CARTRIDGETO 001 466 77 01
81
CARTRIDGETO 001 466 26 01
84
DOWEL PINTO 001 466 77 01
84
DOWEL PINTO 001 466 26 01
87
COVER
87
COVER , Replaced By: A0014660905
90
ROTOR SET
90
ROTOR SET , Replaced By: A0004666021
90
ROTOR SET , Replaced By: A0004665121
93
THRUST WASHER ALSO INCLUDED IN GASKET KIT: 000 460 00 61
96
SEAL RING
99
COVERTO 001 466 77 01
99
COVERTO 001 466 26 01
99
COVER , Replaced By: A0014660805
100
DOWEL PIN , NOT USED
102
SPRING
105
THRUST WASHER ALSO INCLUDED IN GASKET KIT: 000 460 00 61
108
COVER
111
SNAP RING
113
GASKET KIT POWER STEERING PUMP AT ENGINE
116
FLANGE POWER STEERING PUMP
116
FLANGE , Replaced By: A4221300145
119
BUSHING
119
BUSHING , Replaced By: A0001314250
122
SCREW END PIECE TO EXHAUST PIPE M 10X25
125
SCREW
128
FITTING POWER STEERING PUMP TO BEARING FLANGE
131
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
134
FITTING POWER STEERING PUMP
134
FITTING , Replaced By: A0049977672
137
SEAL RING POWER STEERING PUMP
999
NUT DRAG LINK END M 24X1.5
999
PROTECTIVE CAP
999
BRACKET BRACKET TO BRACKET
