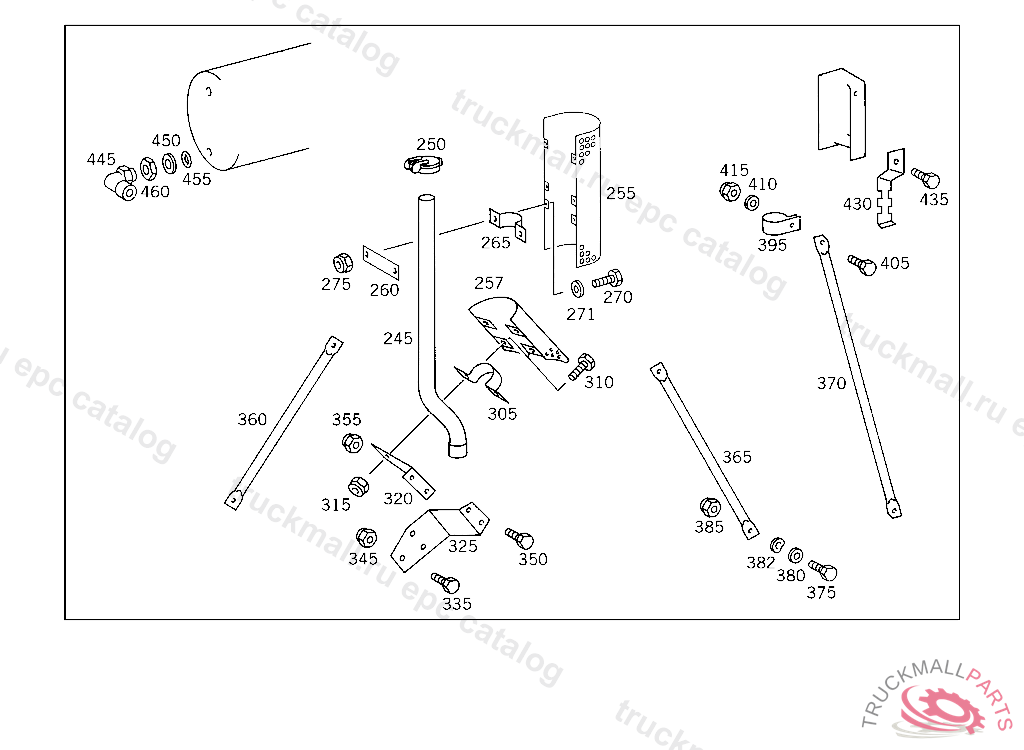

Поз.
Артикул
Описание
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE , Replaced By: A6174923014
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE EXHAUST PIPE
245
REAR EXHAUST PIPE BEHIND CAB,UPWARD
245
REAR EXHAUST PIPE BEHIND CAB,UPWARD
245
REAR EXHAUST PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 946474, Replaced By: A6524921604
245
REAR EXHAUST PIPE BEHIND CAB,UPWARD
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE BEHIND CAB,UPWARD
245
END PIECE BEHIND CAB,UPWARD
250
FLAP (RAIN DEFLECTOR)
250
FLAP (RAIN DEFLECTOR)
250
FLAP (RAIN DEFLECTOR)
255
PROTECTIVE PLATE (HEAT SHIELD)
255
PROTECTIVE PLATE (HEAT SHIELD)
257
PROTECTIVE PLATE (HEAT SHIELD)
257
PROTECTIVE PLATE (HEAT SHIELD)
260
BASE PLATE HEAT SHIELD TO TAILPIPE
265
CLAMP HEAT SHIELD TO TAILPIPE
265
CLAMP , Replaced By: A4374920440
265
CLAMP HEAT SHIELD TO TAILPIPE
270
SCREW BRACKET TO CROSS CONNECTION STRUT
270
SCREW PIPE CLAMP
270
SCREW , Replaced By: N304017008021
270
SCREW BRACKET TO CROSS CONNECTION STRUT
270
SCREW , Replaced By: N304017008034
271
WASHER EXHAUST MUFFLER TO STRAP
271
WASHER , Replaced By: N000125008443
275
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
275
NUT , Replaced By: N913004008001
305
CLAMP HEAT SHIELD TO TAILPIPE
305
CLAMP EXHAUST PIPE TO BRACKET
305
CLAMP HEAT SHIELD TO TAILPIPE
305
CLAMP , Replaced By: A4374920440
305
CLAMP EXHAUST PIPE TO BRACKET
305
CLAMP EXHAUST PIPE TO BRACKET
310
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
310
SCREW BRACKET TO CROSS CONNECTION STRUT
310
SCREW , Replaced By: N304017008034
315
NUT BRACKET TO SIDE MEMBER
315
NUT , Replaced By: N910113014001
315
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
315
NUT , Replaced By: N913004008001
320
BRACKET TAIL PIPE
325
BRACKET TAIL PIPE
335
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
345
NUT BRACKET TO SIDE MEMBER
345
NUT , Replaced By: N910113014001
350
SCREW END PIECE TO EXHAUST PIPE M 10X25
350
SCREW END PIECE TO EXHAUST PIPE M 10X25
355
NUT STRAP TO BRACKET
355
NUT STRAP TO BRACKET
355
NUT , Replaced By: N910113010000
360
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
360
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
365
BRACKET EXHAUST PIPE SUSPENSION
370
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
375
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
375
SCREW STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
375
SCREW REAR EXHAUST PIPE TO MUFFLER
375
SCREW SUPPORT TO CROSS MEMBER M 10X28
375
SCREW BRACKET TO SIDE MEMBER
375
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
375
SCREW , Replaced By: N304017008027
375
SCREW SUPPORT TO FENDER
375
SCREW , Replaced By: N304017008018
380
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
380
WASHER , Replaced By: N000125015019
380
WASHER BRACKET TO SIDE MEMBER
382
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
385
NUT STRAP TO BRACKET
385
NUT , Replaced By: N910113010000
385
NUT BRACKET TO SIDE MEMBER
385
NUT , Replaced By: N910113014001
385
NUT STRAP TO BRACKET
395
CLAMP , Replaced By: A6454921140
395
CLAMP EXHAUST PIPE TO BRACKET
395
CLAMP EXHAUST PIPE TO BRACKET
405
SCREW CONSOLE TO SIDE MEMBER
405
SCREW CONSOLE TO SIDE MEMBER
405
SCREW BRACKET TO SIDE MEMBER
405
SCREW BRACKET TO SIDE MEMBER
405
SCREW BRACKET TO SIDE MEMBER
405
SCREW , Replaced By: N304017010002
410
WASHER RADIATOR TO RUBBER MOUNTING
410
WASHER , Replaced By: N000125010532
415
NUT SUPPORT TO SIDE MEMBER
415
NUT SUPPORT TO SIDE MEMBER
415
NUT STRAP TO BRACKET
415
NUT STRAP TO BRACKET
415
NUT STRAP TO BRACKET
415
NUT , Replaced By: N910113010000
430
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
430
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
435
SCREW END PIECE TO EXHAUST PIPE M 10X25
445
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
450
THRUST RING CHECK VALVE TO AIR RESERVOIR
450
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
455
O-RING CHECK VALVE TO AIR RESERVOIR
460
NUT CHECK VALVE TO AIR RESERVOIR
999
PROTECTIVE PLATE FUEL TANK
999
REAR EXHAUST PIPE
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
SUPPORT TAIL PIPE
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE ,5 193595
999
END PIECE REAR EXHAUST PIPE,5 298310
999
BRACKET TAIL PIPE
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET FRONT EXHAUST MUFFLER
999
BRACKET EXHAUST MUFFLER SUSPENSION
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE FROM LEFT EXHAUST MUFFLER TO CONNECTION FITTING
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
CONNECTOR BOTTOM,5 193595
999
BRACKET , Replaced By: A6164920241
999
END PIECE SHORT,EXHAUST MUFFLER,RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE , Replaced By: A6524926914
999
END PIECE EXHAUST MUFFLER,LEFT AND RIGHT
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE
999
BRACKET
999
END PIECE
999
BRACKET TAIL PIPE
999
BRACKET , Replaced By: A6524921441
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 193595
999
BRACKET HEAT SHIELD TO FRAME
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
CLAMP EXHAUST PIPE TO BRACKET
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
EXHAUST PIPE ,5 953233
999
END PIECE LEFT
999
END PIECE RIGHT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468859
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),K 035523
999
INTERMEDIATE PIECE FROM CONNECTION FITTING TO CAB REAR PANEL,K 085783
999
PROTECTIVE PLATE , NOT USED
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE TAIL PIPE TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE ,5 765949
999
END PIECE
999
END PIECE
999
BRACKET TAIL PIPE TO APPARATUS SUPPORT
999
END PIECE (TAIL PIPE),5 5644795 758825
999
REAR EXHAUST PIPE VERTICAL,K 085783
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5975185 758825
999
END PIECE (TAIL PIPE),5 5644795 758825
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),5 758826
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
CONNECTOR
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
END PIECE (TAIL PIPE)
999
CLAMP EXHAUST PIPE TO BRACKET
999
BRACKET TAIL PIPE TO SIDE MEMBER, SIMPLE PART-PLEASE HAVE SHOP MADE
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
BRACKET TAIL PIPE
999
BRACKET PROTECTIVE PLATE TO SUPPORT
999
PROTECTIVE PLATE (HEAT SHIELD)
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET TAIL PIPE
999
INTERMEDIATE PIECE
999
CLAMP EXHAUST PIPE
999
REAR EXHAUST PIPE BEHIND CAB,UPWARD
999
BRACKET TAIL PIPE
999
MOUNTING BRACKET TO CAB
999
BRACKET INTERMEDIATE PIECE TO FRAME
999
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
CLAMP , Replaced By: A6554920340
