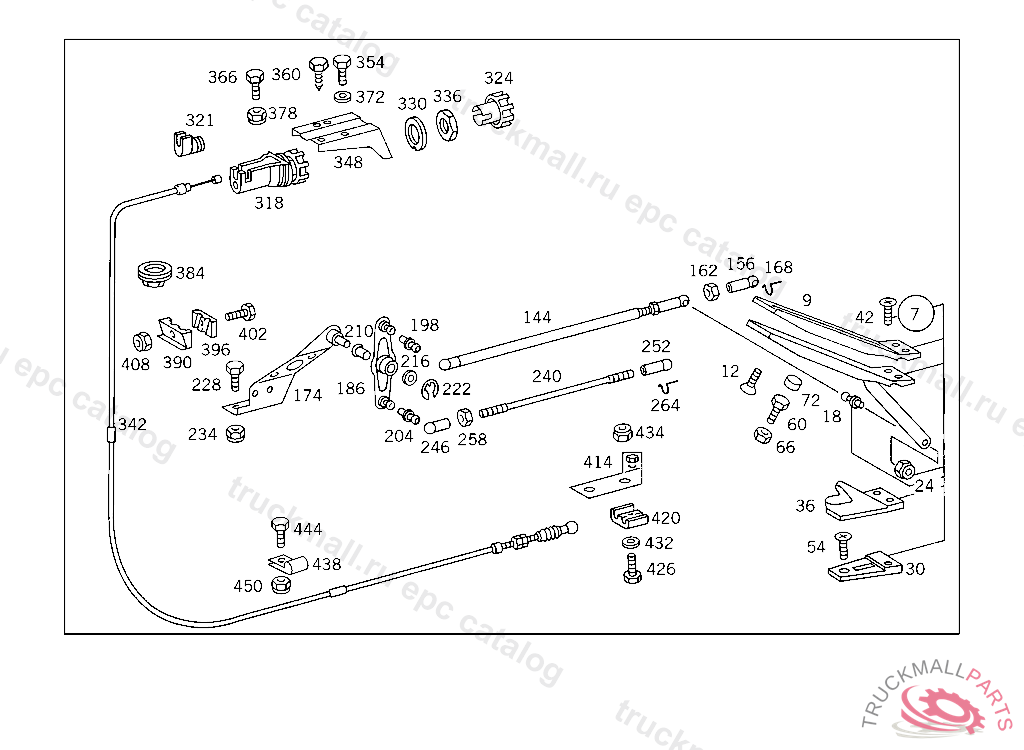

Поз.
Артикул
Описание
7
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
7
ACCELERATOR PEDAL , Replaced By: A6243000304
9
PAD ACCELERATOR PEDAL
12
SCREW ACCELERATOR PEDAL
18
BALL PIVOT LOAD SENSOR
24
NUT PUMP TO BRACKET
24
NUT , Replaced By: N913004006001
30
SHIM ACCELERATOR PEDAL
36
BOOT ACCELERATOR PEDAL
42
SCREW ACCELERATOR PEDAL TO CAB M 6X25
54
SCREW ACCELERATOR PEDAL TO CAB M 6X20
60
SCREW VALVE TO BRACKET
60
SCREW VALVE TO BRACKET, Replaced By: N304014008002
66
NUT
72
STOP ACCELERATOR PEDAL
144
ROD LOAD SENSOR CONTROL
144
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER, 415 5 014668 416 5 000515 417 4 972023
156
BALL SOCKET PULL ROD TO LEVER
162
NUT BALL PIVOT TO LEVER
168
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
174
BEARING BRACKET INTERMEDIATE BEARING
174
BEARING BRACKET ,5 181099, Replaced By: A6203000536, +002A6153010088
186
LEVER INTERMEDIATE BEARING
186
LEVER , Replaced By: A6153000628
198
BALL PIVOT LEVER
198
BALL PIVOT , Replaced By: A3129910120
204
BALL PIVOT BOTTOM B13X5 MM
210
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
216
COVERING INTERMEDIATE BEARING
216
COVERING , Replaced By: A6153010088
222
LOCK PLATE INTERMEDIATE BEARING
228
SCREW END PIECE TO EXHAUST PIPE M 10X25
234
NUT STRAP TO BRACKET
234
NUT , Replaced By: N910113010000
240
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
246
BALL SOCKET ROD TO BALL PIVOT
252
BALL SOCKET ROD TO BALL PIVOT
258
NUT
264
SECURING CLIP. CIRCLIP
318
MANUAL CONTROL IDLING ADJUSTMENT
321
GUIDE MANUAL CONTROL
324
KNOB MANUAL CONTROL
330
FITTED WASHER MANUAL CONTROL
336
NUT MANUAL CONTROL
342
WIRE CABLE IDLING ADJUSTMENT
342
WIRE CABLE IDLING ADJUSTMENT, ONLY VALID FOR ENGINE 356.999
348
BRACKET
354
SCREW COVER PLATE TO COVER PLATE M 6 X 12
354
SCREW , Replaced By: N304017006018
360
COMBINATION BOLT BRACKET TO WINDOW SILL GIRDER
360
SHEET METAL SCREW , Replaced By: N914031005208
366
SCREW PUMP TO BRACKET
366
SCREW , Replaced By: N304017006016
372
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
378
NUT PUMP TO BRACKET
378
NUT , Replaced By: N913004006001
384
GROMMET WIRE CABLE THRU WINDOW SILL
390
CLAMPING PIECE FLEXIBLE SHAFT TO CAB FIRE WALL
390
CLAMPING PIECE WIRE CABLE TO FIRE WALL
396
CLAMPING PIECE FLEXIBLE SHAFT TO FRAME SIDE MEMBER
396
CLAMPING PIECE CABLE PULL TO FIRE WALL
402
SCREW CONNECTOR
408
NUT PUMP TO BRACKET
408
NUT , Replaced By: N913004006001
414
BRACKET WIRE CABLE TO FRAME SIDE MEMBER, 415 5 014669 416 5 000516 417 4 972024
414
BRACKET CABLE TO RADIATOR MOUNTING
420
CLAMPING PIECE CABLE TO BRACKET
420
CLAMPING PIECE FLEXIBLE SHAFT TO BUMPER SUPPORT
426
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
426
SCREW CAB FLOOR COVERING M 6X25
432
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
434
NUT PUMP TO BRACKET
434
NUT , Replaced By: N913004006001
438
CLAMP WIRE CABLE TO BRACKET
444
SCREW END PIECE TO EXHAUST PIPE M 10X25
450
NUT STRAP TO BRACKET
450
NUT , Replaced By: N910113010000
999
BRACKET , Replaced By: A3813020240
999
LOCK , Replaced By: N000988030003
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
999
SERRATED WASHER ACCELERATOR PEDAL TO CAB, ELIMINATED,NO LONGER REQUIRED
