Поз.
Артикул
Описание

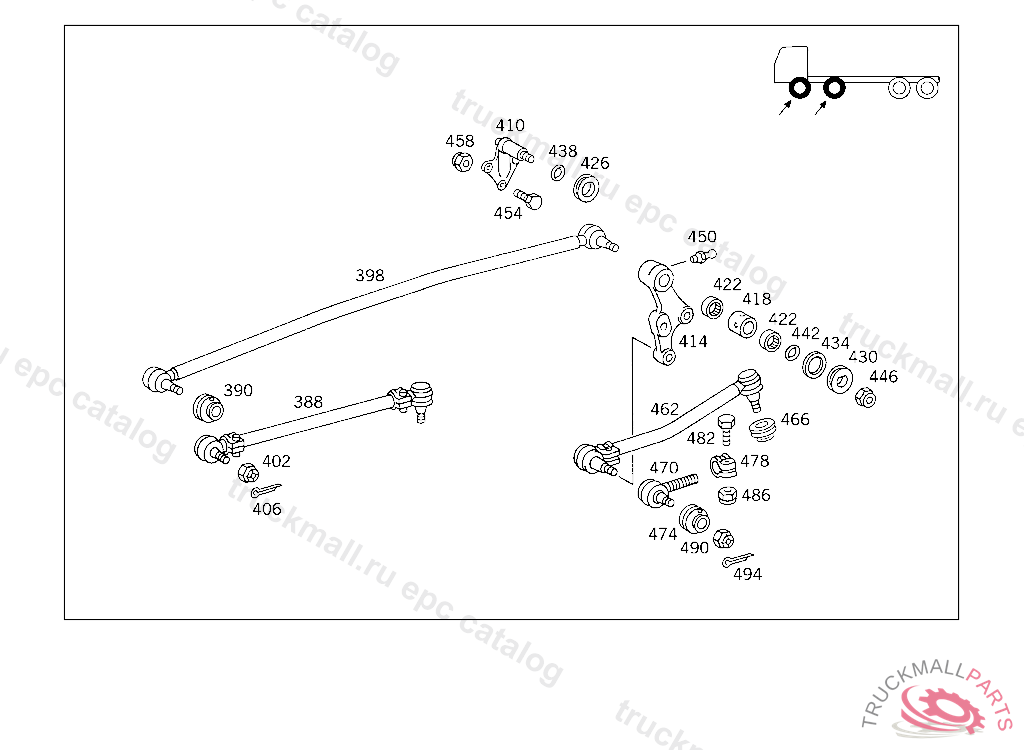

388
DRAG LINKEHRENREICH
388
DRAG LINK , Replaced By: A6224601505
388
DRAG LINKLEMFOERDER
388
DRAG LINK , Replaced By: A6224501405
390
BOOT DRAG LINK
398
DRAG LINK FROM PITMAN ARM TO STEERING BRACKET
398
DRAG LINK FROM PITMAN ARM TO STEERING BRACKET
402
NUT DRAG LINK TO LEVER
402
NUT , Replaced By: N000937024002
406
COTTER PIN DRAG LINK TO LEVER
410
STEERING SUPPORTI
414
STEERING INTERMEDIATE ARM
418
SPACER TUBE STEERING INTERMEDIATE ARM BEARING TO 622 461 00 40
422
NEEDLE BEARING INSIDE AND OUTSIDE
426
THRUST WASHER , Replaced By: A6574630162
430
THRUST WASHER , Replaced By: A6574630062
434
SEAL RING INSIDE AND OUTSIDE TO 622 463 01 10
438
SEAL RING INSIDE TO 622 463 01 10
442
SEAL RING OUTSIDE TO 622 463 01 10
446
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
446
NUT , Replaced By: N910113018004
450
GREASE NIPPLE
450
GREASE NIPPLE , Replaced By: N071412008102
454
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
458
NUT CONSOLE TO SUPPORT
458
NUT , Replaced By: N910113016001
462
DRAG LINK FROM INTERMEDIATE LEVER TO FRONT AXLE II EHRENREICH
462
DRAG LINK FROM INTERMEDIATE LEVER TO FRONT AXLE II LEMFOERDER
466
BOOT DRAG LINK END
470
DRAG LINK END R.H. THREAD EHRENREICH
470
DRAG LINK END , Replaced By: A0014602248
470
DRAG LINK END , Replaced By: A0014601248, +001A0019905451
470
DRAG LINK END R.H. THREAD EHRENREICH
470
DRAG LINK END , Replaced By: A0014607748
470
DRAG LINK END , Replaced By: A0014602248
470
DRAG LINK END , Replaced By: A0014600848
474
BOOT DRAG LINK END
478
CLAMP DRAG LINK END TO DRAG LINK EHRENREICH
478
CLAMP DRAG LINK END TO DRAG LINK LEMFOERDER
482
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
482
SCREW , Replaced By: N308676012017
486
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
486
NUT , Replaced By: N910113012003
490
NUT DRAG LINK TO LEVER
490
NUT , Replaced By: N000937024002
494
COTTER PIN DRAG LINK TO LEVER
999
WASHER
999
SPACER TUBE
999
INDICATOR , Replaced By: A0105429317
999
NUT DRAG LINK END M 24X1.5
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
999
HOSE , Replaced By: A3859971582
999
BRACKET , Replaced By: A3604292940
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
HOSE , Replaced By: A3859971582
999
BRACKET , Replaced By: A3604293140
999
LINE , NOT USED
999
LINE RETURN, FROM STEERING TO OIL TANK,5 593344
999
LINE FROM PUMP TO HIGH PRESSURE HOSE, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
999
LINE , Replaced By: A0004291601
999
DRAG LINKLEMFOERDER
999
DRAG LINKLEMFOERDER
999
DRAG LINKLEMFOERDER,5 158233K 218235
999
DRAG LINKLEMFOERDER,5 158233K 218235
999
BRACKET , Replaced By: A3524290740
999
LINE , NOT USED
999
HOSE RETURN, FROM STEERING TO OIL TANK
999
BRACKET DELIVERY LINE TO BRACKET
999
BRACKET AT TRANSMISSION
999
BRACKET , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3875016120
999
BRACKET , Replaced By: A4255530840
999
BRACKET , Replaced By: A6205244040
999
BRACKET , Replaced By: A6574760036
999
SCREW , Replaced By: A4609900601
