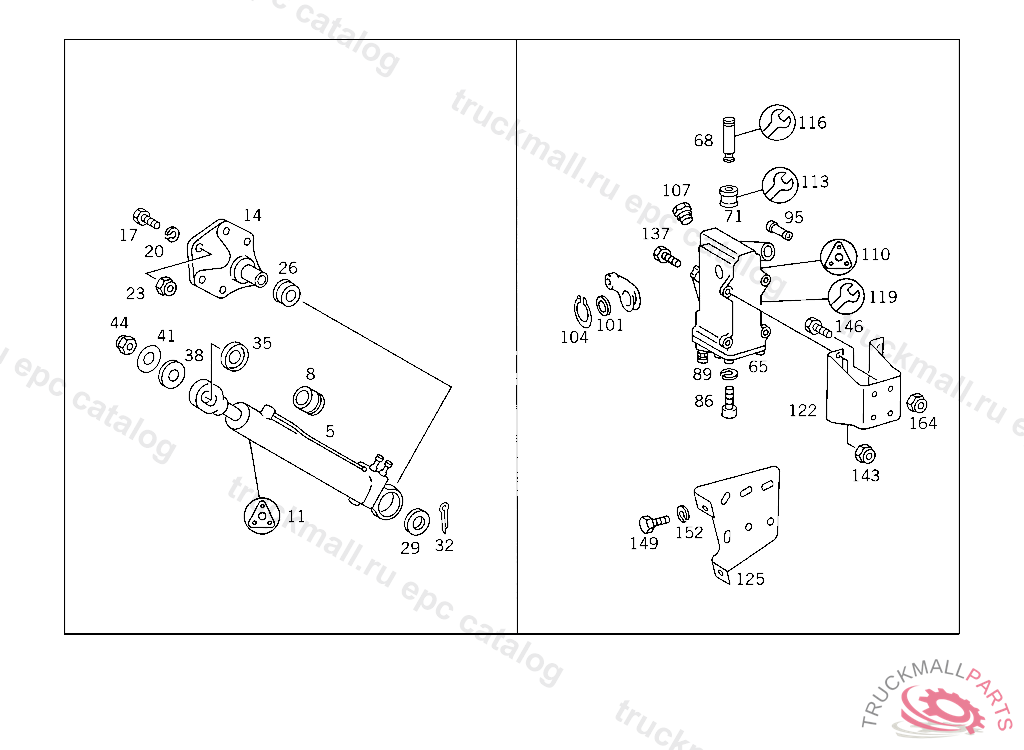

Поз.
Артикул
Описание
5
CYLINDER , Replaced By: A0015533505
5
CYLINDER , Replaced By: A0015539505
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER,4 733732
5
CYLINDER , Replaced By: A0015533605
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING WEBER
5
CYLINDER , Replaced By: A0015533505
5
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER,4 733732
5
CYLINDER , Replaced By: A0015533605
8
GUIDEWEBER
8
GUIDETO 001 553 49 05
11
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
11
GASKET KIT HYDRAULIC CYLINDER WEBER
11
GASKET KIT HYDRAULIC CYLINDER TO 000 553 03 05,000 553 18 05,
11
GUIDE , Replaced By: A0015534905
11
REPAIR KIT , Replaced By: A0005501535
14
BEARING BRACKET HYDRAULIC CYLINDER
17
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
17
SCREW BEARING BRACKET TO FRAME
17
SCREW , Replaced By: N000961012051
20
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
20
LOCK WASHER FITTING TO BRACKET
23
NUT STEERING SUPPORT TO FRAME
23
NUT , Replaced By: N910113014000
23
NUT END PIECE TO EXHAUST PIPE
26
BUSHING HYDRAULIC CYLINDER TO BEARING BRACKET
29
WASHER HYDRAULIC CYLINDER TO CAB
32
COTTER PIN6,3X36 MM
35
WASHER HYDRAULIC CYLINDER TO CAB
38
WASHER HYDRAULIC CYLINDER TO CAB
41
WASHER HYDRAULIC CYLINDER TO CAB
44
NUT COMBINATION CYLINDER TO BEARING BRACKET
44
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
65
PUMP (HAND PUMP) POWER PACKER,4 733732
65
PUMP (HAND PUMP) POWER PACKER,4 733732
65
PUMP (HAND PUMP) POWER PACKER,4 733732
65
PUMP , Replaced By: A0005536501
65
PUMP (HAND PUMP) WEBER
65
PUMP , Replaced By: A0005537901
68
PISTONTO 000 553 79 01,WEBER
68
PISTONTO 000 553 39 01,WEBER
71
VALVETO 000 553 79 01,WEBER
71
VALVETO 000 553 39 01,WEBER
71
VALVETO 000 553 23 01,000 553 37 01,
86
SCREW
86
SCREW , Replaced By: N000000000190
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
95
FILTER
101
FITTED WASHER
104
LOCK RING
107
SCREWTO 000 553 65 01,000 553 69 01,
107
SCREW
107
SCREW OIL FILLING TO 000 553 89 01
110
GASKET KIT HAND PUMP
110
GASKET KIT HAND PUMP TO 000 553 37 01,000 553 39 01,WEBER
110
GASKET KIT , Replaced By: A0005502583
113
REPAIR KIT VALVE TO 000 553 54 01,POWER-PACKER,4 733732
116
REPAIR KIT PISTON TO 000 553 54 01,POWER-PACKER,4 733732
119
REPAIR KIT HAND PUMP TO 000 553 65 01,000 553 69 01,
119
REPAIR KIT , Replaced By: A0005502355
119
REPAIR KIT , Replaced By: A0005530880
122
BRACKET HAND PUMP
125
BRACKET HAND PUMP
137
SCREW BRACKET TO SIDE MEMBER
137
SCREW , Replaced By: N304017010002
143
NUT STRAP TO BRACKET
143
NUT , Replaced By: N910113010000
146
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
149
HEXALOBULAR BOLT. SCREW MANUAL PUMP BRACKET TO FENDER BRACKET
149
SCREW. HEXAGON HEAD BOLT , Replaced By: N910143008005
149
SCREW BRACKET TO SIDE MEMBER
149
SCREW , Replaced By: N304017008040
152
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
164
NUT BRACKET TO SIDE MEMBER
