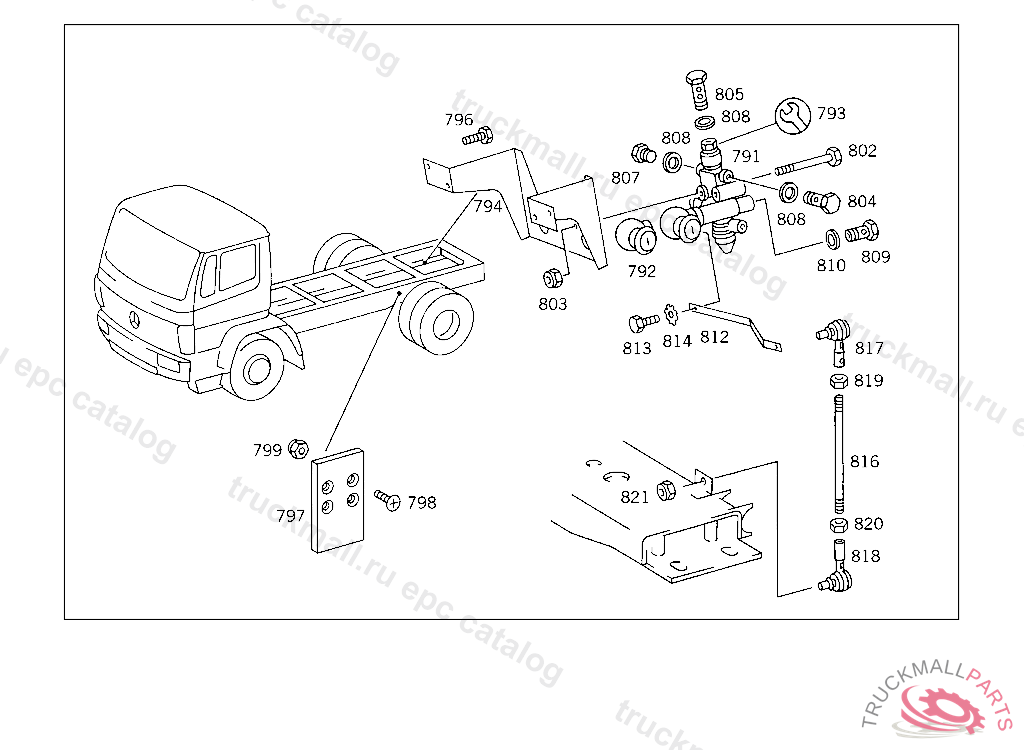

Поз.
Артикул
Описание
791
VALVE SELF-LEVELLING DEVICE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
791
VALVE
792
BOOT
793
REPAIR KIT AIR SPRING VALVE
793
REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS ON KNORR VALVE SV 1280-I/69324, Replaced By: A0003201067
794
BRACKET AIR SPRING VALVE
796
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
796
SCREW END PIECE TO EXHAUST PIPE M 10X25
797
SHIM AT SIDE MEMBER
798
SCREW BRACKET TO APPARATUS SUPPORT
799
NUT STRAP TO BRACKET
799
NUT , Replaced By: N910113010000
802
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
802
SCREW , Replaced By: N304014008001
803
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
803
NUT , Replaced By: N913004008001
804
HOLLOW SCREW HEATING CONNECTION
805
HOLLOW SCREW LINE CONNECTION
807
SCREW PLUGROCKINGER,TYP 59 U150
807
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
807
SCREW PLUG 3/2-WAY VALVE,CONNECTION:,5 363121
808
SEAL RING LINE CONNECTION
809
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
810
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
812
LEVER AIR SPRING VALVE,K 186867
813
SCREW CABLE HARNESS MOUNTING
813
SCREW , Replaced By: N304017008023
814
TOOTHED WASHER LEVER TO AIR SPRING VALVE,K 186867
814
TOOTHED WASHER , Replaced By: N006797008120
816
PULL ROD PNEUMATIC SUSPENSION CONTROL
817
YOKE L.H. THREAD, SELF-LEVELLING DEVICE
817
YOKE L.H. THREAD, SELF-LEVELLING DEVICE
818
YOKE BOTTOM
818
YOKE BOTTOM
819
NUT INTERMEDIATE SPEED STOP
820
NUT
820
NUT , Replaced By: N304032008006
821
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
821
NUT , Replaced By: N913004008001
999
SPACER RINGTO 673 323 00 00, 32X18X5 MM
999
SPACER TUBE TOP TO 005 326 55 00,5 711072
999
BOOT
999
VALVE (CHANGE-OVER VALVE) AUTOMATIC LOAD-DEPENDING BRAKE, 415 5 014668 416 5 000515 417 4 972023
999
REPAIR KIT 3/2-WAY SOLENOID VALVE
999
REPAIR KIT 3/2-WAY VALVE WABCO
999
RUBBER BUFFER AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE, 415 5 014668 416 5 000515 417 4 972023
999
BRACKET AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE,4 602075
999
BRACKET AIR SPRING VALVE
999
BRACKET AUTOMATIC LOAD-DEPENDING BRAKE CHANGEOVER VALVE, 415 5 014668 416 5 000515 417 4 972023
999
GUIDE SIGN TRAILING AXLE LIFT
999
LOCK PLATE VALVE TO BRACKET
999
SCREW , Replaced By: N304017008027
999
NUT , Replaced By: N080705026003
999
NUT 3/2-WAY VALVE TO CAB,4 685151
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
PULL ROD REAR AXLE SELF-LEVELLING DEVICE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
