Поз.
Артикул
Описание

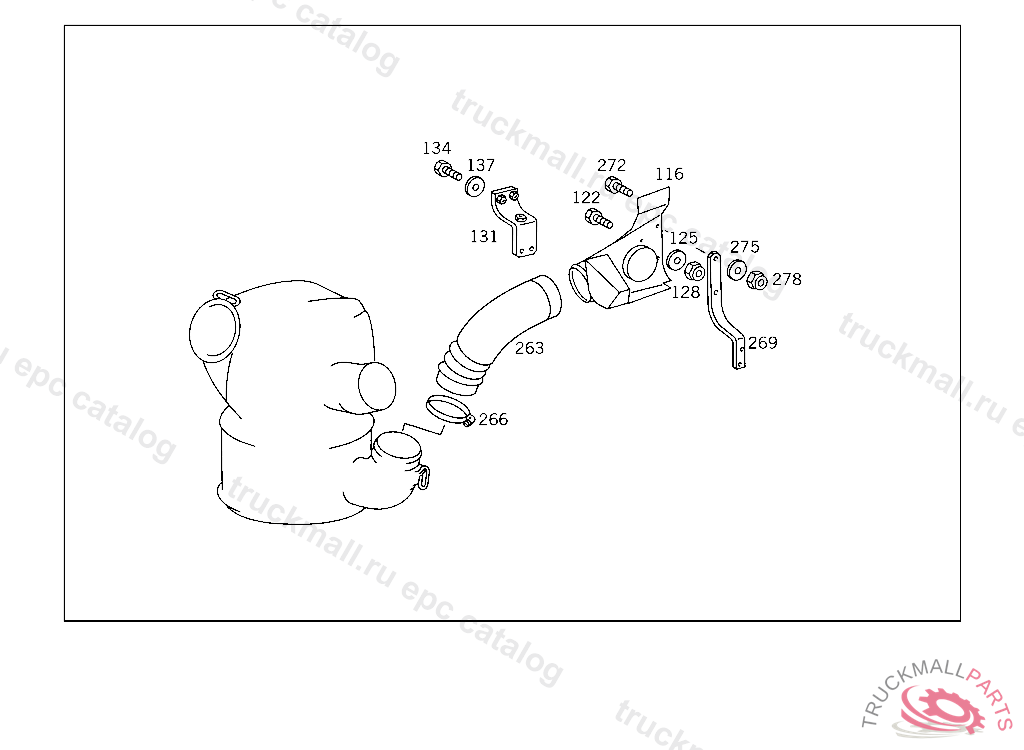

116
SCOOP RIGHT FRONT WHEEL ARCH
116
SCOOP RIGHT FRONT WHEEL ARCH
116
ANTINOISE CAPSULE RIGHT FRONT WHEEL ARCH
122
SCREW BRACKET ON LOAD SENSOR
122
SCREW PIPE CLAMP
122
SCREW , Replaced By: N304017008021
122
SCREW BRACKET ON LOAD SENSOR
125
WASHER COMPRESSED AIR LINE TO BRACKET
125
WASHER , Replaced By: N009021006208
128
NUT PUMP TO BRACKET
128
NUT , Replaced By: N913004006001
131
BRACKET ANTINOISE CAPSULE
134
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
134
SCREW PIPE CLAMP
134
SCREW , Replaced By: N304017008016
134
SCREW , Replaced By: N304017008021
137
WASHER BRACKET TO LEFT SIDE MEMBER
137
WASHER , Replaced By: N009021008213
263
HOSE FROM AIR CLEANER TO INTAKE PIPE
263
HOSE FROM AIR CLEANER TO INTAKE PIPE
263
HOSE FROM AIR CLEANER TO INTAKE PIPE
263
HOSE FROM AIR CLEANER TO INTAKE PIPE
263
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
266
CLAMP FROM AIR CLEANER TO HOT AIR INTAKE PIPE
266
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, TO BE ADAPTED DURING ASSEMBLY
266
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
266
CLAMP , Replaced By: A0059971490
269
BRACKET ANTINOISE CAPSULE TO BRACKET
272
SCREW , Replaced By: N304017008034
272
SCREW , Replaced By: N304017008034
275
WASHER BRACKET TO LEFT SIDE MEMBER
275
WASHER , Replaced By: N009021008213
278
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
278
NUT , Replaced By: N913004008001
999
HOSE
999
EDGE GUARD SECTION PROTECTION AGAINST SCORING, ORDER BY THE METER
999
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER , Replaced By: A0110942602
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER
999
AIR CLEANER AIR INTAKE
999
HOSE
999
AIR CLEANER ,4 716110
999
AIR CLEANER (INTAKE MUFFLER)
999
BRACKET MUFFLER TO SIDE MEMBER,4 716110
999
CLAMP BOOT TO INTAKE PIPE
999
BRACKET MUFFLER TO SIDE MEMBER,4 716110
999
SPACER TUBE , Replaced By: A3953250053
999
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
999
AIR INTAKE PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6215280182
999
STRAP AIR CLEANER TO SUPPORT
999
BRACKET , Replaced By: A3875285940
999
COOLING WATER PIPE FROM WATER PUMP TO EXPANSION TANK
999
BRACKET , Replaced By: A3834929141
999
ANTINOISE CAPSULE RIGHT
999
BRACKET COVERING
999
BRACKET COVERING
999
BRACKET REAR
999
COVERING RIGHT
999
STRAP AIR CLEANER
999
BRACKET , Replaced By: A3434290940
999
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
999
LEDGE , Replaced By: A0019877625
999
LEDGE
999
STRAP INTAKE MUFFLER
999
BRACKET MUFFLER TO SIDE MEMBER
999
HOSE FROM MUFFLER TO AIR INTAKE PIPE
999
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
SCOOP AIR INTAKE, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
SCOOP AIR INTAKE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
AIR INTAKE PIPE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
AIR INTAKE PIPE
999
AIR INTAKE PIPE AIR INTAKE
999
COVERING
999
BRACKET , Replaced By: A3464310440
999
BRACKET , Replaced By: A6243230340
999
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
999
BRACKET , Replaced By: A3875205841
999
HOSE FROM AIR CLEANER TO CLEAN AIR INTAKE PIPE
999
BRACKET , Replaced By: A6215280440
999
BOOT FROM AIR CLEANER TO INTAKE FITTING,5 946572
999
CLAMP BOOT TO INTAKE PIPE
999
BOOT AIR INTAKE
999
BRACKET AIR CLEANER,REAR
999
BRACKET ,K 000843K 000844, Replaced By: A6555282340, +002N000961016009, +002N913004016004
999
BRACKET AIR CLEANER,REAR RIGHT
999
SUPPORT AIR CLEANER,K 000844
999
BOOT
999
ANTINOISE CAPSULE RIGHT FRONT
999
BRACKET ANTINOISE CAPSULE
999
SCOOP RIGHT FRONT WHEEL ARCH
999
ANTINOISE CAPSULE RIGHT FRONT
999
AIR INTAKE PIPE
999
ANTINOISE CAPSULE RIGHT CENTRAL
999
ENGINE HOOD RIGHT CENTRAL
999
ANTINOISE CAPSULE , Replaced By: A6525200104
999
BRACKET ANTINOISE CAPSULE
999
BRACKET ANTINOISE CAPSULE,LEFT
999
BRACKET ANTINOISE CAPSULE, TO BE ADAPTED DURING ASSEMBLY
999
HOSE FROM AIR CLEANER TO INTAKE FITTING
999
BRACKET MUFFLER TO SIDE MEMBER
999
BRACKET MUFFLER TO SIDE MEMBER
999
BRACKET RIGHT SHOCK ABSORBER
999
MUFFLER AIR CLEANER
999
HOSE FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
BRACKET AIR INTAKE PIPE TO SUPPORT
999
BRACKET
999
BRACKET
999
BRACKET AIR CLEANER,FRONT RIGHT,K 000844
999
BRACKET AIR CLEANER,FRONT RIGHT
999
CONSOLE RIGHT SHOCK ABSORBER
999
SCOOP RIGHT FRONT WHEEL ARCH
999
ANTINOISE CAPSULE , Replaced By: A6565200004
999
ANTINOISE CAPSULE RIGHT CENTRAL WHEEL ARCH
999
BRACKET FENDER AND SHOCK ABSORBER,RIGHT
999
HOSE , Replaced By: A9415281182
999
HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304014008002
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW REAR EXHAUST PIPE TO MUFFLER
999
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
SCREW , Replaced By: N308676012026
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: N308676014020
999
SCREW AIR CLEANER SUPPORT TO SIDE MEMBER, FRONT,K 000844
999
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER
999
CLAMP , Replaced By: N071555100501
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
SCREW VALVE TO BRACKET
999
SCREW SUPPORT TO FENDER
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT STRAP TO BRACKET
999
NUT SUPPORT TO SIDE MEMBER
999
NUT BRACKET TO SIDE MEMBER
999
NUT COMBINATION CYLINDER TO BEARING BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
999
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
999
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE
