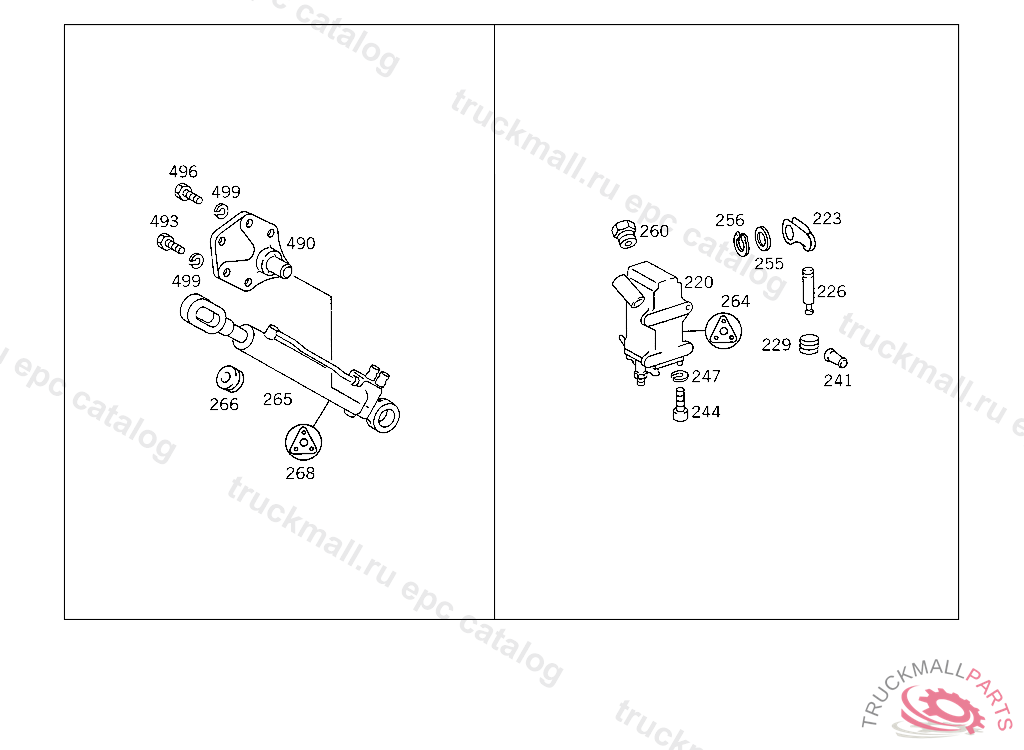

Поз.
Артикул
Описание
220
PUMP (HAND PUMP) WEBER
220
PUMP (HAND PUMP), FOR COMPONENT PARTS SEE SPARE PARTS LIST
223
LEVERTO 000 553 37 01,000 553 39 01,WEBER
226
PISTONTO 000 553 79 01,WEBER
226
PISTONWEBER,TO 000 553 40 01
226
PISTON , Replaced By: A0005531990
229
VALVETO 000 553 79 01,WEBER
229
VALVEWEBER,TO 000 553 40 01
229
VALVETO 000 553 88 01
241
FILTER
244
SCREW
244
SCREW , Replaced By: N000000000190
247
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
255
FITTED WASHER
256
LOCK RING
260
SCREW
260
SCREW OIL FILLING TO 000 553 89 01
260
SCREW , Replaced By: A0009901310
264
GASKET KIT HAND PUMP
264
GASKET KIT HAND PUMP
264
GASKET KIT HAND PUMP
265
CYLINDER POWER CYLINDER, UP TO IDENT NO. 5 070891,FROM IDENT NO. SEE SA 31 460
265
CYLINDER , Replaced By: A0015534605
265
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
265
CYLINDER , Replaced By: A0015534805
266
GUIDEWEBER,TO 001 553 45 05
266
GUIDEWEBER,TO 000 553 75 05, UP TO IDENT NO. 5 070891,FROM IDENT NO. SEE SA 31 460
266
GUIDEWEBER,TO 001 553 45 05
266
GUIDEWEBER,TO 000 553 87 05
268
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
268
GASKET KIT HYDRAULIC CYLINDER WEBER,TO 000 553 87 05
268
GASKET KIT HYDRAULIC CYLINDER POWER PACKER
268
GASKET KIT HYDRAULIC CYLINDER WEBER,TO 000 553 87 05
490
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
490
BEARING BRACKET HYDRAULIC CYLINDER
490
BEARING BRACKET HYDRAULIC CYLINDER
490
BEARING BRACKET POWER CYLINDER
493
SCREW EXHAUST PIPE AND PIPE CLAMP TO BRACKET
493
SCREW HYDRAULIC CYLINDER BEARING BRACKET TO FRAME M 16X25
496
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
496
HEXAGON HEAD BOLT , Replaced By: A0029902704
496
SCREW , Replaced By: N308676012013
496
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
496
SCREW , Replaced By: N308676012012
496
SCREW BRACKET TO SUPPORT
496
HEXAGON HEAD BOLT. SCREW ENGINE MOUNTING TO SUPPORT,ON CLUTCH END M 14X30
496
SCREW , Replaced By: N308676014003
499
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
499
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
PUMP , Replaced By: A0005536501
999
PUMP (HAND PUMP) POWER PACKER,4 733732
999
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
999
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
MOUNTING (RUBBER BUFFER)
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
FLANGE HOLLOW RUBBER SPRING
999
BUFFER (HOLLOW RUBBER SPRING),CAB
999
BUSHING SPRING
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
RUBBER BUFFER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
WASHER BEARING BRACKET
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6205860031
999
RAIL , Replaced By: A3878901222
999
RAIL , Replaced By: A6558900122
999
SHIM , Replaced By: A3878910498
999
SPACER TUBE MOUNTING TO CONSOLE
999
SPACER TUBE VIBRATION ABSORBER TO CONSOLE
999
SPRING CAB SUSPENSION,FRONT
999
BRACKET BUFFER
999
SPRING (LEAF SPRING),CAB SUSPENSION
999
WASHER STABILIZER TO BEARING
999
LEVER (TILTING LEVER),CAB
999
LEVER (TILTING LEVER),CAB
999
MOUNTING LEFT SIDE MEMBER
999
MOUNTING CAB, RIGHT
999
MOUNTING , Replaced By: A6558910320
999
MOUNTING , Replaced By: A6558910420
999
MOUNTING CAB,LEFT
999
MOUNTING CAB, RIGHT
999
MOUNTING LEFT VIBRATION ABSORBER
999
MOUNTING RIGHT VIBRATION ABSORBER
999
BEARING BRACKET LINK,5 172818
999
STRUT BUMPER,LEFT
999
STRUT BUMPER,RIGHT
999
WASHER VIBRATION ABSORBER TO BEARING AND TO CAB
999
STRUT BUMPER,LEFT
999
STRUT BUMPER,RIGHT
999
SPACER TUBE
999
BOW VIBRATION ABSORBER TO BEARING AND TO CAB,5 500828
999
CONSOLE CAB SUSPENSION,FRONT LEFT
999
CONSOLE CAB SUSPENSION,FRONT RIGHT
999
STABILIZER , Replaced By: A6528900104
999
MOUNTING SPRING AND STABILIZER,LEFT
999
MOUNTING SPRING AND STABILIZER,RIGHT
999
WASHER HOLLOW RUBBER SPRING
999
WASHER , Replaced By: A6558910210
999
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
