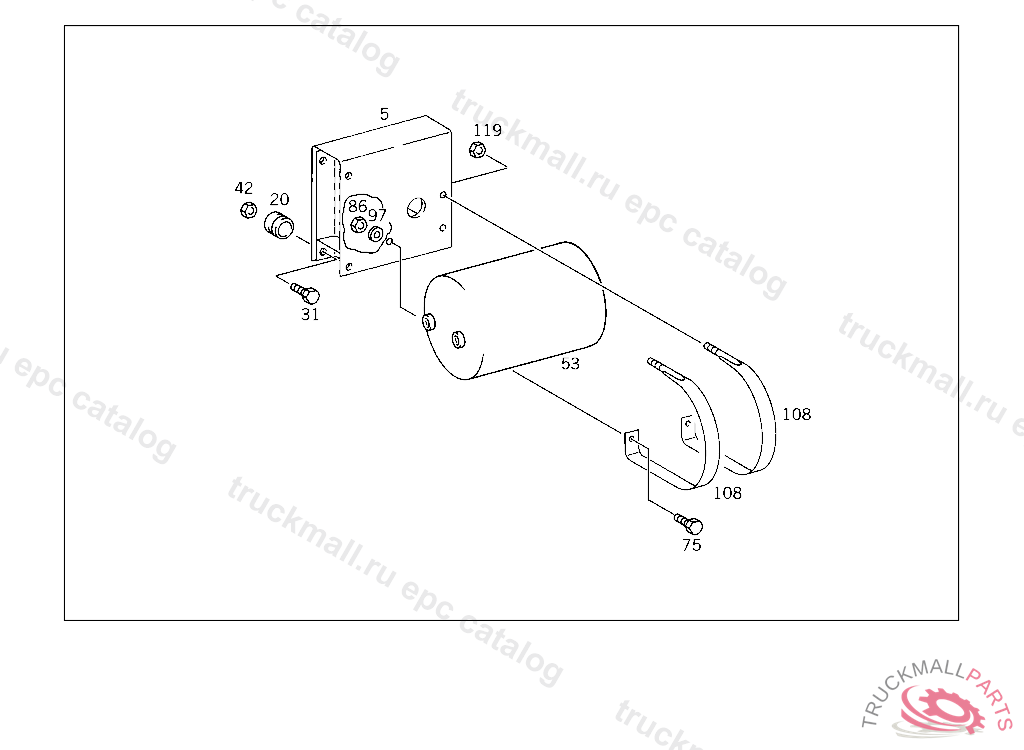

Поз.
Артикул
Описание
5
SUPPORT REAR CONSOLE TO FRAME
20
GROMMET ,5 585846
31
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
42
NUT BRACKET TO SIDE MEMBER
42
NUT , Replaced By: N910113014001
53
RESERVOIR20L,246 MM,12.5 BAR
75
SCREW BRACKET TO CROSS MEMBER M 10X40
75
SCREW , Replaced By: N308676010023
75
SCREW , Replaced By: N000961010031
86
HEXAGON NUT
86
NUT , Replaced By: N910113010002
97
WASHER RADIATOR TO RUBBER MOUNTING
108
STRAP AIR RESERVOIR TO BRACKET
119
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
119
NUT , Replaced By: N308673010000
999
RESERVOIR , Replaced By: A0014327501
999
RESERVOIR , Replaced By: A0034321201
999
STRAP , Replaced By: A3874300640
999
SUPPORT LEFT AIR RESERVOIR
