Поз.
Артикул
Описание

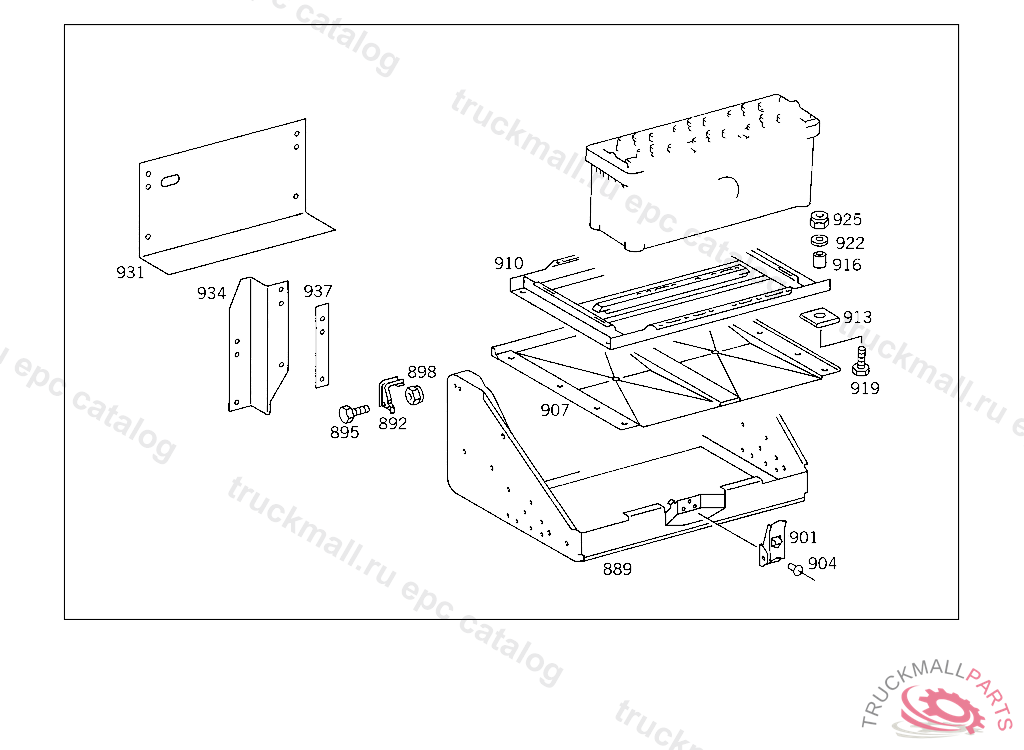

889
BATTERY SUPPORT , TO BE ADAPTED DURING ASSEMBLY
892
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
892
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
895
SCREW LICENSE PLATE TO BRACKET
895
SCREW , Replaced By: N304017006020
898
NUT PUMP TO BRACKET
898
NUT , Replaced By: N913004006001
901
LOCKING HANDLE PROTECTIVE PLATE TO APPARATUS SUPPORT
901
FASTENING CLAMP BATTERY/APPARATUS SUPPORT
901
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
904
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
907
BATTERY CASE
910
RAIL. BATTERY BASE FRAME
913
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
916
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
919
SCREW BRACKET TO FRAME SIDE MEMBER
922
WASHER STRUT TO CROSS MEMBER
922
WASHER , Replaced By: N007349010007
925
NUT STRAP TO BRACKET
925
NUT , Replaced By: N910113010000
931
PROTECTIVE PLATE (HEAT SHIELD)
934
BASE APPARATUS SUPPORT TO FRAME SIDE MEMBER
937
SHIM SUPPORT TO SIDE MEMBER
937
SHIM , Replaced By: A3974750084
999
FITTING AIR RESERVOIR,CONNECTION: "11"
999
GASKET KITKNORR
999
BRACKET BRAKE POWER REGULATOR TO CROSS MEMBER
999
BALL PIVOT BEARING BRACKET, IN CASE OF CAST AXLE
