Поз.
Артикул
Описание

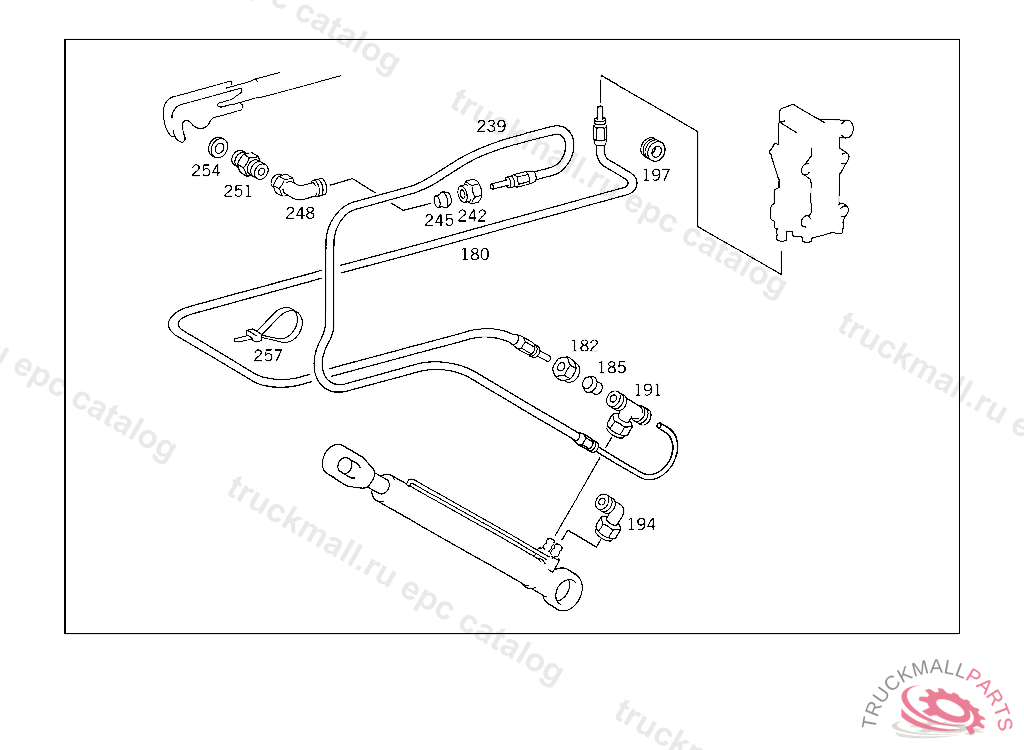

180
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
180
HOSE , Replaced By: A6555530582
180
HOSE FROM CYLINDER TO PUMP
182
UNION NUT
182
UNION NUT
185
SEAL CONE
185
SEAL CONE
185
GLAND , Replaced By: A0019901667
191
T-FITTING. FITTING AT INJECTION PUMP
191
T-FITTING. FITTING AT INJECTION PUMP
194
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
194
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
194
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
194
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
197
GROMMET HIGH PRESSURE HOSE THRU FRAME
239
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
239
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
239
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
239
HOSE , Replaced By: A3805530082
239
HOSE , Replaced By: A3975530082
239
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER 2820MM,5 126157 10/50 UP TO IDENT NO. 5 202493 20/60 UP TO IDENT NO. 5 202933
239
HOSE , Replaced By: A6745530182
242
UNION NUT
245
SEAL CONE
245
GLAND , Replaced By: A0019901667
248
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
248
FITTING , Replaced By: A0019909871
251
FITTING 3/2-WAY VALVE,CONNECTION: "30"
254
SEAL RING PNEUMATIC VALVE
254
SEAL RING , Replaced By: N007603010110
257
LOOM TIE LINE MOUNTING 280 MM
257
LOOM TIE LINE MOUNTING
999
FITTINGWEBER,TO 001 553 35 05
999
FITTING
999
SCREW OIL FILLING TO 000 553 89 01
