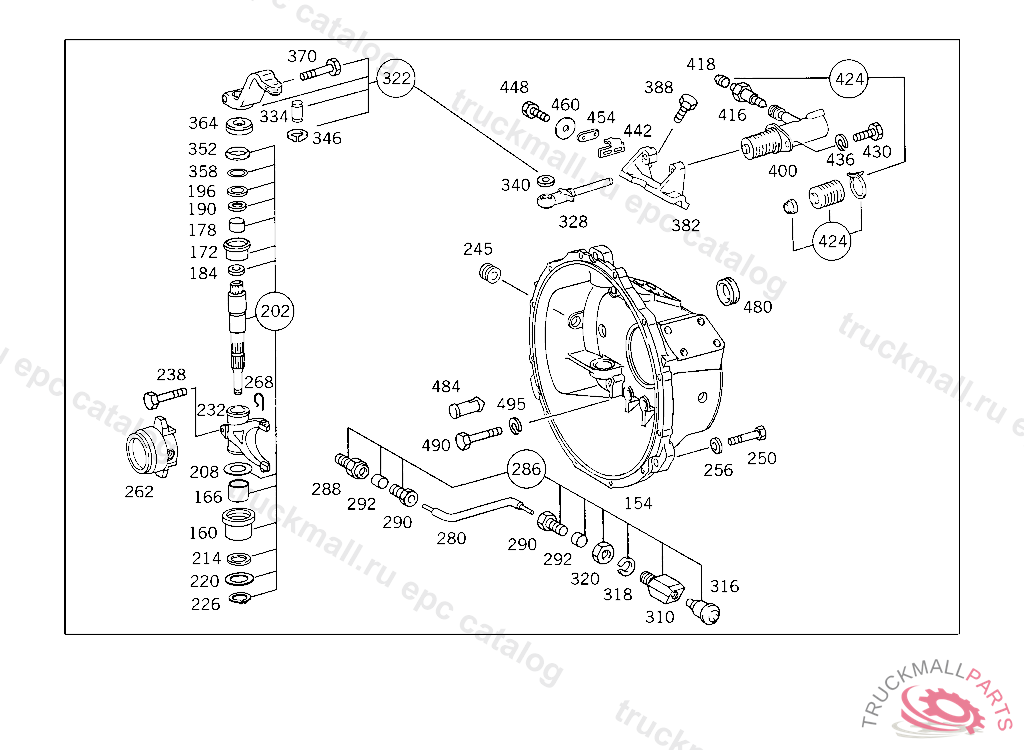

Поз.
Артикул
Описание
154
HOUSING BELL HOUSING WITH BUSHINGS
160
BUSHING RELEASE SHAFT,BOTTOM
166
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
172
BUSHING RELEASE SHAFT,TOP
178
BUSHING RELEASE SHAFT,TOP 35X39 MM
184
SEAL RING RELEASE SHAFT,TOP
190
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
196
COVER PLATE RELEASE SHAFT,TOP
202
SHAFT (PARTS KIT),RELEASE SHAFT
208
WASHER AS REQUIRED 1.3 MM
208
WASHER AS REQUIRED 1.20 MM
208
WASHER AS REQUIRED 1.10 MM
208
WASHER AS REQUIRED 1.00 MM
208
WASHER AS REQUIRED 0.90 MM
208
WASHER AS REQUIRED 0.80 MM
214
SEAL RING BOTTOM
220
SPACER WASHER RELEASE SHAFT,BOTTOM
226
LOCK RING RELEASE SHAFT,BOTTOM
232
RELEASE LEVER CLUTCH ACTUATION
238
SCREW RELEASE LEVER TO SHAFT
238
SCREW , Replaced By: N304017012018
238
SCREW , Replaced By: N000933012102
250
SCREW RADIATOR M 10X45
256
WASHER RADIATOR TO RUBBER MOUNTING
256
WASHER , Replaced By: N000125010532
262
RELEASE BEARING CLUTCH ACTUATION
262
RELEASE BEARING CLUTCH ACTUATION
268
SPRING RELEASE BEARING TO RELEASE LEVER
280
HOSE RELEASE COLLAR LUBRICATION 220 MM
286
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
288
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
290
UNION SCREW RELEASE COLLAR LUBRICATION
292
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
310
GREASE NIPPLE RELEASE COLLAR LUBRICATION
310
INTERMEDIATE PIECE ,5 190179, Replaced By: A6209970088, +001A6209880135
316
CAP RELEASE BEARING LUBRICATION
316
GREASE CUP ,5 190179, Replaced By: A6209880135, +001A6209970088
318
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
320
NUT RELEASE BEARING LUBRICATION
320
NUT , Replaced By: N308675014002
320
NUT , Replaced By: N308675014000
322
LEVER (PARTS KIT),CLUTCH ACTUATION
328
ROD END CLUTCH ACTUATION,5 504835
328
ROD END CLUTCH ACTUATION
334
PIN ROD END TO RELEASE LEVER,5 504835
334
PIN CLUTCH ACTUATION
340
SEAL RING CLUTCH ACTUATION
340
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
346
LOCK RINGTO 000 553 37 01,000 553 39 01,
364
COVER RELEASE SHAFT,TOP
364
COVER , EXHAUST STOCK OF OLD PART NUMBER FISRT UP TO 5 091743, Replaced By: A6202500155
370
SCREW PIPE ELBOW TO BRACKET M 10X50
370
SCREW , Replaced By: N304017010053
382
BRACKET CLUTCH ACTUATION
388
SCREW BRACKET TO SIDE MEMBER
388
SCREW , Replaced By: N304017010002
400
SLAVE CYLINDER CLUTCH ACTUATION
400
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
400
SLAVE CYLINDER CLUTCH ACTUATION
400
SLAVE CYLINDER , Replaced By: A0012955307
416
VALVE CLUTCH SLAVE CYLINDER
418
PROTECTIVE CAP ,5 962906
418
PROTECTIVE CAP , Replaced By: A0004217187
418
PROTECTIVE CAP , Replaced By: A0004210887
424
REPAIR KIT CLUTCH SLAVE CYLINDER
424
REPAIR KIT , Replaced By: A0002900911
430
SCREW BRACKET TO SIDE MEMBER
430
SCREW , Replaced By: N304017010002
436
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
442
POINTER CLUTCH LINING WEAR, 396.3 10/20 6 900235 396.3 50/60 5 353180 396.4 NOT USED
448
SCREW COVER PLATE TO BRACKET
454
LOCK POINTER TO CLUTCH ACTUATION BRACKET, 396.3 10/20 6 900235 396.3 50/60 5 353180 396.4 NOT USED
460
WASHER COMPRESSED AIR LINE TO BRACKET
460
WASHER , Replaced By: N009021006208
490
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
490
SCREW BRACKET TO ENGINE MOUNTING
490
SCREW , Replaced By: N308676016015
495
LOCK WASHER BELL HOUSING TO TRANSMISSION
495
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
BEARING TOP
999
LOCK
999
VALVE , Replaced By: A3075530107
999
SEAL RING WEAR INDICATOR
999
LEVER CLUTCH ACTUATION,4 601610
999
SHAFT (CLUTCH RELEASE SHAFT)
999
RELEASE LEVER ,5 504835, Replaced By: A6202540708, +001A0002540335, +001A6202950274
999
RELEASE LEVER ,5 504836
999
PIN RELEASE LEVER,5 599536
