Поз.
Артикул
Описание

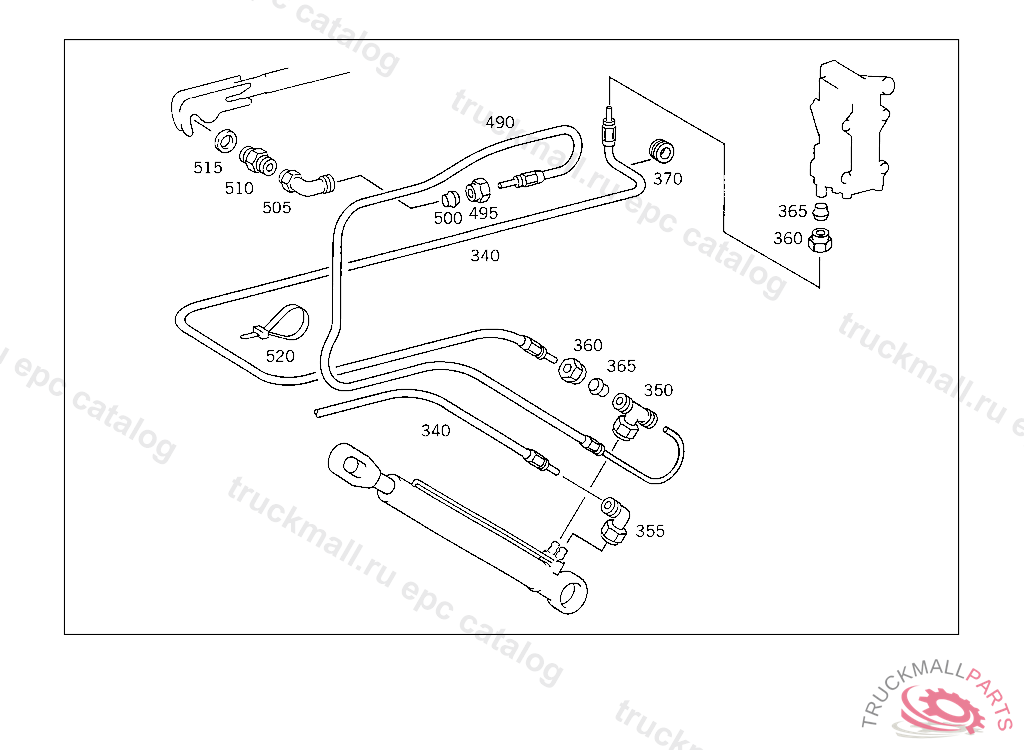

340
HOSE FROM CYLINDER TO PUMP
350
T-FITTING. FITTING AT INJECTION PUMP
355
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
355
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
355
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
355
FITTING , Replaced By: A0019909871
360
UNION NUT
365
SEAL CONE
365
GLAND , Replaced By: A0019901667
370
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
370
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
490
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
490
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL,5 942826
490
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
495
UNION NUT
500
SEAL CONE
500
GLAND , Replaced By: A0019901667
505
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
505
FITTING , Replaced By: A0019909871
510
FITTING 3/2-WAY VALVE,CONNECTION: "30"
515
SEAL RING PNEUMATIC VALVE
515
SEAL RING , Replaced By: N007603010110
520
LOOM TIE LINE MOUNTING
520
LOOM TIE LINE MOUNTING 280 MM
999
FITTING
999
GROMMET LINE THRU FRAME
