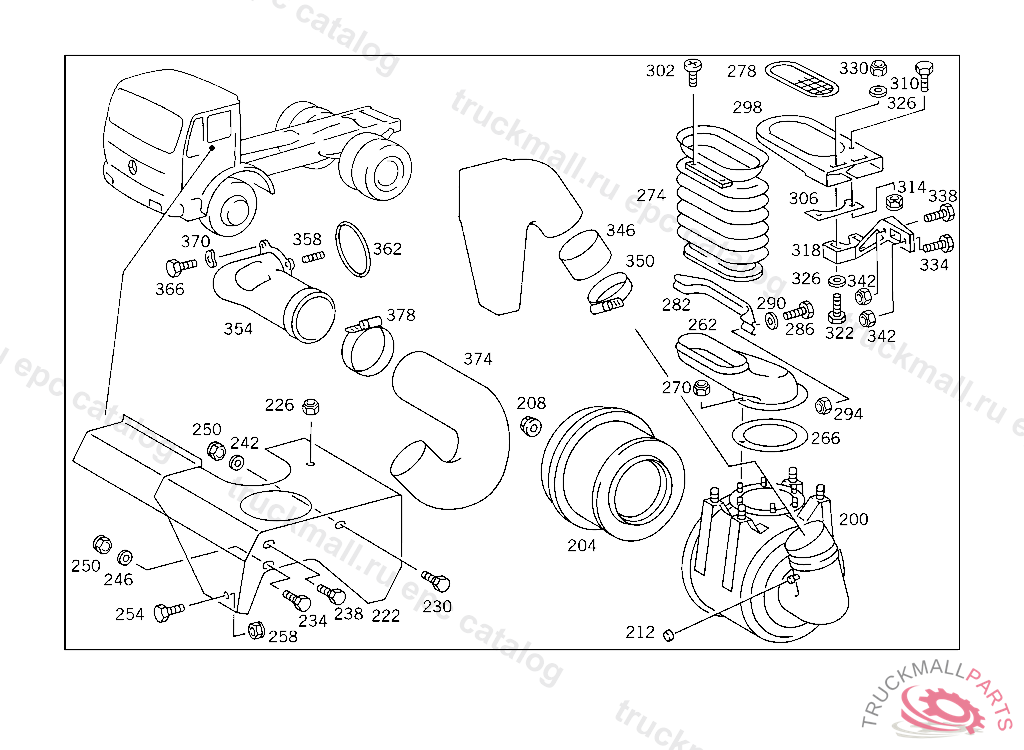

Поз.
Артикул
Описание
200
AIR CLEANERMANN & HUMMEL,4 938205
200
AIR CLEANERMANN & HUMMEL,4 938204
204
FILTER ELEMENT
204
FILTER ELEMENTT0 010 094 15 02
208
NUT
212
WASHER FELT
222
SUPPORT ADDITIONAL WORK ON FRAME
226
NUT SUPPORT TO SIDE MEMBER
230
SCREW STEERING BRACKET TO FRAME
234
SCREW BRACKET TO CAB CONSOLE,K 035197
238
SCREW SUPPORT TO SIDE MEMBER M 14X50
238
SCREW REAR CROSS MEMBER AND GUSSET PLATES TO SIDE MEMBERS M 14X48
242
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
242
WASHER , Replaced By: N000125015019
242
WASHER
246
WASHER BRACKET TO SIDE MEMBER
250
NUT BRACKET TO SIDE MEMBER
250
NUT , Replaced By: N910113014001
254
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
254
SCREW , Replaced By: N308676012026
258
NUT SUPPORT TO SIDE MEMBER
262
PIPE ELBOW (INTAKE PIPE),4 938204
266
GASKET INTAKE PIPE TO AIR CLEANER,4 938204
270
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
270
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
270
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
270
NUT , Replaced By: N913004008001
274
BOOT AIR INTAKE
274
BOOT , Replaced By: A6205200296
278
STRAINER BOOT
278
STRAINER , Replaced By: A6205280103
282
CLAMP BOOT TO INTAKE PIPE
286
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
286
SCREW , Replaced By: N304017008027
290
WASHER EXHAUST MUFFLER TO STRAP
290
WASHER , Replaced By: N000125008443
294
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
294
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
294
NUT , Replaced By: N913004008001
298
BRACKET BOOT
298
BRACKET , Replaced By: A6575280040
302
SCREW BOOT TO BRACKET
306
BRACKET BOOT
310
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
310
SCREW , Replaced By: N304017008016
314
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
314
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
314
NUT , Replaced By: N913004008001
318
SUPPORT BOOT
322
SCREW BRACKET TO SUPPORT
326
WASHER RADIATOR TO RUBBER MOUNTING
326
WASHER , Replaced By: N000125010532
330
NUT STRAP TO BRACKET
330
NUT , Replaced By: N910113010000
334
SCREW SUPPORT TO CROSS MEMBER M 10X28
338
SCREW REAR EXHAUST PIPE TO MUFFLER
342
NUT STRAP TO BRACKET
342
NUT , Replaced By: N910113010000
346
HOSE FROM AIR CLEANER TO CAB CONSOLE
350
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
350
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
350
CLAMP , Replaced By: N000000000678
354
PIPE ELBOW (INTAKE PIPE),5 088424
358
THREADED INSERT
362
SEAL RING INTAKE PIPE TO CAB CONSOLE,5 088424
366
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
366
SCREW , Replaced By: N304017008027
370
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
370
SPRING WASHER , Replaced By: N000137008212
374
HOSE FROM AIR INTAKE PIPE TO ENGINE
374
HOSE , Replaced By: A6235280082
374
HOSE FROM CAB CONSOLE TO ENGINE CONNECTION
374
HOSE , Replaced By: A0010941182
378
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
378
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
378
CLAMP , Replaced By: N000000000678
999
SEAL RING INTAKE PIPE TO CAB CONSOLE,5 088425
999
SEAL RING INTAKE PIPE TO AIR CLEANER
999
AIR INTAKE CASE ,4 959578
999
PIPE ELBOW , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 175234, Replaced By: A6205202406
999
PIPE ELBOW (INTAKE PIPE),5 088425
999
PIPE ELBOW (INTAKE PIPE)
999
PIPE ELBOW (OIL FILLER PIPE)
999
GASKET ,4 959578
999
CLAMP INTAKE PIPE TO AIR CLEANER
999
SPRING WASHER STEERING COLUMN BRACKET TO CAB
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304017006020
999
SCREW , Replaced By: N304017010002
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW SUPPORT TO FENDER
999
SCREW BRACKET TO SIDE MEMBER
