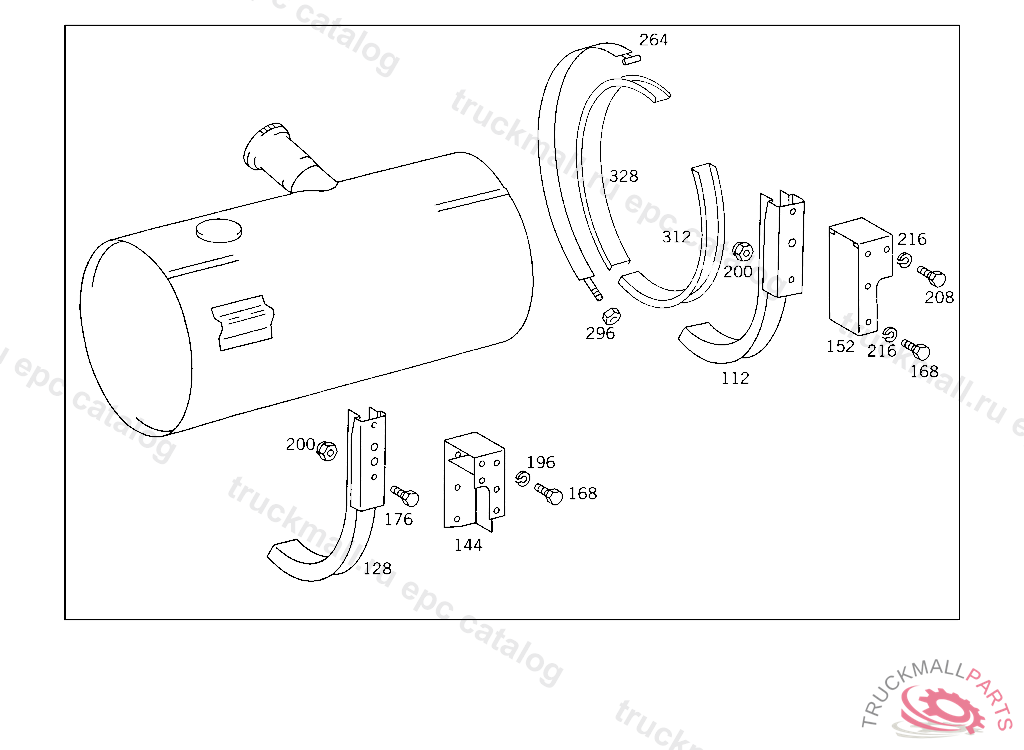

Поз.
Артикул
Описание
112
SUPPORT REAR
112
SUPPORT FUEL TANK
128
SUPPORT , Replaced By: A3854700442
128
SUPPORT FRONT
128
SUPPORT FUEL TANK TO FRAME
128
SUPPORT FUEL TANK TO FRAME
144
SUPPORT FRONT
152
SUPPORT REAR
168
SCREW , Replaced By: N308765014006
168
SCREW SUPPORT TO SIDE MEMBER M 14X90
168
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
176
SCREW , Replaced By: N308676014012
176
SCREW SUPPORT TO SIDE MEMBER M 14X45
196
SPRING WASHER BEARING BRACKET TO SIDE MEMBER,4 207081
200
NUT , Replaced By: N910113014000
200
NUT STEERING SUPPORT TO FRAME
200
NUT STEERING SUPPORT TO FRAME
208
SCREW , Replaced By: N308676014008
208
SCREW MOUNTING TO CONSOLE M 14X35
216
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
264
STRAP FUEL TANK TO CONSOLE,5 149420
296
NUT STRAP TO SUPPORT
312
PAD , Replaced By: A6174750020
312
PAD , Replaced By: A3634750220
328
PAD , Replaced By: A6204750720
328
PAD STRAP TO SUPPORT, ORDER BY THE METER
