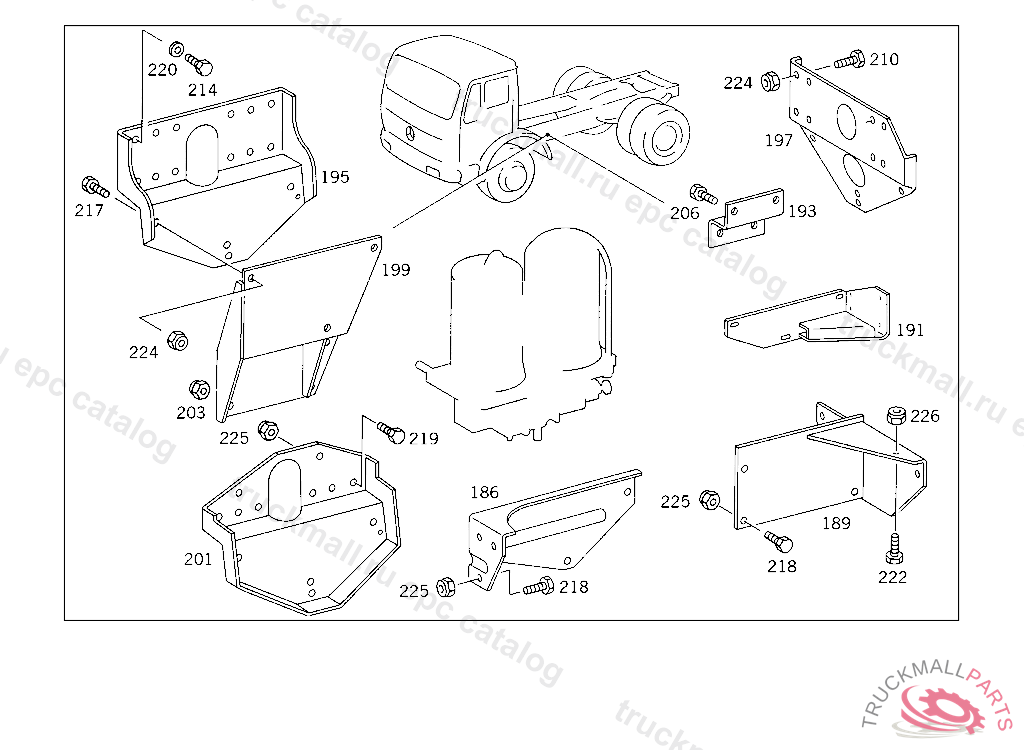

Поз.
Артикул
Описание
186
BRACKET ANTI-FREEZE DEVICE
186
BRACKET ANTI-FREEZE DEVICE
189
BRACKET ANTI-FREEZE DEVICE,6 900023
191
BRACKET ANTI-FREEZE DEVICE,6 900024
193
BRACKET AIR DEHYDRATOR
195
BRACKET AIR DEHYDRATOR
197
BRACKET AIR DEHYDRATOR
197
BRACKET , Replaced By: A6204293640
199
BRACKET ANTI-FREEZE DEVICE
201
BRACKET ANTI-FREEZE DEVICE,5 161700
203
NUT SUPPORT TO SIDE MEMBER
203
NUT END PIECE TO EXHAUST PIPE
203
NUT SUPPORT TO SIDE MEMBER
206
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
206
SCREW , Replaced By: N308676012012
210
SCREW LEFT AND RIGHT CONSOLES TO CAB
210
SCREW , Replaced By: N308676012015
210
SCREW CONSOLE TO SIDE MEMBER
214
SCREW LEFT AND RIGHT CONSOLES TO CAB
214
SCREW BRACKET TO SIDE MEMBER M 12X38
214
SCREW LEFT AND RIGHT CONSOLES TO CAB
214
SCREW , Replaced By: N308676012015
217
SCREW BRACKET TO FRAME M 12X35
217
SCREW BRACKET TO FRAME M 12X35
218
SCREW END PIECE TO EXHAUST PIPE M 10X25
219
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
220
WASHER PROTECTIVE PLATE TO EXHAUST PIPE
222
SCREW PUMP TO BRACKET
222
SCREW , Replaced By: N304017006016
224
NUT SUPPORT TO SIDE MEMBER
225
NUT STRAP TO BRACKET
225
NUT , Replaced By: N910113010000
226
NUT PUMP TO BRACKET
226
NUT , Replaced By: N913004006001
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
AIR CLEANERBOSCH
999
ANTI-FREEZE DEVICE , Replaced By: A0004314615
999
RESERVOIR , Replaced By: A0014327501
999
RESERVOIR , Replaced By: A0034321201
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
FILTER , Replaced By: A0004315934
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
T-FITTING PRESSURE RELIEF VALVE,CONNECTION: "10"
999
FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING SHUTTLE VALVE,CONNECTION: "20"
999
PRESSURE REGULATOR ,5 161700, Replaced By: A0024314606
999
VALVE ,5 161700, Replaced By: A0024314706
999
RUBBER SECTION , Replaced By: A3634750320
999
BRACKET AIR CLEANER,5 088361
999
BATTERY SUPPORT , Replaced By: A6165400316
999
COVERING ANTI-FREEZE DEVICE,6 900023
999
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
