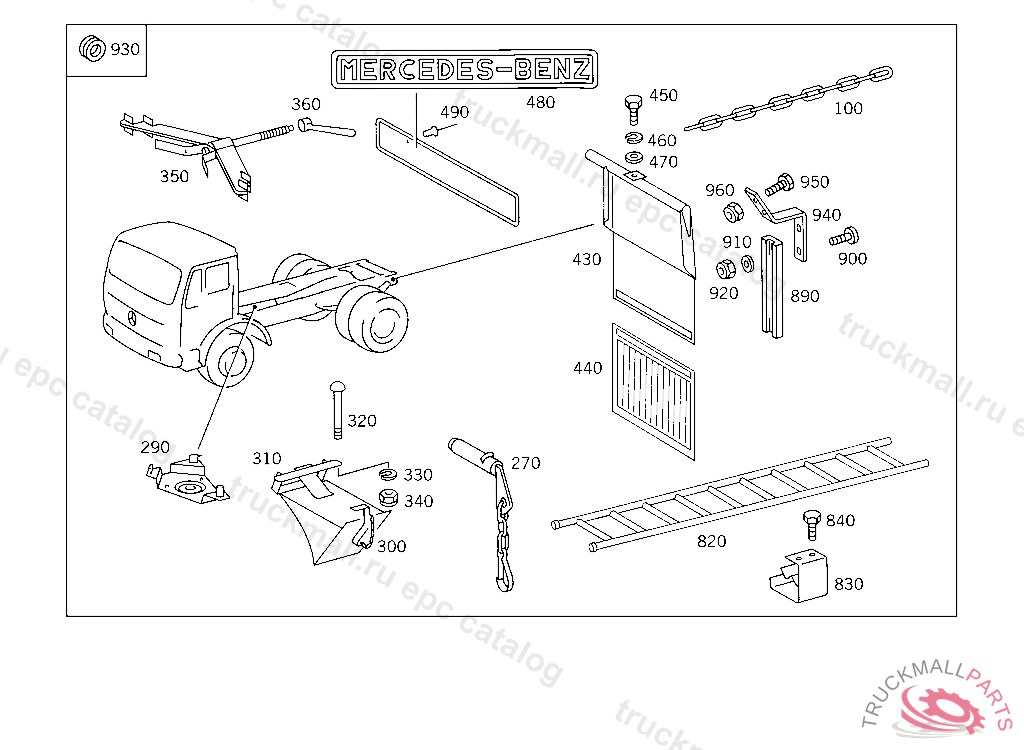

Поз.
Артикул
Описание
100
CHAIN FOR REAR PANEL
100
CHAIN FOR REAR PANEL
270
COUPLING PIN DUMPING PLATFORM MOUNTING
270
PIN , Replaced By: A0003150706
270
COUPLING PIN DUMPING PLATFORM MOUNTING
270
COUPLING PIN FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME,K 164029
270
COUPLING PIN TILTING PLATFORM,SECURITY PIN ON FRAME,K 164029
270
COUPLING PIN TILTING PLATFORM,SECURITY PIN ON FRAME,K 164029
270
COUPLING PIN TILTING PLATFORM,SECURITY PIN ON FRAME,K 178058
270
COUPLING PIN FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME,K 178058
270
COUPLING PIN FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME,K 164029
270
COUPLING PIN DUMPING PLATFORM MOUNTING
270
COUPLING PIN FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME,K 164028
270
COUPLING PIN FROM DUMPER PLATFORM SUBSTRUCTURE LOCK TO FRAME,K 164028
270
PIN , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 126844, Replaced By: A0003153106
270
COUPLING PIN DUMPING PLATFORM MOUNTING
290
BRACKET SPARE WHEEL CARRIER
300
BRACKET , Replaced By: A3355800290
300
BRACKET FOR CHOCK
310
BRACKET , EXHAUST STOCK OF OLD PART NUMBER UP TO CHASSIS 4 231000, Replaced By: A3828900079
310
CLAMP CHOCK FIXTURE
320
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
320
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X55
320
SCREW , Replaced By: N304017008034
320
SCREW BRACKET TO CROSS CONNECTION STRUT
320
SCREW BRACKET AND CLAMP TO DUMPER PLATFORM M 8X20
320
SCREWM 8X20,K 164029
330
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
340
NUT
340
NUT , Replaced By: N913004008001
340
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
340
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
350
CLAMP SPARE WHEEL CARRIER
360
NUT SPARE WHEEL CARRIER
430
MUD APRON , Replaced By: A3938800108
430
MUD APRON , Replaced By: A3938800108
430
MUD APRON LEFT
430
MUD APRON LEFT, FROM IDENT NO. K 164029, SEE PLATFORM MODEL CONFIGURATION
430
MUD APRON LEFT
430
MUD APRON RIGHT, FROM IDENT NO. K 164029, SEE PLATFORM MODEL CONFIGURATION
430
MUD APRON , Replaced By: A3878802108
430
MUD APRON , Replaced By: A3878802108
430
MUD APRON , Replaced By: A3878802108
430
MUD APRON , Replaced By: A6208800008
430
MUD APRON LEFT
430
MUD APRON , Replaced By: A3938800208
430
MUD APRON , Replaced By: A3938800208
430
MUD APRON RIGHT
430
MUD APRON , Replaced By: A3878802208
430
MUD APRON , Replaced By: A3878802208
430
MUD APRON , Replaced By: A3878802208
430
MUD APRON , Replaced By: A6208800108
430
MUD APRON RIGHT
440
SPLASH GUARD650X300 MM, FROM IDENT NO. K 164029, SEE PLATFORM MODEL CONFIGURATION
450
SCREW STRUT TO CONSOLE
450
SCREW STRUT TO CONSOLE
460
LOCK WASHER FITTING TO BRACKET
470
WASHER
470
WASHER , Replaced By: N000125013008
470
WASHER
480
NAME PLATE
490
RIVET EMBLEM TO MUD APRON
820
LADDER
830
BRACKET LADDER TO BODY
840
SCREW , Replaced By: A1249902101
840
SCREW BRACKET TO THROTTLE HOUSING
890
BRACKET REFLECTOR
900
SCREW , Replaced By: N304017006020
900
SCREW LICENSE PLATE TO BRACKET
910
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
910
WASHER COMPRESSED AIR LINE TO BRACKET
920
NUT , Replaced By: N913004006001
920
NUT PUMP TO BRACKET
930
GROMMET OIL DELIVERY LINE THRU FENDER SUPPORT
940
BRACKET MUD APRON
950
SCREW COVER PLATE TO BRACKET
960
NUT , Replaced By: N913004006001
960
NUT PUMP TO BRACKET
960
NUT PUMP TO BRACKET
999
MUD APRON RIGHT
999
PIPE CLAMP BRACKET TO CONSOLE
999
PLATE AUXILIARY FRAME MOUNTING
999
PAD AT CONSOLE,4 785185
999
BRACKET LINE TO SUBSTRUCTURE
999
PLATE AS REQUIRED
999
SCREW AUXILIARY FRAME MOUNTING
