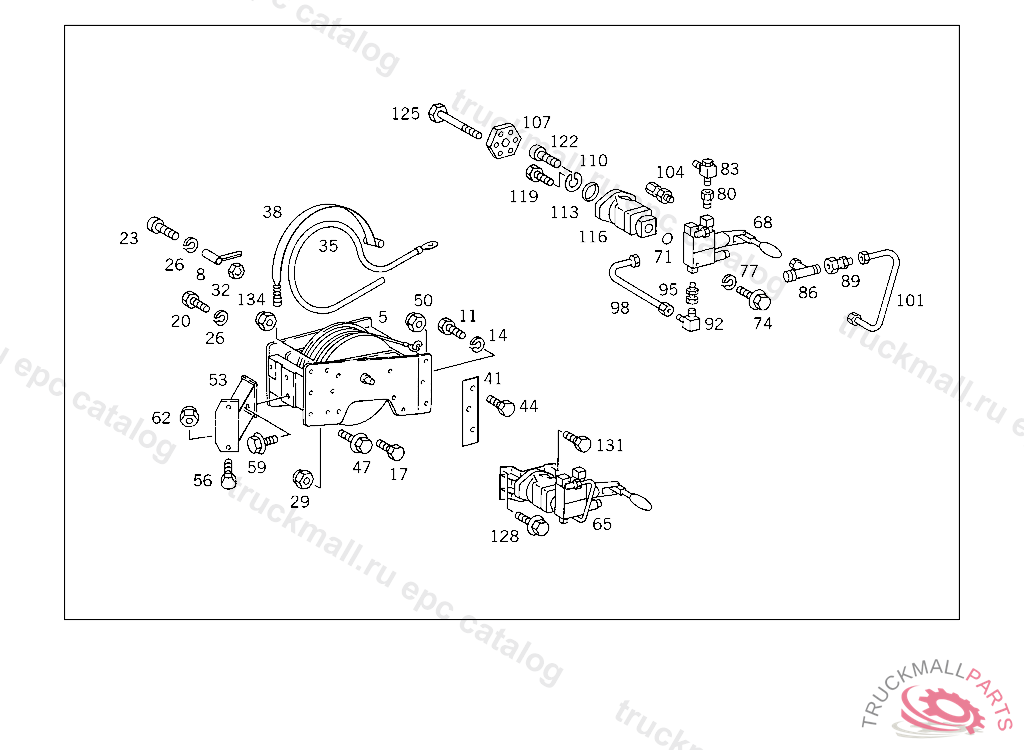

Поз.
Артикул
Описание
5
CABLE WINCH
8
PAWL
11
SCREW END PIECE TO EXHAUST PIPE M 10X25
14
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
17
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
17
SCREW , Replaced By: N308676012011
17
SCREW , Replaced By: N308676012031
20
SCREW SUPPORTING ARM TO TIMING CASE M 16X40, Replaced By: N304017016008
20
HEXAGON HEAD BOLT SUPPORTING ARM TO TIMING CASE M 16X40
23
SCREWM 16X110
26
LOCK WASHERROCKINGER TYP 59 G140,59 G150
29
NUT SUPPORT TO SIDE MEMBER
32
NUTM 16
35
WIRE CABLE16 MMX60 M
38
BRAKE BANDKOMPLETT
41
PAD CABLE WINCH TO FRAME SIDE MEMBER
44
SCREW TRAILER COUPLING TO REAR CROSS MEMBER
47
SCREW HYDRAULIC MOTOR AND CABLE WINCH TO FRAME SIDE MEMBER M 16X30
47
SCREW , Replaced By: N914141016001
47
SCREW CABLE WINCH TO FRAME SIDE MEMBER CM 16X1.5X45
47
SCREW HYDRAULIC MOTOR AND CABLE WINCH TO FRAME SIDE MEMBER M 16X40
50
NUT , Replaced By: N910113016001
50
NUT CONSOLE TO SUPPORT
53
BRACKET CABLE WINCH
56
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
56
SCREW , Replaced By: N308676016007
59
SCREW , Replaced By: N308676016007
59
SCREW HYDRAULIC MOTOR AND CABLE WINCH TO FRAME SIDE MEMBER M 16X30
59
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
62
NUT CONSOLE TO SUPPORT
62
NUT , Replaced By: N910113016001
65
HYDRAULIC MOTOR
68
VALVE
71
SEAL RING
74
SCREW
77
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
80
FITTING
83
ELBOW FITTING
86
T-FITTING
89
FITTING
92
ELBOW FITTING
95
FITTING
98
OIL LINE
101
OIL LINE
104
FITTING
107
COUPLING
110
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
113
SEAL RING
116
PUMP
119
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
119
SCREW , Replaced By: N304017008016
122
SCREW FLANGE TO TRANSMISSION CASE
125
SCREW STRAP TO BRACKET
128
SCREW , Replaced By: N914141016001
128
SCREW HYDRAULIC MOTOR AND CABLE WINCH TO FRAME SIDE MEMBER M 16X40
131
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
131
SCREW , Replaced By: N308676016005
134
NUT CONSOLE TO SUPPORT
134
NUT , Replaced By: N910113016001
999
CABLE PULLEY
999
CABLE PULLEY
