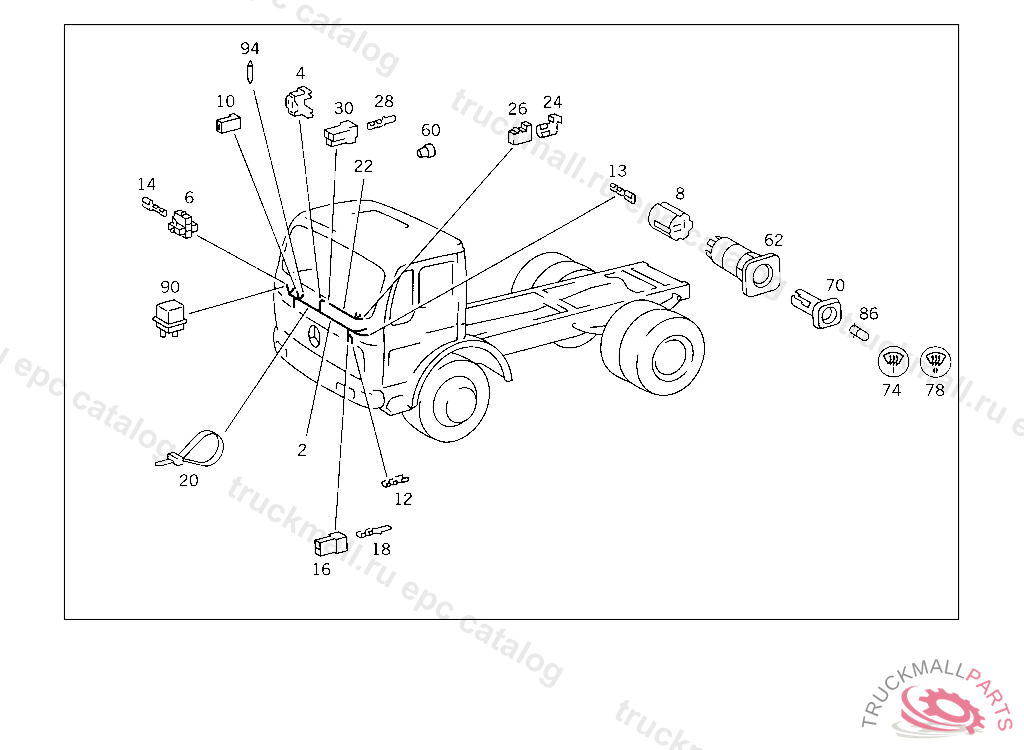

Поз.
Артикул
Описание
2
ELECTRIC CABLE SWITCH,RELAY,FUSE BOX,GROUND
4
PIN BUSHING HOUSING 3-POLE
6
PIN BUSHING HOUSING 5-POLE
8
PIN BUSHING HOUSING 7-POLE
10
BOOT PIN BUSHING
12
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
13
PIN BUSHING , Replaced By: A0075458226
13
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
14
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
16
PIN BUSHING HOUSING. PLUG HOUSING FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH
18
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
20
LOOM TIE LINE MOUNTING 280 MM
22
ELECTRIC CABLE FROM PLUG CONNECTION TO WINDSHIELD
24
PIN BUSHING , Replaced By: A0005456626
24
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1-2.5 MM2
26
SOCKET HOUSING. PIN BUSHING HOUSING
28
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
30
PLUG HOUSING 3-POLE
60
CABLE CONNECTOR1.5-6.6 MM2
60
CABLE CONNECTOR6-10 MM2
62
SWITCH , Replaced By: A0015450611
62
SWITCH ENGINE COMPARTMENT LAMP,5 220080
70
CAP REAR FOGLAMP SWITCH
74
LENS HEATED WINDSHIELD CONTROL I
78
LENS HEATED WINDSHIELD CONTROL II
86
BULB TELL-TALE LAMP
90
RELAY , Replaced By: A0035459605
90
RELAYA33, Replaced By: A0009822123
90
RELAY , Replaced By: A0035459605
90
RELAYA33
94
FUSE FUSE BOX A 25
94
FUSE FUSE BOX 25 A
94
FUSEA8
94
FUSE , Replaced By: N072581008101
999
COVER IN PLACE OF SWITCH, NO.9051I.......I.......I.......I.......I....... I I
999
PLUG TO PLUG THE FREE BORES IN INSTRUMENT PANEL,5 220080
