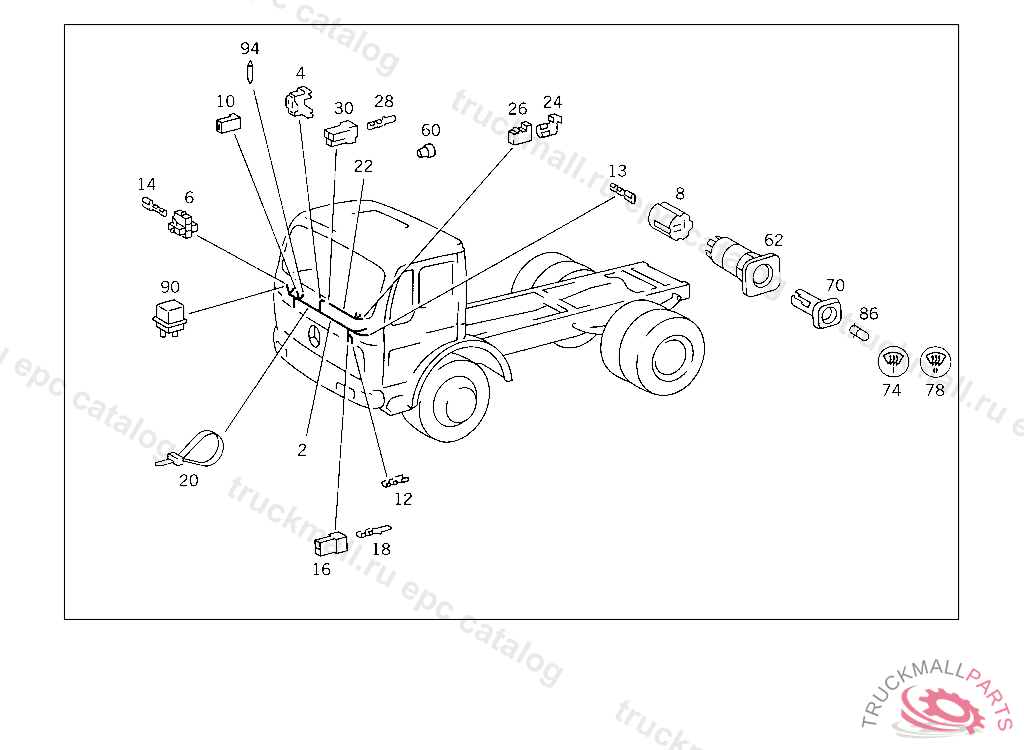

Поз.
Артикул
Описание
2
ELECTRIC CABLE SWITCH,RELAY,FUSE BOX,GROUND
4
PIN BUSHING HOUSING 3-POLE
6
PIN BUSHING HOUSING 5-POLE
8
PIN BUSHING HOUSING 7-POLE
10
BOOT PIN BUSHING
12
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
13
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
13
PIN BUSHING , Replaced By: A0075458226
14
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 4-6 MM2
16
PIN BUSHING HOUSING. PLUG HOUSING FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH
18
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
20
LOOM TIE LINE MOUNTING 280 MM
22
ELECTRIC CABLE FROM PLUG CONNECTION TO WINDSHIELD
24
PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1-2.5 MM2
24
PIN BUSHING , Replaced By: A0005456626
26
SOCKET HOUSING. PIN BUSHING HOUSING
28
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
30
PLUG HOUSING 3-POLE
60
CABLE CONNECTOR6-10 MM2
60
CABLE CONNECTOR1.5-6.6 MM2
62
SWITCH , Replaced By: A0015450611
62
SWITCH ENGINE COMPARTMENT LAMP,5 220080
70
CAP REAR FOGLAMP SWITCH
74
LENS HEATED WINDSHIELD CONTROL I
78
LENS HEATED WINDSHIELD CONTROL II
86
BULB TELL-TALE LAMP
90
RELAY , Replaced By: A0035459605
90
RELAYA33
90
RELAYA33, Replaced By: A0009822123
90
RELAY , Replaced By: A0035459605
94
FUSEA8
94
FUSE FUSE BOX 25 A
94
FUSE , Replaced By: N072581008101
94
FUSE FUSE BOX A 25
999
PLUG TO PLUG THE FREE BORES IN INSTRUMENT PANEL,5 220080
999
COVER IN PLACE OF SWITCH, NO.9051I.......I.......I.......I.......I....... I I
