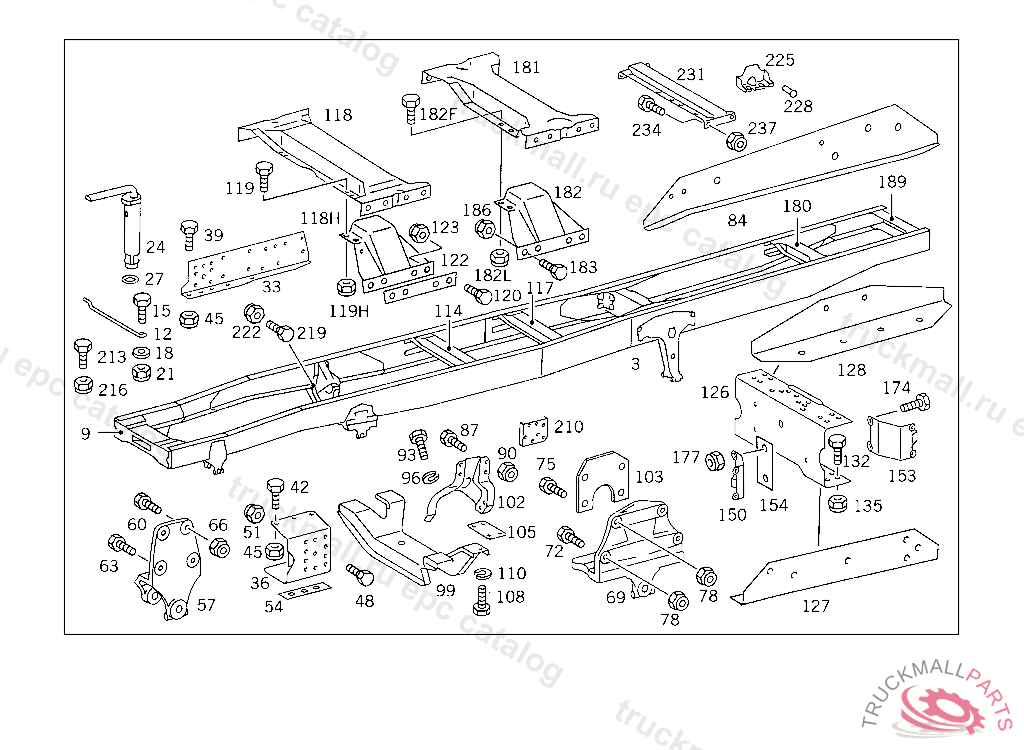

Поз.
Артикул
Описание
3
FRAME ,5 295723
3
FRAME ,5 295722
9
CROSS MEMBER FRONT
12
LOCKING SPRING TO SECURE COUPLING PIN
15
SCREW BRACKET TO CROSS CONNECTION STRUT
15
SCREW , Replaced By: N304017008034
18
WASHER EXHAUST MUFFLER TO STRAP
18
WASHER , Replaced By: N000125008443
21
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
21
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
21
NUT , Replaced By: N913004008001
24
COUPLING PIN FOR COUPLING MOUTH
27
SEALING CORD FOR COUPLING MOUTH
33
GUSSET PLATE
33
GUSSET PLATE FRONT LEFT, TO BE ADAPTED DURING ASSEMBLY
36
BOW FRONT RIGHT
36
BOW FRONT LEFT
39
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
39
SCREW , Replaced By: N308676012026
42
SCREW LEFT AND RIGHT CONSOLES TO CAB
42
SCREW , Replaced By: N308676012015
45
NUT SUPPORT TO SIDE MEMBER
48
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
51
NUT BRACKET TO SIDE MEMBER
51
NUT , Replaced By: N910113014001
54
BASE AS REQUIRED 5.00 MM
54
BASE AS REQUIRED 4.00 MM
54
BASE AS REQUIRED 3.00 MM
57
FRONT SPRING BRACKET FRONT
57
FRONT SPRING BRACKET , Replaced By: A6203220901
57
FRONT SPRING BRACKET , Replaced By: A6203220501
60
SCREW CONSOLE AND STRUT TO FRAME
63
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER M 16X55
66
NUT CONSOLE TO SUPPORT
66
NUT , Replaced By: N910113016001
69
FRONT SPRING BRACKET REAR
69
FRONT SPRING BRACKET , Replaced By: A6203220103
72
SCREW STEERING SUPPORT TO FRAME M 14X55
72
SCREW , Replaced By: N308676014012
72
SCREW SUPPORT TO SIDE MEMBER M 14X45
75
SCREW STEERING SUPPORT TO FRAME M 14X50
75
SCREW , Replaced By: A9429901304
75
SCREW APPARATUS SUPPORT TO FRAME
78
NUT , Replaced By: N910113014000
78
NUT STEERING SUPPORT TO FRAME
84
ANGLE LEFT REINFORCEMENT,5 295722
84
ANGLE RIGHT REINFORCEMENT,5 295722
87
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
87
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
90
NUT , Replaced By: N910113014001
90
NUT BRACKET TO SIDE MEMBER
93
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
96
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
99
CROSS MEMBER FRONT SPRING REAR BRACKET NO.2
102
STRUT FRONT SPRING REAR BRACKET,5 313280
102
STRUT , Replaced By: A3873100353
103
SHIM FRONT SPRING REAR BRACKET,5 2957235 313280
105
SHIM CROSS MEMBER TO SUPPORT
105
SHIM , Replaced By: A6203121984
108
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
110
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
117
CROSS MEMBERNO.4, 415 5 014669 416 5 000516 417 4 972024
117
CROSS MEMBERNO.3
118
CROSS MEMBERNO.3A
123
NUT STEERING SUPPORT TO FRAME
123
NUT , Replaced By: N910113014000
126
CROSS MEMBER CENTRAL BEARING NO.5,5 295723
126
CROSS MEMBER CENTRAL BEARING NO.5,5 295722
127
GUSSET PLATE RIGHT TOP,5 295723
127
GUSSET PLATE LEFT TOP,5 295723
128
GUSSET PLATE FRAME TRUSSING,RIGHT
128
GUSSET PLATE FRAME TRUSSING,LEFT
132
SCREW CONSOLE TO FRAME
132
SCREW , Replaced By: N308676016020
135
NUT STEERING SUPPORT TO FRAME
135
NUT , Replaced By: N910113014000
153
BEARING BRACKET CONTROL ARM,REAR,5 009667
153
BEARING BRACKET CONTROL ARM
154
SHIM BEARING BRACKET TO CROSS MEMBER,5 295723
174
SCREW SUPPORTING ARM TO BELL HOUSING M 18X60
174
SCREW , Replaced By: N308676018009
174
SCREW , Replaced By: N000960018109
174
SCREW BEARING BRACKET TO SIDE AND CROSS MEMBERS M 18X85,5 557245
177
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
177
NUT , Replaced By: N910113018004
180
CROSS MEMBERNO.6,5 295723
180
CROSS MEMBERNO.6,5 295722
181
CROSS MEMBERNO.5A
181
CROSS MEMBERNO.4A
182
STRUT LEFT AND RIGHT
186
NUT STEERING SUPPORT TO FRAME
186
NUT , Replaced By: N910113014000
189
CROSS MEMBER (REAR CROSS MEMBER)
189
CROSS MEMBER , Replaced By: A3873120735
210
REINFORCEMENT RIGHT,FOR TORSION BAR,5 184731
210
REINFORCEMENT , Replaced By: A3873110160
210
REINFORCEMENT LEFT,FOR TORSION BAR,5 184731
210
REINFORCEMENT , Replaced By: A3873110060
213
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
213
SCREW , Replaced By: N308676014020
216
NUT , Replaced By: N910113014001
216
NUT BRACKET TO SIDE MEMBER
225
SUPPORT SPARE WHEEL MOUNTING, NOT INCLUDED IN RANGE OF DELIVERY OF FRAME
228
RIVET12X58 MM, TO BE ADAPTED DURING ASSEMBLY
231
SUPPORT SPARE WHEEL HOIST,4 179002
234
SCREW BRACKET TO SIDE MEMBER
234
SCREW , Replaced By: N304017010002
237
NUT STRAP TO BRACKET
237
NUT , Replaced By: N910113010000
999
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
999
SCREW , Replaced By: A0029908201
999
RIVET BUSHING AND LEVER TO CAB
999
STRUT , Replaced By: A6203121561
999
STRUT LEFT AND RIGHT
999
REPAIR KIT , Replaced By: A3879920003, +002A6208910017, +001A3638910023
999
BUSHING TILTING LEVER
999
STRUT LEFT AND RIGHT
999
SPACER TUBE
999
SPACER TUBE BEARING BRACKET TO SIDE MEMBER
999
WASHER BRACKET TO SPARE WHEEL CARRIER
999
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
999
LOCK , Replaced By: N912002008003
999
LOCK PULL TO FASTENER
999
NUT , Replaced By: N910113012003
