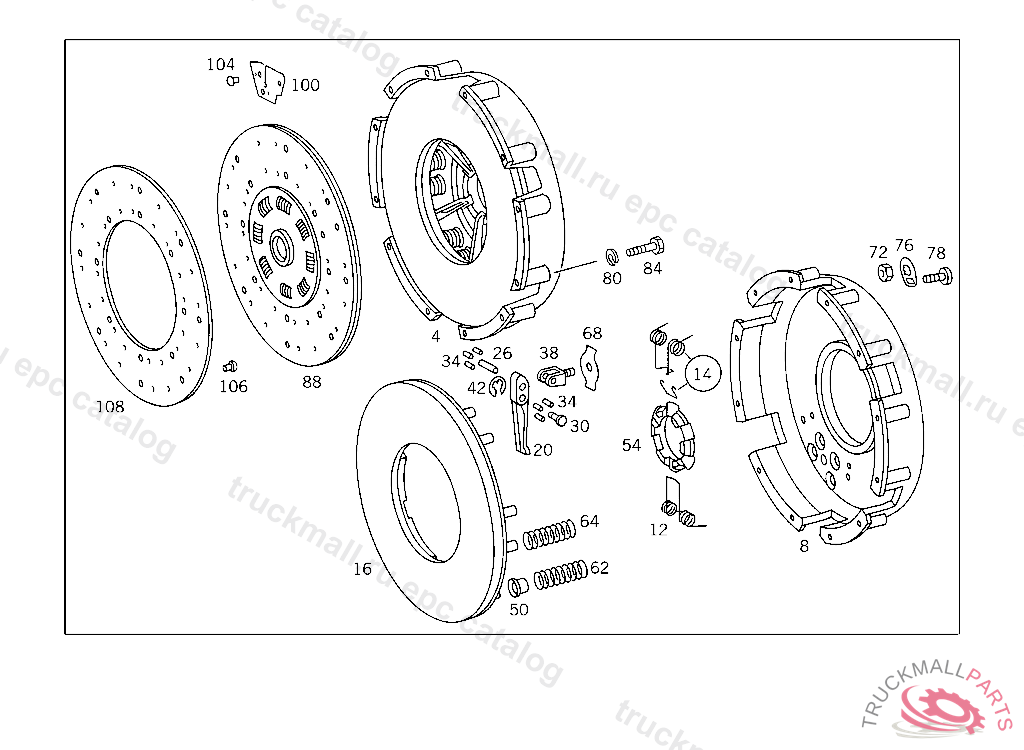

Поз.
Артикул
Описание
4
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
HOUSING
12
SPRING SUSPENDED BELOW LEAF SPRING
12
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
14
SPRING SUSPENDED BELOW LEAF SPRING
14
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
16
PRESSURE PLATE CLUTCH PRESSURE PLATE
20
RELEASE LEVER CLUTCH ACTUATION
26
SPINDLE RELEASE LEVER,CLUTCH PRESSURE PLATE
30
SPINDLE FOR BRACKETS
34
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
38
BRACKET FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
42
LOCK PLATE RELEASE LEVER TO SHAFT
50
SLEEVE CLUTCH PRESSURE PLATE
54
FLANGE CLUTCH PRESSURE PLATE
62
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
64
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
68
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
68
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
72
NUT FOR BRACKETS
76
LOCK FOR BRACKETS
78
SCREW RELEASE LEVER,BRACKET
80
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
84
SCREW CLUTCH TO FLYWHEEL
88
CLUTCH DISC
88
CLUTCH DISC
88
CLUTCH DISC ASBESTOS-FREE LINING, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
88
CLUTCH DISC ASBESTOS-FREE LINING
100
LEAF SPRING
100
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523919, +002A0002523975
104
RIVET LEAF SPRING TO CLUTCH DISC
104
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
106
RIVET LINING WITH CLUTCH DISC
106
RIVET , Replaced By: A0002524875
106
RIVET , Replaced By: A0002524675
106
RIVET , Replaced By: A0002523775
108
CLUTCH LINING
108
CLUTCH LINING ASBESTOS-FREE,5 563495
108
CLUTCH LINING ASBESTOS-FREE
108
CLUTCH LINING , Replaced By: A0022520010
108
CLUTCH LINING , Replaced By: A0012528310
999
PLUG , Replaced By: A0002510183
999
PLUG BELL HOUSING
999
PLUG BELL HOUSING
999
VALVE , Replaced By: A3075530107
999
LEVER CLUTCH ACTUATION,4 601610
999
VALVE CLUTCH SLAVE CYLINDER
999
PLUG , Replaced By: A0002510283
999
SHAFT , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT, Replaced By: A3895860025
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
