Поз.
Артикул
Описание

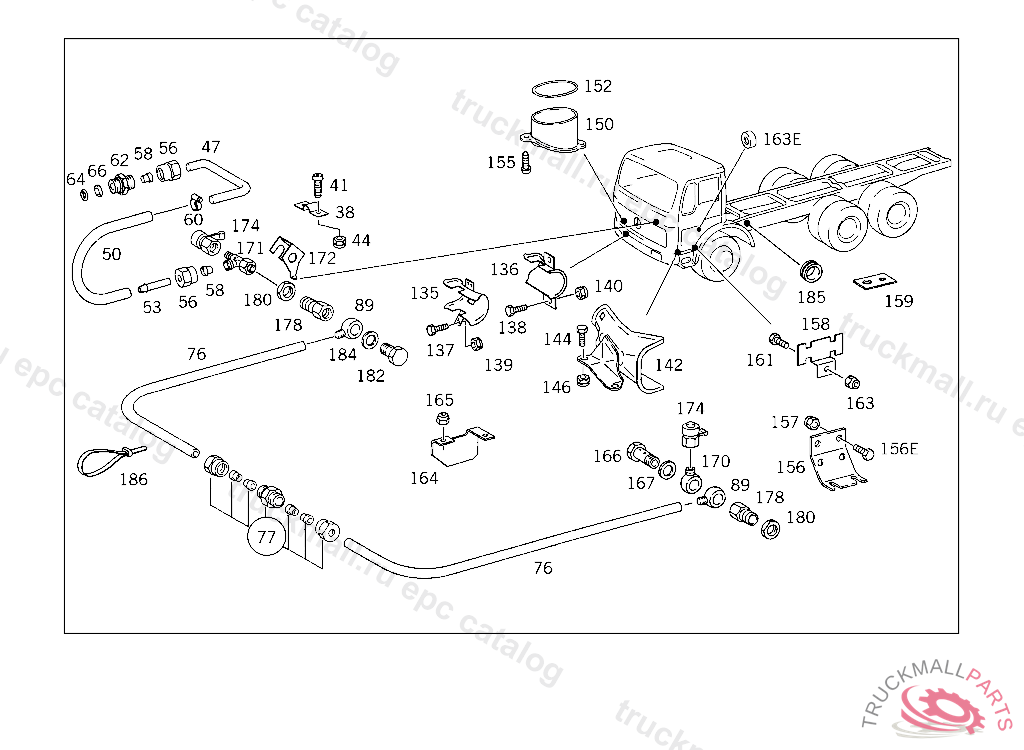

38
CLAMP 3/2-WAY SOLENOID VALVE
41
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
41
SCREW CLAMP TO BRACKET
44
NUT , Replaced By: N913004006001
44
NUT PUMP TO BRACKET
47
LINE , Replaced By: A6194290801
47
LINE , Replaced By: A6254293501
47
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
50
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
53
FITTING DIAPHRAGM CYLINDER,CONNECTION:
56
UNION NUT LINE CONNECTION, Replaced By: N000000006239
56
UNION NUT LINE CONNECTION
58
GLAND , Replaced By: A0019901967
58
SEAL CONE LINE CONNECTION
60
CLAMP HOSE TO FITTING AND TO OIL TANK
60
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
62
FITTING DELIVERY LINE TO PUMP
64
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
66
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
76
HOSE , Replaced By: A0009872827
76
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
76
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
76
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
76
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
76
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
77
FITTING , Replaced By: A0029906171
77
FITTING (PARTS KIT),LINE RUPTURE
89
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
136
BRACKET LEFT COMPRESSED AIR LINES,5 412152
138
SCREW BRACKET TO SIDE MEMBER
140
NUT , Replaced By: N910113014001
140
NUT BRACKET TO SIDE MEMBER
142
BRACKET LEFT, TO BE ADAPTED DURING ASSEMBLY
144
SCREW , Replaced By: N304017008021
144
SCREW PIPE CLAMP
146
NUT , Replaced By: N913004008001
146
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
146
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
150
BRACKET FOR PASSAGE OF LINE
150
BRACKET FOR PASSAGE OF LINE
152
SEAL RING TO SEAL CABLE HARNESS OPENING IN CAB
155
SHEET METAL SCREW BRACKET TO ELECTRICAL APPARATUS COMPARTMENT 4,8X19
156
BRACKET FRAME MOUNTED CABLE HARNESS TO RIGHT SIDE MEMBER
158
BRACKET BREATHER LINE TO SIDE MEMBER
159
BRACKET , Replaced By: A3604293140
159
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
161
SCREW , Replaced By: N304017008027
161
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
163
NUT , Replaced By: N913004008001
163
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
163
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
165
NUT , Replaced By: N913004006001
165
NUT PUMP TO BRACKET
166
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
166
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
167
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
170
BANJO UNION BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
170
BANJO UNION BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
171
T-FITTING RIGHT SPRING LOAD ACCUMULATOR BRAKE CYLINDER,CONNECTION "1"
172
LOCK BRAKE HOSE TO ANGLE
174
TEST CONNECTION
174
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
174
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
174
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
174
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
174
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
174
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
174
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
174
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
178
ADAPTER FITTING PASSAGE OF LINE THRU SIDE MEMBER,5 395033
180
NUT BRACKET TO SIDE MEMBER
182
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
184
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
185
GROMMET42/36 MM, NOT USED
185
GROMMET , Replaced By: A6554290081
185
GROMMET LINE THRU FRAME
185
GROMMET LINE PASSAGE AT SIDE MEMBER 32/27 MM
185
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
186
LOOM TIE LINE MOUNTING 280 MM
186
LOOM TIE LINE MOUNTING
999
FILTER ELEMENTTO 000 429 25 95,BOSCH
999
DIAPHRAGMTO 000 429 25 95,BOSCH
999
AIR CLEANERGRAU
999
ADAPTER FITTING , Replaced By: A0069970072
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
REPAIR KIT BRAKE POWER REGULATOR TO 002 431 05 12,KNORR
999
MUFFLER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
REPAIR KIT , Replaced By: A0004300207
999
REPAIR KITTO 000 429 26 95,KNORR
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
REPAIR KIT BRAKE POWER REGULATOR BOSCH
999
REPAIR KIT VALVE BOSCH
999
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE WABCO
999
REPAIR KIT SEAL RING BOSCH,209
999
VALVEWABCO
999
RING DRAIN VALVE TO 000 432 08 07, NOT USED
999
REPAIR KIT , ON 343.1 FROM CHASSIS 601716 ON 343.3 FROM CHASSIS 601551
999
SEALING CORDTO 000 429 27 95, WABCO
999
FITTING , Replaced By: A0019907168
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
CONNECTOR REPAIR SIZE
999
BANJO UNION , Replaced By: A0019908288
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK ELECTRIC CABLE THRU CAB FLOOR
999
SCREW. UNION SCREW LINE CONNECTION
999
HANDLEKNORR
999
PLUG
999
VALVE (RELAY VALVE) GRAU
999
VALVE (REGULATING VALVE)
999
PROTECTIVE CAPTO WABCO
999
PROTECTIVE CAPTO BOSCH
999
PROTECTIVE CAPKNORR
999
REPAIR KIT COVERING BOSCH
999
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
BANJO UNION
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
ELBOW FITTING AIR RESERVOIR,CONNECTION: "13", PLUG CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SEAL RINGTO 000 429 25 95,BOSCH
999
VALVE , Replaced By: A0034295344
999
VALVE (CHECK VALVE)
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
ELBOW FITTING ,5 181111 10/50 616.121,122,131,1325 208196 20/60 616.121,122,131,1325 297633 616.024,026,027,028,065
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
999
ELBOW FITTING ,5 433281
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
999
VALVE (CHECK VALVE) WABCO
999
VALVE (CHECK VALVE) SCHAEFER
999
VALVE (RELAY VALVE) KNORR
999
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
999
REPAIR KITTO 002 430 98 81,99 81,KNORR
999
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
999
GROMMET AT SIDE MEMBER,5 314333
999
FITTING 3/2-WAY VALVE,CONNECTION: "20"
999
SEAL RING , Replaced By: A0289972348
999
FITTING SHUTTLE VALVE,CONNECTION: "20",5 434013
999
SCREW REDUCTION VALVE TO BRACKET
999
SEAL RING , Replaced By: A0049972248
999
SEAL RING , Replaced By: A0009870746
999
SEAL RINGTO 000 429 25 95,BOSCH
999
SEAL RINGTO 000 429 27 95, WABCO
999
CLAMP BRAKE HOSE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
COVERING , Replaced By: A4073015088
999
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
999
COVERING
999
COVERING INTERMEDIATE BEARING
999
BRACKET RIGHT, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET RIGHT COMPRESSED AIR LINES
999
BRAKE HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
FITTING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847992, Replaced By: A6174310073
999
STRAP AIR RESERVOIR TO BRACKET
999
STRAP AIR RESERVOIR III,5 088362
999
CLAMP BRAKE HOSE
999
ANGLE METAL SPRING BELLOWS TO REAR AXLE
999
GUIDE SIGN GUIDE SIGN,5 281205, 648.015 294702, 648.06/07
999
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PIN STRAP TO SUPPORT
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER COMPRESSED AIR LINE TO BRACKET
999
NUT COMPRESSED AIR LINE THRU FRAME,5 395034
999
SCREW , Replaced By: A0079900801
999
SCREW , Replaced By: N304017010002
999
SCREW , Replaced By: N308676012012
999
WASHER BRACKET TO FENDER BRACKET
999
WASHER STRAP TO SUPPORT
999
WASHER BEARING BRACKET TO BRACKET
999
CLAMPING SLEEVEKNORR
999
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
999
BULKHEAD FITTING THROUGH SIDE MEMBER
999
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
999
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
999
SEAL RING LINE CONNECTION
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
WASHER , Replaced By: N009021005205
999
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
999
FITTING BRAKE LINE COUPLING TO BRACKET
999
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
UNION NUT LINE CONNECTION
999
HOLLOW SCREW HEATING CONNECTION
999
HOLLOW SCREW FITTING LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12",5 356525
999
HOLLOW SCREW FITTING RELAY VALVE,CONNECTION "20",LEFT
999
SEAL RING , Replaced By: N007603012121
999
SEAL RING AT FITTING,5 181111 10/50 623.135, 5 191654 10/50 623.048,145,1905 208196 20/60 623.048,135,145,1905 239606 623.012,013,023,068,0735 297633 623.195
