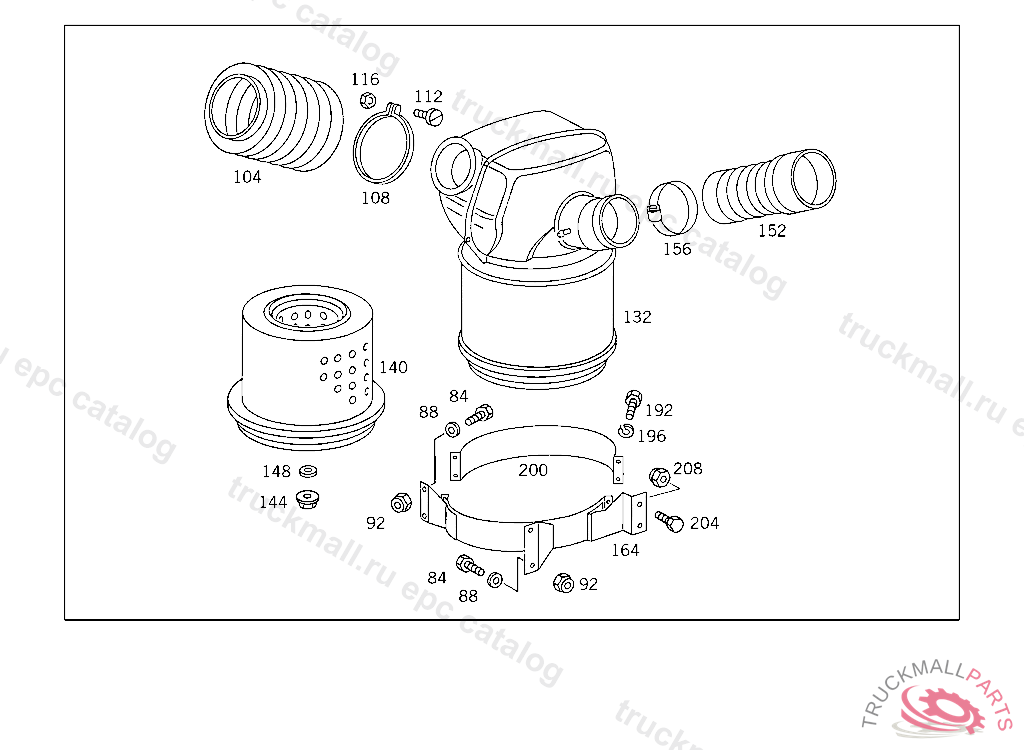

Поз.
Артикул
Описание
84
SCREW END PIECE TO EXHAUST PIPE M 10X25
84
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
84
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
84
SCREW , Replaced By: N308676012026
88
WASHER RADIATOR TO RUBBER MOUNTING
88
WASHER
92
NUT STRAP TO BRACKET
92
NUT , Replaced By: N910113010000
92
NUT SUPPORT TO SIDE MEMBER
104
BOOT AIR CLEANER TO CAB
108
CLAMP BOOT TO INTAKE PIPE
112
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER,5 946572
116
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
132
AIR CLEANER
132
AIR CLEANER , Replaced By: A0110942602
140
FILTER ELEMENTT0 010 094 15 02
144
NUT
148
WASHER FELT
152
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
156
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
156
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
156
CLAMP , Replaced By: N000000000678
164
SUPPORT AIR CLEANER
164
SUPPORT , Replaced By: A6565200033
192
SCREW BRACKET TO CROSS CONNECTION STRUT
192
SCREW , Replaced By: N304017008034
196
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
200
STRAP AIR CLEANER
204
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
204
SCREW , Replaced By: N308676012026
208
NUT SUPPORT TO SIDE MEMBER
