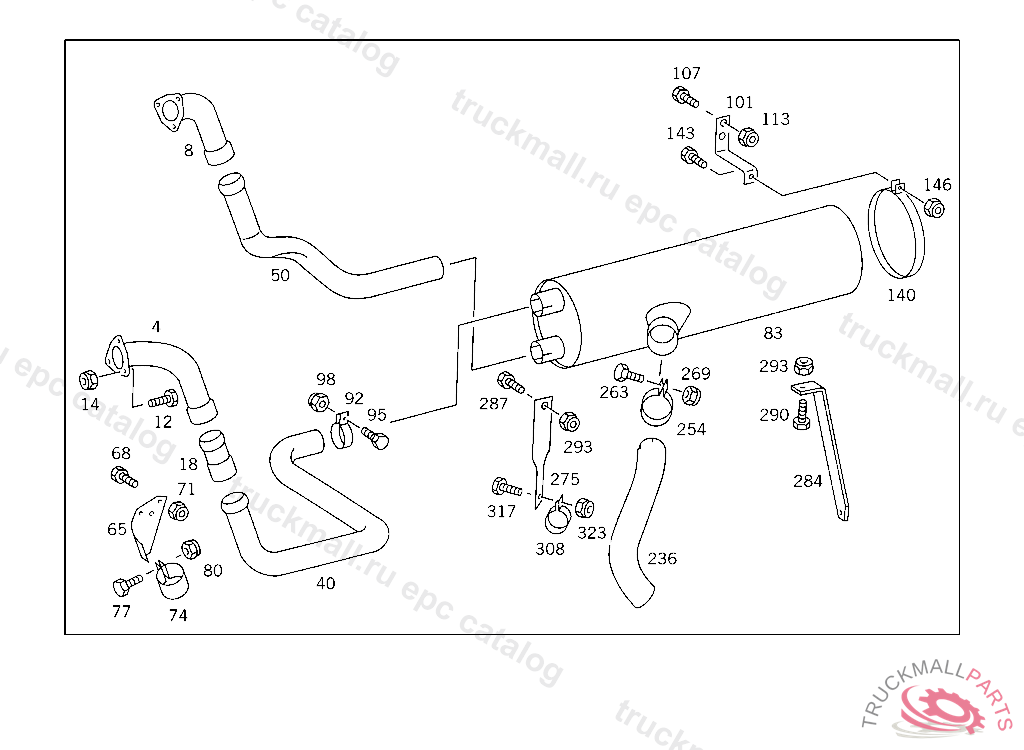

Поз.
Артикул
Описание
12
SCREW CONNECTOR TO EXHAUST MANIFOLD
14
NUT CONNECTOR TO EXHAUST MANIFOLD
65
BRACKET RIGHT EXHAUST PIPE,5 129244
65
BRACKET LEFT EXHAUST PIPE,5 129244
65
BRACKET RIGHT EXHAUST PIPE
65
BRACKET LEFT EXHAUST PIPE
68
SCREW REAR EXHAUST PIPE TO MUFFLER
71
NUT STRAP TO BRACKET
71
NUT , Replaced By: N910113010000
74
CLAMP AT CROSS MEMBER
74
CLAMP EXHAUST PIPE TO BRACKET
77
SCREW BRACKET TO SIDE MEMBER
77
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
77
SCREW , Replaced By: N304017008027
80
NUT STRAP TO BRACKET
80
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
80
NUT , Replaced By: N913004008001
92
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
92
CLAMP , Replaced By: N071555094502
95
SCREW BRACKET TO SIDE MEMBER
95
SCREW , Replaced By: N304017010002
98
NUT STRAP TO BRACKET
98
NUT , Replaced By: N910113010000
290
SCREW CONSOLE TO SIDE MEMBER
293
NUT SUPPORT TO SIDE MEMBER
308
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
308
CLAMP , Replaced By: N071555100501
317
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
317
SCREW , Replaced By: N304017008027
323
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
323
NUT , Replaced By: N913004008001
999
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
