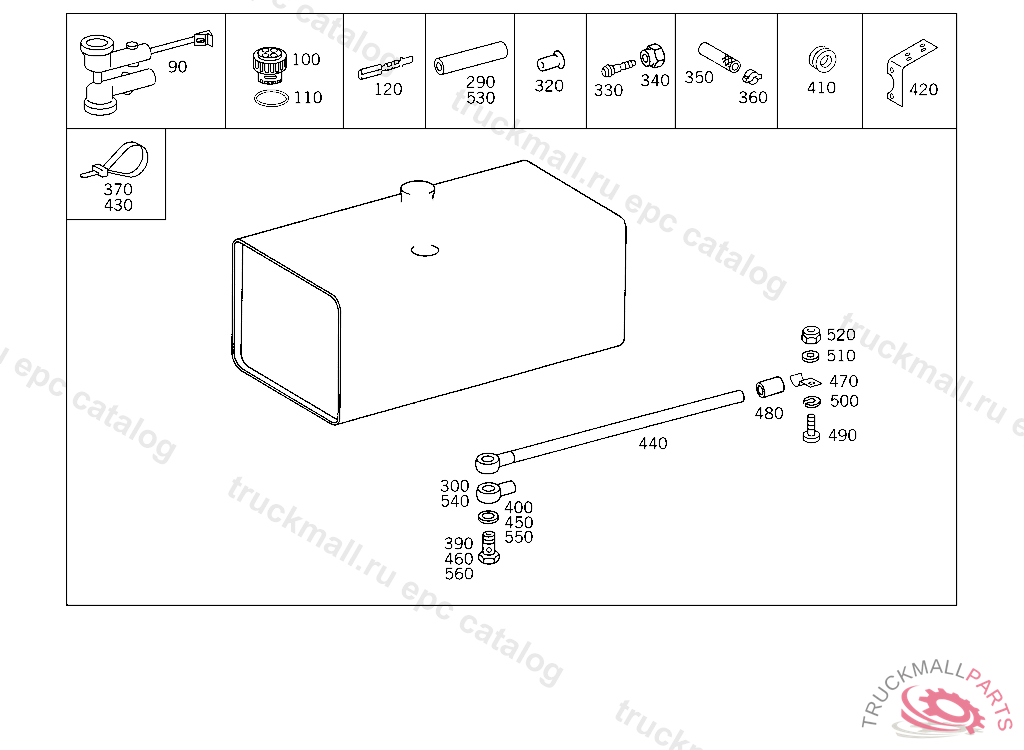

Поз.
Артикул
Описание
90
BOOT PLUG-IN CONNECTION,FUEL GAUGE SENSOR
100
PLUG SOCKET. PLUG HOUSING
110
CORE BUNDLE SEALING1.0-2.5 MM2
120
PLUG SOCKET. CONTAKT SOCKET
290
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
290
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
290
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
290
INSULATING HOSE
300
BANJO UNION , Replaced By: N000000000363
320
SLEEVE FEED
330
FITTING RETURN
340
NUT. UNION NUT RETURN
350
HOSE LEAK LINE
360
CLIP LEAK LINE
370
LOOM TIE LINE MOUNTING 280 MM
390
HOLLOW SCREW FUEL LINE TO FEED PUMP
390
HOLLOW SCREW , Replaced By: N915036010108
400
SEAL RING FUEL LINE TO FEED PUMP
410
GROMMET LINE MOUNTING 50/45 MM
420
BRACKET TRANSMISSION,REAR
430
LOOM TIE LINE MOUNTING
440
LINE FUEL COMPENSATING
450
SEAL RING FUEL LINE TO FEED PUMP
460
HOLLOW SCREW FUEL LINE TO FEED PUMP
460
HOLLOW SCREW , Replaced By: N915036010108
470
CLAMP FUEL LINE TO BRACKET
480
RUBBER PAD FUEL LINE TO BRACKET
490
SCREW CABLE ON REINFORCEMENT
500
LOCK WASHER STEP SWITCH
510
WASHER CABLE ON REINFORCEMENT
520
NUT BOOT
530
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
540
BANJO UNION , Replaced By: N000000000363
550
SEAL RING FUEL LINE TO FEED PUMP
560
HOLLOW SCREW FUEL LINE TO FEED PUMP
560
HOLLOW SCREW , Replaced By: N915036010108
