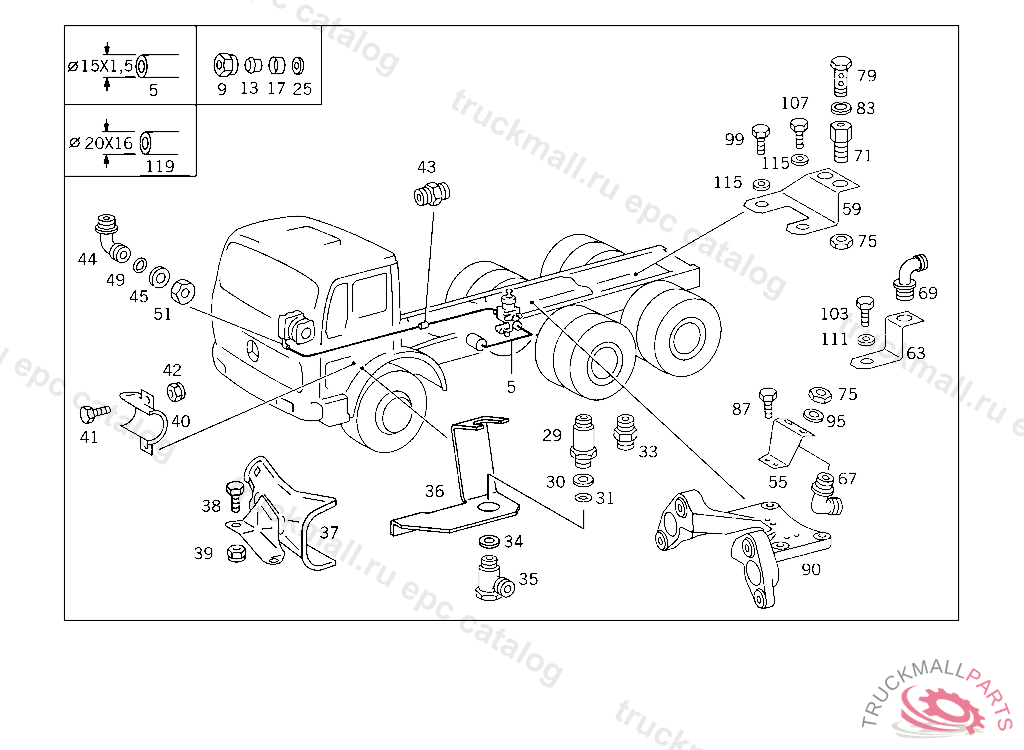

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
9
UNION NUT LINE CONNECTION
9
UNION NUT BUTT SCREW CONNECTION
13
GLAND LINE CONNECTION
17
THRUST RING BUTT SCREW CONNECTION
25
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
25
SEAL RING , Replaced By: N007603012121
29
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
29
FITTING AIR RESERVOIR,CONNECTION: "13"
29
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
29
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
29
FITTING AIR RESERVOIR,CONNECTION: "13"
29
FITTING FRONT AXLE CONNECTION
29
FITTING FROM SEPARATION POINT TO RELAY VALVE, TO BE ADAPTED DURING ASSEMBLY
30
THRUST RING CHECK VALVE TO AIR RESERVOIR
30
THRUST RING CHECK VALVE TO AIR RESERVOIR
30
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
31
O-RING CHECK VALVE TO AIR RESERVOIR
31
O-RING CHECK VALVE TO AIR RESERVOIR
33
FITTING FRONT AXLE CONNECTION
33
FITTING FRONT AXLE CONNECTION
33
FITTING FRONT AXLE CONNECTION
33
FITTING LINE MOUNTING
33
FITTING FRONT AXLE CONNECTION
33
FITTING FRONT AXLE CONNECTION
34
SEAL RING LINE CONNECTION
35
SCREW CONNECTION RETURN, FROM STEERING TO OIL TANK
36
BRACKET FRONT AXLE CONNECTION
36
BRACKET FRONT AXLE CONNECTION
37
BRACKET RIGHT, TO BE ADAPTED DURING ASSEMBLY
38
SCREW PIPE CLAMP
38
SCREW , Replaced By: N304017008021
39
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
39
NUT , Replaced By: N913004008001
40
BRACKET RIGHT COMPRESSED AIR LINES
41
SCREW BRACKET TO SIDE MEMBER
42
NUT BRACKET TO SIDE MEMBER
42
NUT , Replaced By: N910113014001
43
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
44
ELBOW FITTING BUTT SCREW CONNECTION "20",5 271048
45
THRUST RING SUCTION LINE TO OIL PUMP
49
SEAL RING LINE CONNECTION
51
NUT SUCTION LINE TO OIL PUMP
55
BRACKET LINE MOUNTING
59
BRACKET COMPRESSED AIR LINE
63
BRACKET COMPRESSED AIR LINE, NOT USED
67
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
67
ELBOW FITTING , Replaced By: A0004294638
69
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
69
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 350368
71
ADAPTER FITTING LINE MOUNTING
71
ADAPTER FITTING LINE MOUNTING
71
ADAPTER FITTING LINE MOUNTING M 22X1,5,5 418584
75
NUT CHECK VALVE TO AIR RESERVOIR
79
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
83
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
87
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
87
SCREW , Replaced By: N304017008016
90
BEARING BRACKET REAR AXLE,5 263624
90
BEARING BRACKET REAR AXLE
90
BEARING BRACKET REAR AXLE
95
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
95
SEAL RING , Replaced By: N007603012121
99
SCREW BRACKET TO REAR AXLE M 20X1.5X55
103
SCREW FOLLOWER FLANGE TO PROPELLER SHAFT
103
SCREW , Replaced By: N308676016004
107
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X50
107
SCREW , Replaced By: N308676016007
111
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
115
WASHER SUPPORT TO FRAME
119
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
999
THRUST RING THROTTLE VALVE,CONNECTIONS: "1,2"
999
MUFFLER , Replaced By: A0004302370
999
MUFFLER BRAKE PRESSURE REGULATOR BREATHING,5 419692
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
MUFFLER TRAILER CONTROL VALVE
999
REPAIR KIT PRESSURE LIMIT VALVE
999
REPAIR KIT SEAL RING BOSCH,209
999
SWITCH SUPPLY PRESSURE CONTROL
999
VALVE (TWO-/TWO-WAY VALVE)
999
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
REPAIR KIT , Replaced By: A0004301107
999
ELBOW FITTING , Replaced By: A0049906471
999
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
VALVE (PRESSURE LIMIT VALVE)
999
PRESSURE REGULATORBOSCH
999
PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
PRESSURE REGULATORKNORR 90310
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING, Replaced By: A9329970772
999
VALVE (THROTTLE VALVE)
999
ELBOW FITTING CHECK VALVE TO RELAY VALVE
999
SEAL RING THROTTLE VALVE,CONNECTIONS: "1,2"
999
GROMMET 2/2-WAY VALVE,CONNECTION: "1,2",5 548796
999
BRACKET METAL SPRING BELLOWS
999
BRACKET RELAY VALVE, NOT USED
999
FITTING (DELIVERY LINE),FROM PUMP TO STEERING
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
999
NUT SPRING-LOADED PUSH ROD
999
CLAMP LINE MOUNTING
