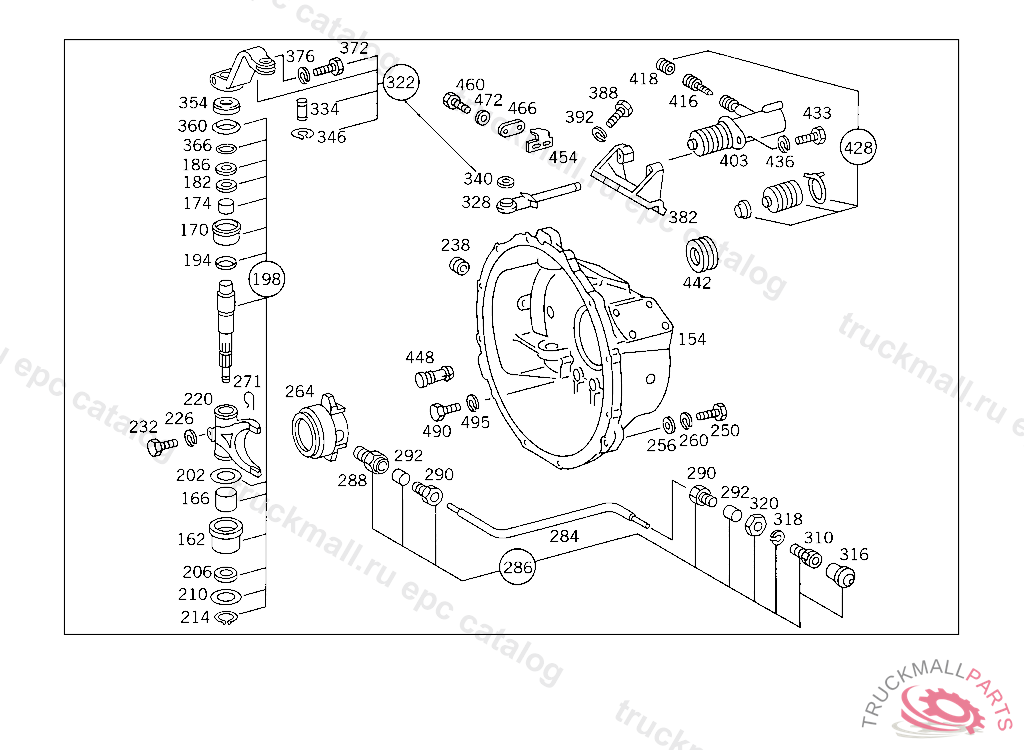

Поз.
Артикул
Описание
154
HOUSING BELL HOUSING WITH BUSHINGS
162
BUSHING RELEASE SHAFT,BOTTOM
166
BUSHING RELEASE SHAFT,BOTTOM 24X27 MM
170
BUSHING RELEASE SHAFT,TOP
174
BUSHING RELEASE SHAFT,TOP 35X39 MM
182
SEAL RING RELEASE SHAFT,TOP
186
SEAL RING RELEASE SHAFT,BOTTOM 40X52X11 MM
194
COVER PLATE RELEASE SHAFT,TOP
198
SHAFT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 285575, Replaced By: A3852500014
198
SHAFT (PARTS KIT),RELEASE SHAFT
202
WASHER AS REQUIRED 0.90 MM
202
WASHER AS REQUIRED 1.10 MM
202
WASHER AS REQUIRED 1.20 MM
202
WASHER AS REQUIRED 1.3 MM
202
WASHER AS REQUIRED 0.80 MM
202
WASHER AS REQUIRED 1.00 MM
206
SEAL RING BOTTOM
210
SPACER WASHER RELEASE SHAFT,BOTTOM
214
LOCK RING RELEASE SHAFT,BOTTOM
220
RELEASE LEVER CLUTCH ACTUATION
226
LOCK WASHER FITTING TO BRACKET
232
SCREW RELEASE LEVER TO SHAFT, 024,026,027,028,121,122 5 095724 065,131,132 5 104252
232
SCREW , Replaced By: N304017012002
238
PLUG BELL HOUSING
238
PLUG BELL HOUSING
250
SCREW RADIATOR M 10X45
256
WASHER RADIATOR TO RUBBER MOUNTING
256
WASHER , Replaced By: N000125010532
260
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
264
RELEASE BEARING CLUTCH ACTUATION
264
RELEASE BEARING CLUTCH ACTUATION
271
SPRING RELEASE BEARING TO RELEASE LEVER
284
HOSE RELEASE COLLAR LUBRICATION 220 MM
286
GREASE NIPPLE (PARTS KIT) RELEASE BEARING LUBRICATION
288
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
290
UNION SCREW RELEASE COLLAR LUBRICATION
292
DOUBLE TAPER RING RELEASE COLLAR LUBRICATION
310
GREASE NIPPLE RELEASE COLLAR LUBRICATION
316
CAP RELEASE BEARING LUBRICATION
318
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
320
NUT RELEASE BEARING LUBRICATION
320
NUT , Replaced By: N308675014002
320
NUT , Replaced By: N308675014000
322
LEVER (PARTS KIT),CLUTCH ACTUATION
328
ROD END CLUTCH ACTUATION
334
PIN CLUTCH ACTUATION
340
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0019972141
340
SEAL RING CLUTCH ACTUATION
346
LOCK RINGTO 000 553 37 01,000 553 39 01,
354
COVER RELEASE SHAFT,TOP
372
SCREW PIPE ELBOW TO BRACKET M 10X50
372
SCREW , Replaced By: N304017010053
372
SCREW , Replaced By: N304017010030
376
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
382
BRACKET CLUTCH ACTUATION
388
SCREW BRACKET TO SIDE MEMBER
388
SCREW , Replaced By: N304017010002
392
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
403
SLAVE CYLINDER CLUTCH ACTUATION
403
SLAVE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 669429, Replaced By: A0022950407
403
SLAVE CYLINDER CLUTCH ACTUATION
416
VALVE CLUTCH SLAVE CYLINDER
418
PROTECTIVE CAP , Replaced By: A0004217187
418
PROTECTIVE CAP ,5 962906
428
REPAIR KIT , Replaced By: A0002900911
428
REPAIR KIT CLUTCH SLAVE CYLINDER
433
SCREW , Replaced By: N304017010002
433
SCREW BRACKET TO SIDE MEMBER
436
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
442
PLUG BELL HOUSING
448
PLUG BELL HOUSING
490
SCREW , Replaced By: N308676018010
490
SCREW SUPPORTING ARM TO CYLINDER CRANKCASE M 18X60
495
LOCK WASHER BELL HOUSING TO TRANSMISSION
999
LEVER CLUTCH ACTUATION,4 601610
