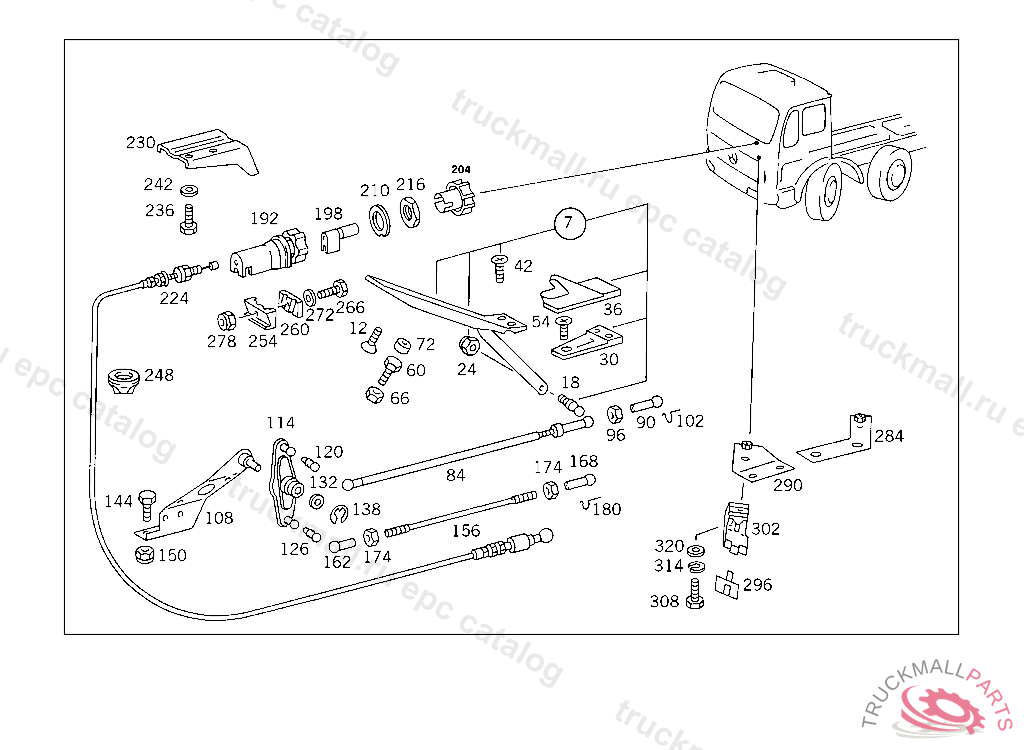

Поз.
Артикул
Описание
7
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
12
SCREW ACCELERATOR PEDAL
18
BALL PIVOT LOAD SENSOR
24
NUT , Replaced By: N913004006001
24
NUT PUMP TO BRACKET
30
SHIM ACCELERATOR PEDAL
36
BOOT ACCELERATOR PEDAL
42
SCREW ACCELERATOR PEDAL TO CAB M 6X25
54
SCREW ACCELERATOR PEDAL TO FLOOR PLATE M 6X20
60
SCREW VALVE TO BRACKET, Replaced By: N304014008002
60
SCREW VALVE TO BRACKET
66
NUT
72
STOP ACCELERATOR PEDAL
84
ROD LOAD SENSOR CONTROL
90
BALL SOCKET PULL ROD TO LEVER
96
NUT BALL PIVOT TO LEVER
102
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
108
BEARING BRACKET INTERMEDIATE BEARING
114
LEVER INTERMEDIATE BEARING
120
BALL STUD. BALL PIVOT TOP B10X4,5 MM
126
BALL PIVOT BOTTOM B13X5 MM
132
COVERING INTERMEDIATE BEARING
138
LOCK PLATE INTERMEDIATE BEARING
144
SCREW END PIECE TO EXHAUST PIPE M 10X25
150
NUT , Replaced By: N910113010000
150
NUT STRAP TO BRACKET
156
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
162
BALL SOCKET ROD TO BALL PIVOT
168
BALL SOCKET ROD TO BALL PIVOT
174
NUT
180
SECURING CLIP. CIRCLIP
192
MANUAL CONTROL IDLING ADJUSTMENT
198
GUIDE MANUAL CONTROL
204
KNOB MANUAL CONTROL
210
FITTED WASHER MANUAL CONTROL
216
NUT MANUAL CONTROL
224
WIRE CABLE IDLING ADJUSTMENT
230
BRACKET
236
SCREW COVER PLATE TO COVER PLATE M 6 X 12
236
SCREW , Replaced By: N304017006018
242
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
242
WASHER COMPRESSED AIR LINE TO BRACKET
248
GROMMET WIRE CABLE THRU WINDOW SILL
254
CLAMPING PIECE WIRE CABLE TO FIRE WALL
260
CLAMPING PIECE CABLE PULL TO FIRE WALL
266
SCREW CONNECTOR
278
NUT , Replaced By: N913004006001
278
NUT PUMP TO BRACKET
284
BRACKET CABLE TO RADIATOR MOUNTING
296
COVER CABLE TO BRACKET
302
CLAMPING PIECE CABLE TO BRACKET
308
SCREW CAB FLOOR COVERING M 6X25
320
WASHER COMPRESSED AIR LINE TO BRACKET
320
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
PAD ACCELERATOR PEDAL
999
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
999
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
